Specifications
Brand Name :
FANBAO
Model Number :
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10.6-952000NM
Input Speed :
750-1500rpm
Output Speed :
14-280rpm
Warranty :
1 year
Color :
customer Requirement
Ratio :
3.77~276.77
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Flange, hollow shaft, solid shaft
Certificate :
ISO9001. CE
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Material :
Gear: 20CrMnTi Housing: HT250 high strength cast iron
Description

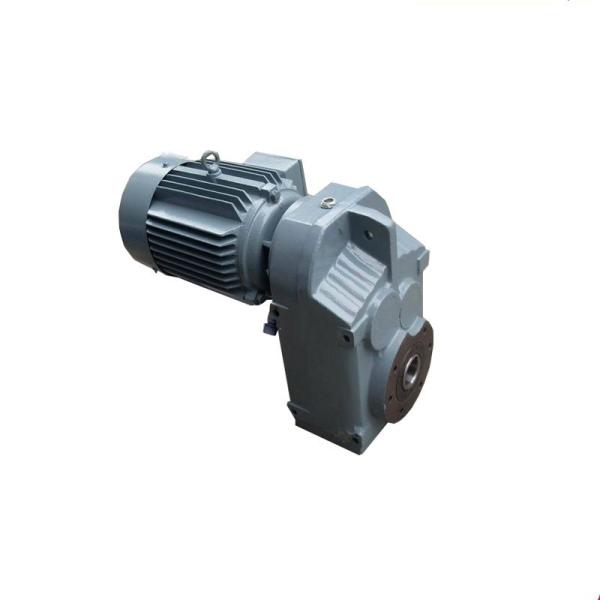

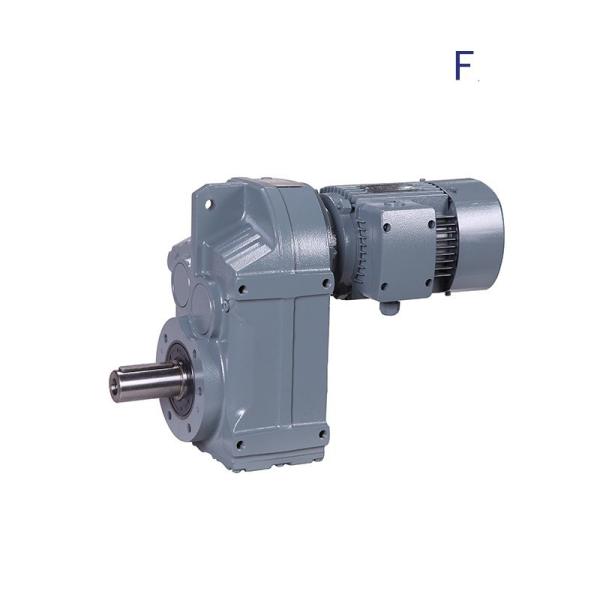

Helical Gearbox Reducer F77 Series Parallel Axis Helical Gear Reducer with 4KW motor

Description :

1. Modular design, compact structure. Extra-slim parallel shaft helical gearmotors are the perfect solution when space is limited
2. F series parallel shaft helical gearmotors are typically used in conveyors and materials processing applications
3. Multi-stage(2 or 3 stages) gear units for low output speed
4. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
5. Can be combined with other types of gearboxes (Such as R Series, UDL Series)
6. Optional mounting options (foot-mounted, flange-mounted, shaft-mounted

7. Housing: Cast Iron
8. Gears: Hardened Helical Gears
9 Input Configurations:
Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange
10 . Applicable Motors:
Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
11. Output Configurations:
Solid Shaft Output
Hollow Shaft Output

Apart of type specification :

SIZE 37 47 57 67 77 87 97 107 127 157
DF DFA DFF DKAZ DFAF DFAZ
INPUT POWER RATING(KW) 0.18-0.30 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 2.2-45 7.5-90 11-260
RATIO 3.81-128.51 5.06-189.39 5.18-199.70 4.21-228.99 4.20-271.92 4.12-270.64 4.68-270.64 6.20-255.25 4.63-172.33 12.07-270.18
MAX TORQUE(N.m) 200 400 600 820 1500 3000 4300 7840 12000 18000
WEIGHT(KG) 13 18 34 55 90 150 260 402 700 950

Application :
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.

Mounting position and Position of the motor terminal box :

Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW

Why choose us :

Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KWParallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KWParallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW

F series process :
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW
Packing and shipping way :
Parallel Axis Helical Speed Multiplier Gearbox Reducer Reduction Gear Motor 4KW
