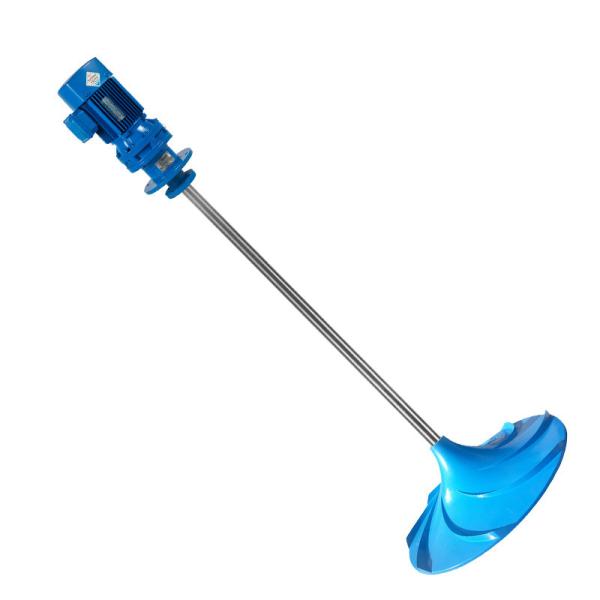

Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks
Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks
Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks
Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks
Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks
Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks
Specifications
Brand Name :
FANBAO
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets/month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
product name :
Sewage treatment plant mixer aeration tank digester tank electric Hyperboloid Submersible Mixer
motor :
4-7.5kw
Function :
Water Treatment Systerm
Color :
blue
Applicable Industries :
sewage treatment, environmental protection
Description

High Performance Submersible Sewage Low Speed Hyperboloid Mixer For Wastewater Treatment Plant

Description :

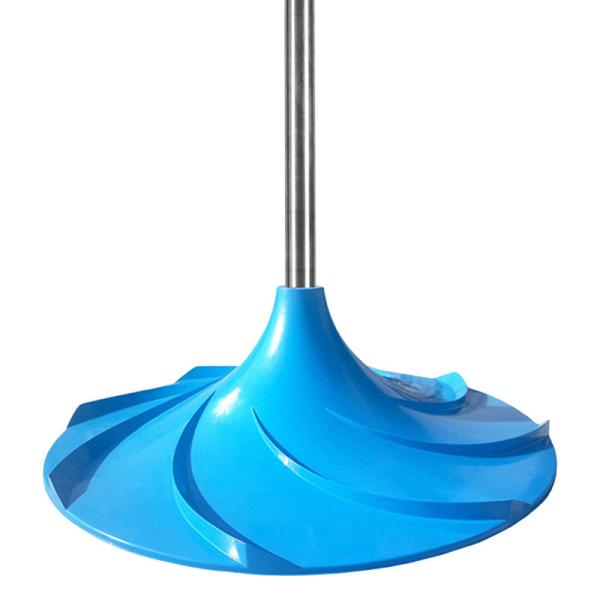

The Hyperboloid Agitator Mixers feature a uniquely designed impeller with a hyperbolic upper surface, created by the rotation of a generatrix around the impeller body line. This distinctive structure, combined with its strategic placement near the tank, enhances its effectiveness in preventing settling and promoting extensive water exchange. Primarily engineered for water and wastewater treatment applications, this mixer offers superior performance.

Moreover, the Hyperboloid Industrial Mixer presents an optimal solution for mixing and agitating processes where solid, liquid, and gas components necessitate thorough intermingling. It excels in scenarios such as precipitation tanks, equalization tanks, anaerobic tanks, nitration tanks, and denitrifying tanks. Widely utilized across wastewater treatment, chemical, energy, and light industries, this mixer showcases versatility and efficiency in diverse operational settings.

Working Conditions.
1,The temperature of the liquid is generally 0-42°C; 2,The PH range: 5-9; 3,The density of the liquid does not exceed 1150kg/m3; 4,The maximum working depth generally does not exceed 10 meter; 5,The minimum working depth is not less than 0.9 meter; 6,Interval start time is not less than 10min.

Advantage

Complete mixing, high efficiency, low energy consumption and no dead angle. Simple structure, easy to install and maintain. Used for various water treatment processes, more superior mixing effect. Large specific surface area impeller with small motor, more energy saving. The stirring shaft is spray-coated with fiberglass material, which is light and corrosion-resistant.

Specification for mixing agitator

Model
FB500
FB2000
FB2500
Impeller diameter(mm)
1500
2000
2500
Rotary speed(rpm)
30-60rpm
20-40rpm
20-40rpm
Power(kW)
1.5-4kw
3-5.5KW
4-7.5kw
Service area(m)
3-6m
6-14m
10-18

Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks

Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks

Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks

selection method:according to the physical characteristics of the mixing medium,select the agitator type; Determine the motor power ,mixing speed ,agitator diameter ,according to the requirements if flow state,mixing time,
settling speed,and Dispersity; Determine the reducer model based on motor power and mixing speed;

Determine thenumber of agitator layers based on the container size.

Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks

Low Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanksLow Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanksLow Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanksLow Speed Electric Hyperboloid Air Agitator Mixer For Wastewater Treatment Plant tanks
