OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage
OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage
Specifications
Brand Name :
FANBAO
Model Number :
IBC
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Application :
stortage and mixing
Material :
PE
tank Color :
white/blue/yellow/others
Barrel Volume (L) :
1000L
Applicable Industries :
Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Product name :
HDPE 1000 Litre IBC Tote Plastic Tank IBC Drum For Waste Water Storage
Description

High quality Chemical Plastic IBC Tank 1000L liquid tank for chemical Storage

Description :

Intermediate bulk containers (also known as IBC tank, IBC tote, IBC, or pallet tank) are industrial-grade containers engineered for the mass handling, transport, and storage of liquids, semi-solids, pastes, or solids.[1] The two main categories of IBC tanks are flexible IBCs and rigid IBCs.[2] Many IBCs are reused or repurposed.
* Pallet Type : 4 Way Composite Pallet

* Approved for filling products of a maximum density of 1.9
* Perfectly suited for high bay warehousing
* Can be stacked up to 4-high
* Reinforced, warp resistant tubular steel grid jacket
* Additional corner guards to protect the inner container
* Available in a variety of equipment package

IBC tank specification :
Product
number		 capacity Length
(mm)		 width
(mm)		 height
(mm)		 caliber
(mm)		 Wall
thickness
(mm)		 weight
(KG)		 volume
(m³)

500L		 500L Liner 960 580 970 150 4 15 0.55
500L Full set 1000 640 1150 150 4 41 0.75
Horizontal
500L Liner
1140
950
550		 150/310/
450/650
4
18
0.6
Horizontal
500L Full set
1200
1000
700		 150/310/
450/650
4
0.85

1000L		 Blow molding

1000L Liner		 1150 960 950 150 2
15		 1.1
Blow molding
1000L Full set		 1200 1000 1150 150 2
55		 1.4
Rotomolding
1000L Liner
1150
960
950
150/310/
450/650
5
26
1.1
Rotomolding

1000LFull set
1200
1000
1150		 150/310/
450/650
5
66
1.4

1500L
Rotomolding
1500L Liner
1150
960
1490
150
5
50
1.65
Rotomolding
1500L Full set
1200
1000
1620
150
5
1.95

valve		 DN50 Can also be made flat without valve
DN80 Can also be made flat without valve

IBC tank color choise :

OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage

OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage

OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage

IBC TANK add retractable mixer / agitator :

OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage
OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage
Unfolded diameter Inner hole
diameter		 Shrink diameter Blade thickness Blade width
70mm 8mm 32mm 2mm 10mm
100mm 8mm 32mm 2mm 10mm
120mm 8mm 32mm 2mm 10mm
200mm 12mm 55mm 3mm 25mm
200mm 16mm 55mm 3mm 25mm
250mm 12mm 55mm 3mm 25mm
250mm 16mm 55mm 3mm 25mm
300mm 12mm 55mm 3mm 25mm
300mm 16mm 55mm 3mm 25mm
350mm 20mm 98mm 4mm 40mm
350mm 25mm 98mm 4mm 40mm
400mm 20mm 98mm 4mm 40mm
400mm 25mm 98mm 4mm 40mm
500mm 30mm 98mm 5mm 40mm
500mm 35mm 98mm 5mm 40mm
600mm 50mm 113mm 5mm 40mm

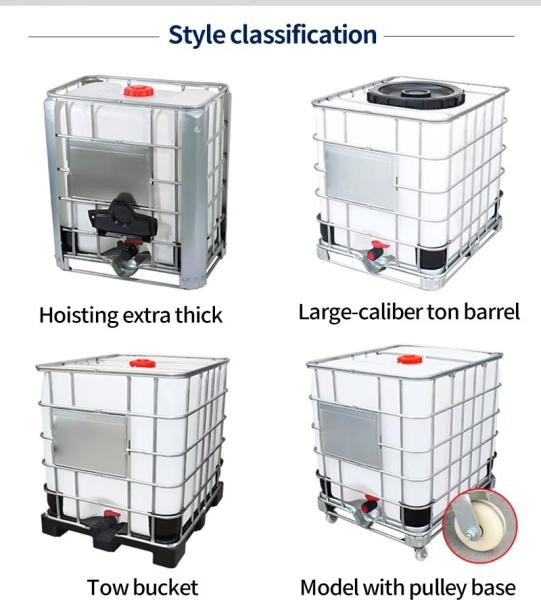

Four types of IBC TANK for your choise
hoisting extra thick large caliber ton barrel tow bucket model with pulley base
OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage
OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage
OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage
OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid StortageOEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid StortageOEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid StortageOEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage
OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage
OEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid StortageOEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid StortageOEM Plastic IBC Tank Agitators Chemical Tote Mixer 300 Gallon For Liquid Stortage
