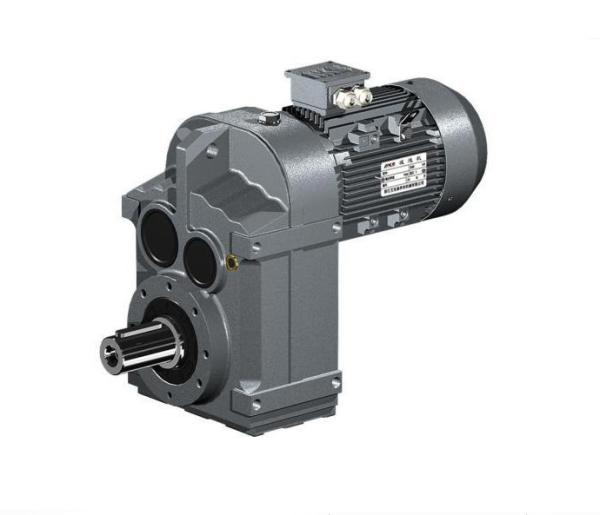

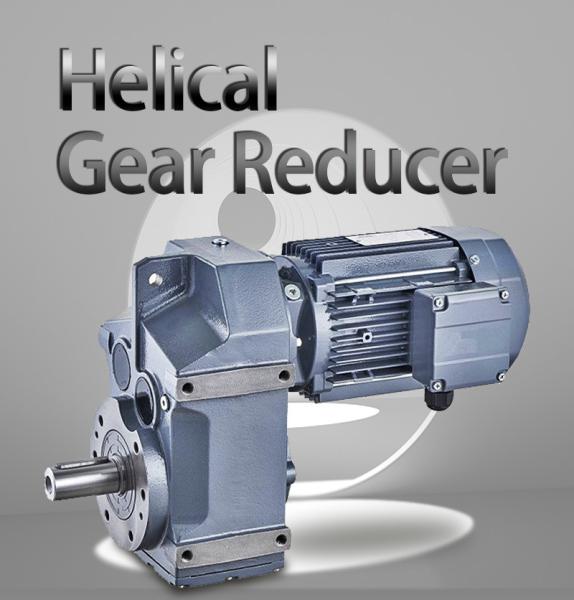

OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator
OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator
OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator
OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator
OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator
OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator
Specifications
Brand Name :
FANBAO
Model Number :
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10.6-952000NM
Input Speed :
750-1500rpm
Output Speed :
14-280rpm
Warranty :
1 year
Color :
customer Requirement
Ratio :
3.77~276.77
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Flange, hollow shaft, solid shaft
Certificate :
ISO9001. CE
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Material :
Gear: 20CrMnTi Housing: HT250 high strength cast iron
product name :
F Series Parallel Helical 1:80 Ratio Speed Reducer Gearbox For Bucket Elevator
Description

F Series Parallel Helical 1:80 Ratio Speed Reducer Gearbox For Bucket Elevator

Description :

F series parallel shaft helical gear reducer has the characteristics of small volume, light weight, large transfer torque, low
energy consumption, high efficiency, low temperature rise, strong load force and various structure forms. Suitable for different
installation conditions. it is Multi-stage(2 or 3 stages) gear units for low output speed
It can be combined with R series, K series, S series, etc. to obtain lower speed and greater torque.

Helical Gearbox Reducer F Series Gear Reducer, featuring a parallel output design,the combination of standardization and modularization allows
Optional mounting options (foot-mounted, flange-mounted, shaft-mounted)

Apart of type specification :

Size Shaft Dia. (mm) Center
Height		 Output
Flange
Dia. (mm)		 Power
(kw)		 Ratio Permissible
Torque
(n.m)		 Weight
(kgs)

Solid Hallow
37 φ25k6 φ30h7 76 φ110/160 0.18-3.0 3.81-128.51 200 13
47 φ30k6 φ35h7 77 φ120/200 0.18-3.0 5.06-189.39 400 18
57 φ35k6 φ40h7 93 φ155/250 0.18-5.50 5.18-199.70 600 34
67 φ40k6 φ40h7 97 φ155/250 0.18-5.50 4.21-228.91 820 55
77 φ50k6 φ50h7 121 φ170/300 0.37-11.0 4.30-281.71 1500 90
87 φ60m6 φ60h7 152 φ215/350 0.75-22.0 4.12-270.68 3000 150
97 φ70m6 φ70h7 178 φ260/450 1.10-30.0 4.68-280.76 4300 260
107 φ90m6 φ90h7 200 φ304/450 2.20-45.0 6.20-254.40 7840 402
127 φ110m5 φ100h7 236 φ350/550 7.5-90.0 4.63-172.17 12000 700
157 φ120m6 φ120h7 286 φ400/660 11.0-200.0 11.92-267.43 18000 950

Structure:

a.F—common shaft extension coupling parallel shaft helical gear reducer;
b.FA type—shaft-mounted parallel shaft helical gear reducer;
c.FF type—flanged parallel shaft oblique gear Gear reducer;
d.FAF type-shaft mounted flange type parallel shaft helical gear reducer.

Application :

Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.

Mounting position and Position of the motor terminal box :

OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator
OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator
OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket ElevatorOEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket ElevatorOEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator

Why choose us :

OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket ElevatorOEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket ElevatorOEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator

F series process :
OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator
Packing and shipping way :
OEM Parallel Shaft Helical Gear Reducer Gearmotor 1:80 Ratio For Bucket Elevator
