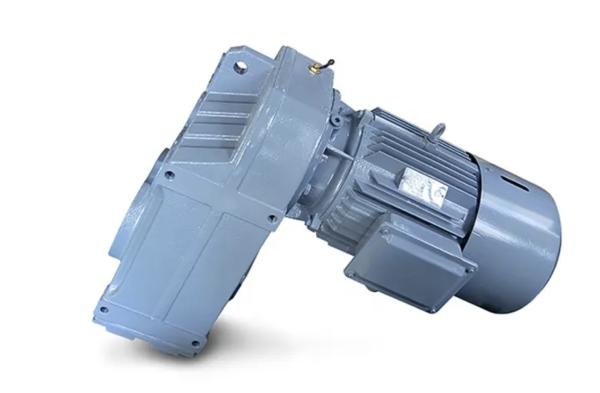

Boat Marine Bevel Helical Gear Reducer Hollow Shaft Motor Worm Gearbox
Boat Marine Bevel Helical Gear Reducer Hollow Shaft Motor Worm Gearbox
Boat Marine Bevel Helical Gear Reducer Hollow Shaft Motor Worm Gearbox
Boat Marine Bevel Helical Gear Reducer Hollow Shaft Motor Worm Gearbox
Boat Marine Bevel Helical Gear Reducer Hollow Shaft Motor Worm Gearbox
Boat Marine Bevel Helical Gear Reducer Hollow Shaft Motor Worm Gearbox
Specifications
Brand Name :
FANBAO
Model Number :
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10.6-952000NM
Input Speed :
750-1500rpm
Output Speed :
14-280rpm
Warranty :
1 year
Color :
customer Requirement
Ratio :
3.77~276.77
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Flange, hollow shaft, solid shaft
Certificate :
ISO9001. CE
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Material :
Gear: 20CrMnTi Housing: HT250 high strength cast iron
product name :

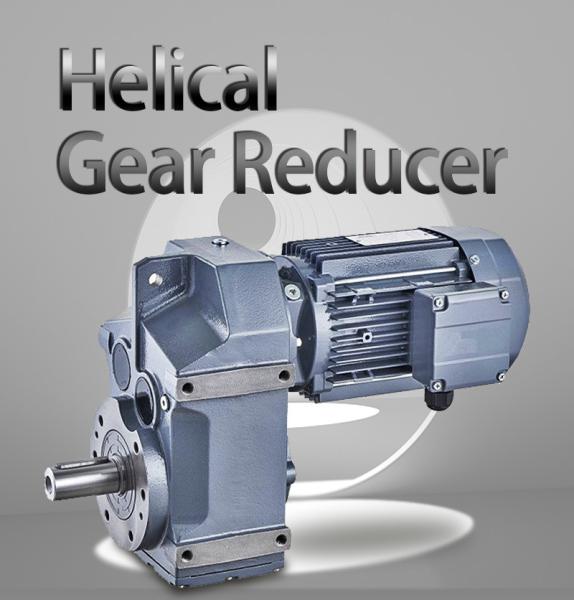

Helical gear Motor Speed reducer F Series Flange Mounted Parallel Shaft Parallel Geared Motor Helical Speed Reducer
Description

F series helical gearbox bevel gear box parallel shaft marine gearbox boat gearbox motor for agricultural machine

Description :

Helical Gearbox Reducer F Series Gear Reducer, featuring a parallel output design, compact structure, and high transmission torque for stable operation, low noise levels, and an extended service life. Choose from versatile installation methods such as base, hollow shaft, flange, torque arm, and small flange installations to suit your specific needs.

The basic type ensures that the secondary input and output rotate in the same direction, with the third level operating oppositely. For optimized F/R combinations, personalized consultation is recommended to maximize efficiency.

Select between hollow shaft or solid shaft output modes based on your requirements. Benefit from exceptional average efficiencies with the second stage achieving 96%, the third stage at 94%, and the F series/R series combination delivering 85% efficiency, ensuring top-notch performance and reliability.

Apart of type specification :

Model:
F series reducer
Installation:
F, FF, FA,FAF,FAZ
Motor:
factory equipped motor, Siemens, ABB, etc.
Ratio
3.81～281.71

Structure:

a.F—common shaft extension coupling parallel shaft helical gear reducer;
b.FA type—shaft-mounted parallel shaft helical gear reducer;
c.FF type—flanged parallel shaft oblique gear Gear reducer;
d.FAF type-shaft mounted flange type parallel shaft helical gear reducer.

Reducer model:

F37, F47, F57, F67, F77, F87, F97, F107, F127, F157
FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157
FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157
FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
FAZ37, FAZ47, FAZ57, FAZ67, FAZ77, FAZ87, FAZ97, FAZ107, FAZ127, FAZ157
FS37, FS47, FS57, FS67, FS77, FS87, FS97, FS107, FS127, FS157
F37R17, F47R17, F57R37, F67R37, F77R37, F87R57, F97R57, F107R77, F127R77, F107R77, F127R77, F127R87, F157R97
FAS37, FAS47, FAS57, FAS67, FAS77, FAS87, FAS97, FAS107, FAS127, FAS157
FA37R17, FA47R17, FA57R37, FA67R37, FA77R37, FA87R57, FA97R57, FA107R77, FA127R77, FA107R77, FA127R77, FA127R87, FA157R97
FFS37, FFS47, FFS57, FFS67, FFS77, FFS87, FFS97, FFS107, FFS127, FFS157
FF37R17, FF47R17, FF57R37, FF67R37, FF77R37, FF87R57, FF97R57, FF107R77, FF127R77, FF107R77, FF127R77, FF127R87, FF157R97
FAFS37, FAFS47, FAFS57, FAFS67, FAFS77, FAFS87, FAFS97, FAFS107, FAFS127, FAFS157
FAF37R17, FAF47R17, FAF57R37, FAF67R37, FAF77R37, FAF87R57, FAF97R57, FAF107R77, FAF127R77, FAF107R77, FAF127R77, FAF127R87,
FAF157R97
FAZS37, FAZS47, FAZS57, FAZS67, FAZS77, FAZS87, FAZS97, FAZS107, FAZS127, FAZS157
FAZ37R17, FAZ47R17, FAZ57R37, FAZ67R37, FAZ77R37, FAZ87R57, FAZ97R57, FAZ107R77, FAZ127R77, FAZ107R77, FAZ127R77, FAZ127R87,
FAZ157R97
Application :
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.
