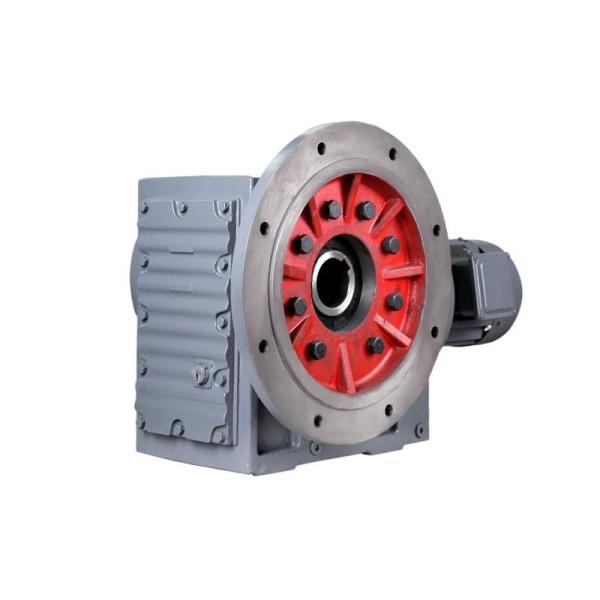

Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel
Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel
Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel
Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel
Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel
Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel
Specifications
Brand Name :
FANBAO
Model Number :
K KA KF KAF
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series gearbox reducer with AC motor 380V
Output Torque :
50000N.m
Input Speed :
600~1800rpm
Output Speed :
280 rpm
Weight (KG) :
60kg
Warranty :
1 year
Color :
customer Requirement
Ratio :
5~180
Size :
K KA KF KAF KAZ KAT KAB
Efficiency :
over 95%
Gear material :
20CrMnTi
Housing material :
HT250 high-strength cast iron
Input ways :
Motor input, AM (IEC) flange input, and shaft input
output way :
solid shaft output or hollow shaft output
Motor type :
AC motor
Description

High Torque K Series 90 Degree Gear Motor Reducer

Description :

he design concepts of these reducers focus on a combination of standardization and modularization, allowing for interchangeability with leading international brands while maintaining structural rigidity and compactness. Leveraging the high accuracy of helical gears, the reducers operate at 90% efficiency, offering increased stability and reduced noise levels. With three stages of reduction, they provide a wide ratio accommodation range from 1/8 to 1/215, surpassing worm gear reducers. These units support power ranges from 1/4hp up to 60hp, adapting to various requirements and applications. Constructed with 20CrMo alloy steel and carburizing heat treatment, the bevel and helical gears ensure enhanced performance. The 90° transmission and compact configuration minimize mounting space, offering flexibility in installation positions (M1~M6) as specified by customers. The products boast modern aesthetics while maintaining high rigidity, enabling easy connections with different motors or power sources and achieving various solutions for diverse needs. Additionally, they feature high strength, compact dimensions, multiple ratio options, flexible mounting arrangements, long service life, low noise levels, high efficiency (up to 95%),

K Series Helical Bevel Gearbox Connection code and form
Input power rating and maximum torque
Size 37 47 57 67 77 87 97 107 127 157 167 187

Structure		 DK DKA DKF DKAF DKAZ DKAT DKAB

input power
rating(kw		 0.18-
3.0		 0.18-
3.0		 0.18-
5.5		 0.18-
5.5		 0.37
1.1		 0.75-
22		 1.1-30 3-45 7.5-90 11-160 11-200 18.5-
200

Ratio		 5.36~
106.38		 5.81≈
131.87		 6.57~
145.15		 7.14~
144.79		 7.22-
192.18		 7.19~
192.27		 8.95-
175.47		 8.74
141.93		 8.68-
146.07		 12.66~
150.03		 17.35~
164.44		 17.97-
178.37

torgueNm		 200 400 600 820 1550 2700 4300 8000 13000 18000 32000 50000
Gear motor weight

Slze		 37 47 57 67 77 87 97 107 127 157 167 187
(kg)
Weight		 11 20 27 33 57 85 130 250 380 610 1015 1700
Thewelghts aremean values,only for relerence.
)Maximum torque means theblggest oneofthe maximum
torque relatedtothe dfferent ratiofor the specied size.

More reducer model for your choice :

K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187
KA37,KA47,KA57,KA67,KA77,KA87,KA97,KA107,KA127,KA157,KA167,KA187
KF37,KF47,KF57,KF67,KF77,KF87,KF97,KF107,KF127,KF157,KF167,KF187
KAF37,KAF47,KAF57,KAF67,KAF77,KAF87,KAF97,KAF107,KAF127,KAF157,KAF167,KAF187
KAZ37,KAZ47,KAZ57,KAZ67,KAZ77,KAZ87,KAZ97,KAZ107,KAZ127,KAZ157,KAZ167,KAZ187
KAT37,KAT47,KAT57,KAT67,KAT77,KAT87,KAT97,KAT107,KAT127,KAT157,KAT167,KAT187
KAB37,KAB47,KAB57,KAB67,KAB77,KAB87,KAB97,KAB107,KAB127,KAB157,KAB167,KAB187

Mounting position and Position of the motor terminal box :

Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy SteelCustomized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel
Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy SteelCustomized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy SteelCustomized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy SteelCustomized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel

Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy SteelCustomized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy SteelCustomized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel

Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy SteelCustomized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel

Application :
Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy SteelCustomized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel
K series process :
Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel
Packing and shipping way :
Customized Bevel Helical Gear Box Reducer Motor Reducer 20CrMo Alloy Steel
