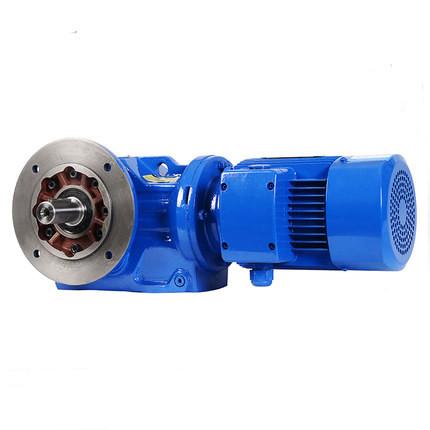

Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Specifications
Brand Name :
FANBAO
Model Number :
K KA KF KAF
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Helical-Bevel Gearmotor K Series gear reducer with AC motor Hard Face Gear Reducer
Output Torque :
50000N.m
Input Speed :
600~1800rpm
Output Speed :
280 rpm
Weight (KG) :
60kg
Warranty :
1 year
Color :
customer Requirement
Ratio :
5~180
Size :
K KA KF KAF KAZ KAT KAB
Efficiency :
over 95%
Gear material :
20CrMnTi
Housing material :
HT250 high-strength cast iron
Input ways :
Motor input, AM (IEC) flange input, and shaft input
output way :
solid shaft output or hollow shaft output
Motor type :
AC motor
Description

Customization Heavy Duty Hard Tooth Reducer Speed Gearbox Bevel Helical Horizontal Installation Position

Description :

The K series reducer, a gear mechanism designed to decrease motor speed and enhance output torque, employs advanced gear meshing principles within a sophisticated retardation mechanism. It finds application in various sectors such as food processing, construction, wood processing, conveyors, agriculture, and mineral machinery.

Product Features:

  • Built on a modular design, the K series helical gear reducers offer versatility in motor compatibility and power input connections, facilitating seamless integration with different machinery types.
  • Notable for high efficiency and power savings, these reducers are cost-effective with minimal maintenance requirements.
  • With excellent sealing properties, they cater to a wide range of industrial applications, providing robust support for heavy loads, stable transmission, and low noise levels.

Production Processes:

  • Box Processing:
    Mechanical mold modeling → Production line casting → Artificial aging treatment → Shot peening → Machining center processing → Three-coordinate detector inspection

  • Gear Processing:
    Forging → Normalizing → Roughing → Finishing car → Hobbing → Tooth end chamfering → Carburizing and quenching (HRC58-62) → Shot blasting → End face and inner hole grinding → Tooth grinding → Precision inspection → Wire cutting keyway → Magnetic particle inspection → Ultrasonic cleaning and rust prevention

These streamlined processes ensure the high quality and precision of our gear reducers, meeting the stringent requirements of diverse industries.

K Series Helical Bevel Gearbox Connection code and form
Input power rating and maximum torque
Size 37 47 57 67 77 87 97 107 127 157 167 187

Structure		 DK DKA DKF DKAF DKAZ DKAT DKAB

input power
rating(kw		 0.18-
3.0		 0.18-
3.0		 0.18-
5.5		 0.18-
5.5		 0.37
1.1		 0.75-
22		 1.1-30 3-45 7.5-90 11-160 11-200 18.5-
200

Ratio		 5.36~
106.38		 5.81≈
131.87		 6.57~
145.15		 7.14~
144.79		 7.22-
192.18		 7.19~
192.27		 8.95-
175.47		 8.74
141.93		 8.68-
146.07		 12.66~
150.03		 17.35~
164.44		 17.97-
178.37

torgueNm		 200 400 600 820 1550 2700 4300 8000 13000 18000 32000 50000
Gear motor weight

Slze		 37 47 57 67 77 87 97 107 127 157 167 187
(kg)
Weight		 11 20 27 33 57 85 130 250 380 610 1015 1700
Thewelghts aremean values,only for relerence.
)Maximum torque means theblggest oneofthe maximum
torque relatedtothe dfferent ratiofor the specied size.

Mounting position and Position of the motor terminal box :

Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy DutyHard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy DutyHard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy DutyHard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty

Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy DutyHard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty

Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy DutyHard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty

Application :
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy DutyHard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
K series process :
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Packing and shipping way :
Hard Tooth Bevel Helical Speed Reducer Gearbox Horizontal Heavy Duty
Why choose us ?
1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
