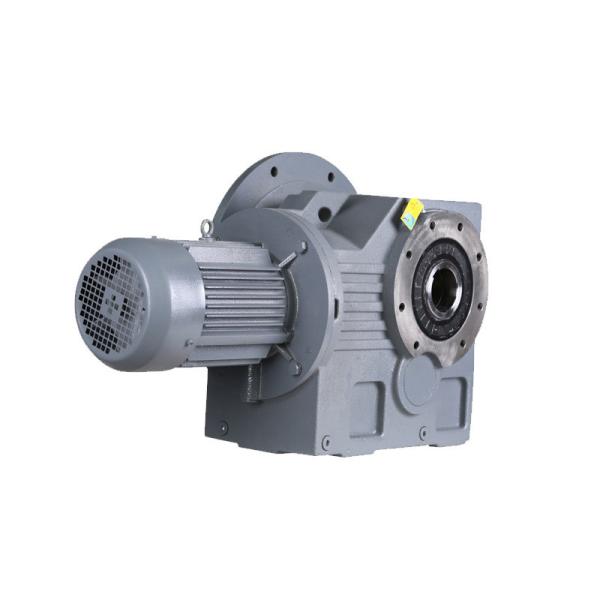

DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage
DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage
DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage
DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage
DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage
DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage
Specifications
Brand Name :
FANBAO
Model Number :
K KA KF KAF
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series gearbox reducer with AC motor 380V
Output Torque :
50000N.m
Input Speed :
600~1800rpm
Output Speed :
14-280rpm
Weight (KG) :
80kg
Warranty :
1 year
Color :
customer Requirement
Ratio :
7.5~100
Size :
K KA KF KAF KAZ KAT KAB
Efficiency :
over 95%
Gear material :
20CrMnTi
Housing material :
HT250 high-strength cast iron
Input ways :
Motor input, AM (IEC) flange input, and shaft input
output way :
solid shaft output or hollow shaft output
Description

Gearbox Stepper Motor Gear Pull Reducer K Series Helical Bevel Geared Motor

Description :

The high degree of modularity of helical bevel gear drives allows it to be completely interchangeable with CM worm gear boxes.
It is possible to set up the version required using output flanges, output shafts and optional torque arms. helical bevel gear motors consist of AC motor and helical bevel gear drives
Common features of all K series helical bevel gear reducers range are:

Ground-hardened helical gears.
Permanent synthetic oil long-life lubrication.
Input flexible coupling available
High modular design.
Efficiency and save power.
Save cost and low maintenance.
Excellent sealing, wide range of industry application.
High loading support, stable transmitting and low noise level.

K Series Helical Bevel Gearbox Connection code and form
Input power rating and maximum torque
Size 37 47 57 67 77 87 97 107 127 157 167 187

Structure		 DK DKA DKF DKAF DKAZ DKAT DKAB

input power
rating(kw		 0.18-
3.0		 0.18-
3.0		 0.18-
5.5		 0.18-
5.5		 0.37
1.1		 0.75-
22		 1.1-30 3-45 7.5-90 11-160 11-200 18.5-
200

Ratio		 5.36~
106.38		 5.81≈
131.87		 6.57~
145.15		 7.14~
144.79		 7.22-
192.18		 7.19~
192.27		 8.95-
175.47		 8.74
141.93		 8.68-
146.07		 12.66~
150.03		 17.35~
164.44		 17.97-
178.37

torgueNm		 200 400 600 820 1550 2700 4300 8000 13000 18000 32000 50000
Gear motor weight

Slze		 37 47 57 67 77 87 97 107 127 157 167 187
(kg)
Weight		 11 20 27 33 57 85 130 250 380 610 1015 1700
Thewelghts aremean values,only for relerence.
)Maximum torque means theblggest oneofthe maximum
torque relatedtothe dfferent ratiofor the specied size.

Mounting position and Position of the motor terminal box :

DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stageDKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage
DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stageDKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stageDKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage

DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stageDKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stageDKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage

DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stageDKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage

Application :
DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stageDKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage
R series process :
DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage
Packing and shipping way :
DKAB Parallel Shaft Helical Gearmotor Stepper Pull Reducer single stage
