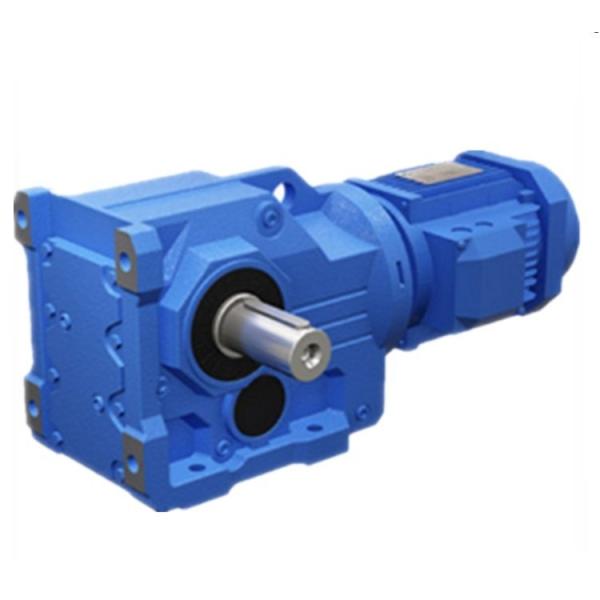

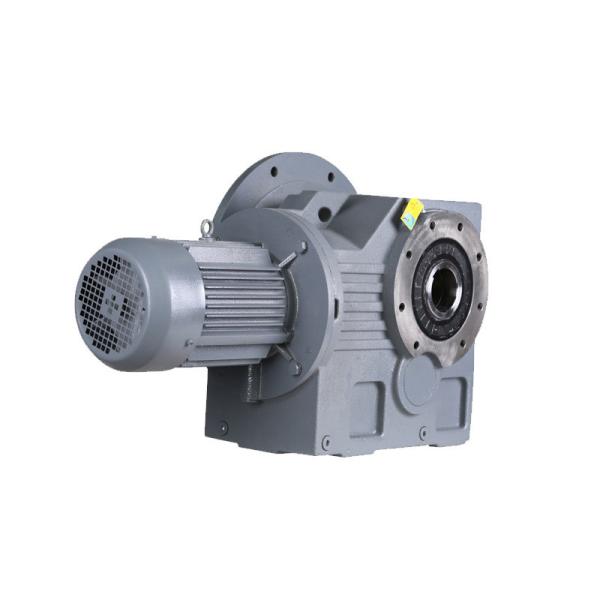

High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
Specifications
Brand Name :
FANBAO
Model Number :
K KA KF KAF
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Helical
Output Torque :
50000N.m
Input Speed :
600~1800rpm
Output Speed :
14-280rpm
Weight (KG) :
80kg
Warranty :
1 year
Color :
customer Requirement
Ratio :
7.5~100
Size :
K KA KF KAF KAZ KAT KAB
Efficiency :
over 95%
Gear material :
20CrMnTi
Housing material :
HT250 high-strength cast iron
Input ways :
Motor input, AM (IEC) flange input, and shaft input
output way :
solid shaft output or hollow shaft output
Description

High Torque K Series Helical Bevel Speed Reducer Gear Boxes for Output Flange Geared Motor

Description :

K series reducer is a kind of gear is used to reduce the motor speed and improve the output torque of the principle of speed
reducer. It uses the gear and gear meshing, with advanced design and novel structure of retarding mechanism.
• Food processing machine
• Construction machinery
• Wood processing machine
• Conveyors
• Agriculture machine
• Crane/ mineral machinery

Our K series helical gear reducers are based on the building block design, so its convenientfor them to fit all types of motors or
to connect with other power input, and its possiblefor different types of machines to combine or connect.
• High modular design.
• Efficiency and save power.
• Save cost and low maintenance.
• Excellent sealing, wide range of industry application.
• High loading support, stable transmitting and low noise level.

K Series gearbox reducer specification:

Size 37 47 57 67 77 87 97 107 127 157 167 187
Structure K KA KF KAF KAZ KAT KAB
Input power
(kW)		 0.18-3.0 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 3-45 7.5-90 11-160 00 18.5
Ratio 5.36-
106.38		 5.81-
131.87		 6.57-
145.14		 7.14-
144.79		 7.24-
192.18		 7.19-
197.37		 8.95~
176.05		 8.74-
141.46		 8.68-
146.07		 12.65-
150.41		 17.28-
163.91		 17.27-
180.78
Permissible torque(N.m) 200 400 600 820 1550 2700 4300 8000 13000 18000 32000

50000

High Torque Inline Motor Gearbox Helical Bevel Speed ReducerHigh Torque Inline Motor Gearbox Helical Bevel Speed ReducerHigh Torque Inline Motor Gearbox Helical Bevel Speed Reducer

High Torque Inline Motor Gearbox Helical Bevel Speed ReducerHigh Torque Inline Motor Gearbox Helical Bevel Speed Reducer

High Torque Inline Motor Gearbox Helical Bevel Speed ReducerHigh Torque Inline Motor Gearbox Helical Bevel Speed ReducerHigh Torque Inline Motor Gearbox Helical Bevel Speed ReducerHigh Torque Inline Motor Gearbox Helical Bevel Speed ReducerHigh Torque Inline Motor Gearbox Helical Bevel Speed Reducer

High Torque Inline Motor Gearbox Helical Bevel Speed ReducerHigh Torque Inline Motor Gearbox Helical Bevel Speed Reducer

Application :
High Torque Inline Motor Gearbox Helical Bevel Speed ReducerHigh Torque Inline Motor Gearbox Helical Bevel Speed Reducer
R series process :
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
Packing and shipping way :
High Torque Inline Motor Gearbox Helical Bevel Speed Reducer
