Specifications
Brand Name :
FANBAO
Model Number :
R
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Helical
Output Torque :
50000N.m
Input Speed :
600~1800rpm
Output Speed :
14-280rpm
Weight (KG) :
50kg
Warranty :
1 year
Color :
customer Requirement
Ratio :
7.5~100
Mounting Position :
foot-mounted
Installation Form :
foot-mounted, flange-mounted, torgue arm
Description

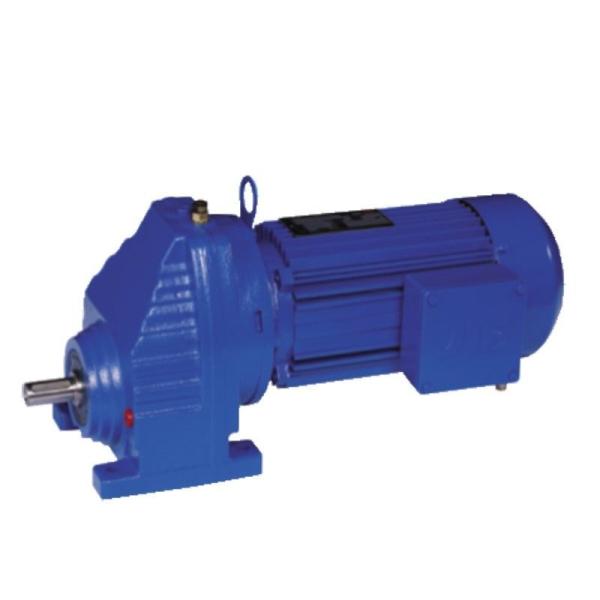

R Series Helical Gear Motor Gearbox Gear Speed Reducer For Mining Industry Intelligent Transmission

Description:

High degree of modular design,
It adopts integral casting box, small volume, strang bearing capacity, stabie
transmission, low noise
The leak proof performance of the seal is more relable, more widely
applicable conditions.
The CRM seres is designed for application design of mixingThe transmission efficiency is high, energy saving.The price is high, less maintenance.
Product form
Transmission series: single, 2 stage or 3 stages
The installation fomm: base mounted, flange mounted, small flange
installation, stirring type installation
The output shaft: solid shaft

Structure:

R: Shaft extension type foot installation RF: Flange installation
R...F: Foot flange installation
RM: Flange installation with extended bearing box
RX: Single-stage foot installation
RXF: Single-stage flange installation
Major application industries
The chemical mixing
The hoisting and transportation
The iron and steel metallurgy
The coal mine
The cement building materials
The papemaking industry
The electric enengy

Specification:

Specification
R47-R197
Efficiency
94%~98% (depends on the transmission stage)
Housing material
HT250 high-strength cast iron
Gear material
20CrMnTi
Surface hardness of gears
HRC58°~62 °
Input / Output shaft material
40Cr
Machining precision of gears
accurate grinding, 6 Grade
Lubricating oil
Mineral oil
Heat treatment
tempering, cementiting, quenching,etc.
Brand of bearings
NSK bearing
Brand of oil seal
NAK or other brand
Noise (MAX)
<70dB
Temp. rise (MAX)
<40 C
Temp. rise (Oil)(MAX)
<50 C
Vibration
≤20µm
Input power
0.12~90KW
Output torque
800~180000N.m
Transmission ratio
5.31~21342
Industrial Transmission Helical Planetary Gearbox Motor 2 StageIndustrial Transmission Helical Planetary Gearbox Motor 2 Stage
Industrial Transmission Helical Planetary Gearbox Motor 2 Stage
Industrial Transmission Helical Planetary Gearbox Motor 2 StageIndustrial Transmission Helical Planetary Gearbox Motor 2 Stage
Industrial Transmission Helical Planetary Gearbox Motor 2 Stage
Industrial Transmission Helical Planetary Gearbox Motor 2 Stage
Industrial Transmission Helical Planetary Gearbox Motor 2 Stage
Industrial Transmission Helical Planetary Gearbox Motor 2 StageIndustrial Transmission Helical Planetary Gearbox Motor 2 Stage
Application :
Industrial Transmission Helical Planetary Gearbox Motor 2 StageIndustrial Transmission Helical Planetary Gearbox Motor 2 Stage
R series process :
Industrial Transmission Helical Planetary Gearbox Motor 2 Stage
Packing and shipping way :
Industrial Transmission Helical Planetary Gearbox Motor 2 Stage
