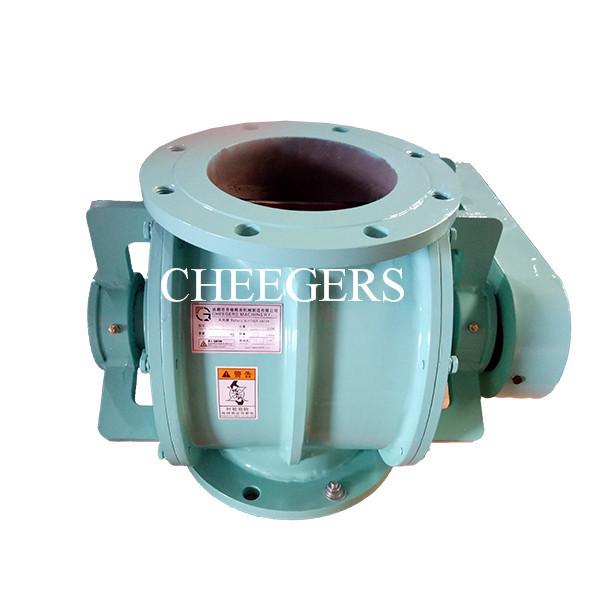

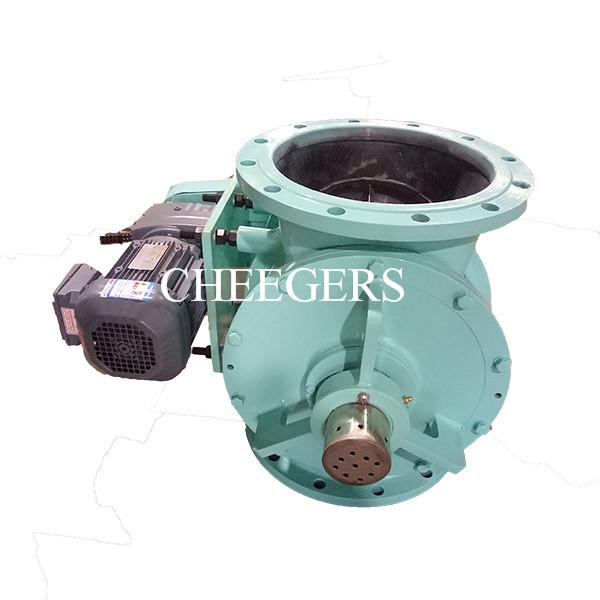

DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h
DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h
DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h
DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h
Specifications
Brand Name :
CHEEGERS
Model Number :
RV-D.V, TGFY
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
USD 240~7800 unit
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
45-50 days
Packaging Details :
Plywood
Name :
Pneumatic Rotary Valve
Model :
RV-D.V-9L
Capacity :
3-6 tons/hr
Blade :
8
Drive Type :
Chain Drive
Motor Type :
Hardened helical gear motor
Power :
1.1kw
Voltage :
380V & others
Weight :
54kgs
Transportation :
Sea Shipping or Air Delivery
Delivery Term :
CIF, CFR, FCA, FOB
Description

DN150 Factory Sell Bulk Material Handling Equipment Pneumatic Rotary Valve

Product Description

1. Working principle of the pneumatic rotary valve is to adopt the principle of rotating the impeller and adopt flange connection, which is installed at the discharge port with pressure difference to ensure that the air pressure in the conveying pipe does not leak.

2. While feeding continuously and uniformly, the air circuit is blocked to ensure the use of system.

3. The electric pneumatic rotary airlock valve relies on the rotating impeller to transport materials.

4. At the same time, it plays a sealing role, preventing air from sucking in the outlet during the pneumatic conveying process, and ensuring safe conveying and collecting of materials.
Main Features:

★ Clearance to be 0.06mm, perfect airlock performance

★ Provide multiple installation methods of chain drive and direct drive.

★ Configure reducer motors according to requirements.

★ The main materials are: cast iron, stainless steel series, etc.

★ The airtight performance can stand pressure to -1 bar.

★ External bearing installation, durable and excellent performance.

DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h

DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h

DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h

Dimension Display

DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h

Type

 External dimension Inlet Outlet Install size Shaft
A B H E F D1 D2 e f h g m D d k
TGFY-5L 410 300 435 250 170 Φ222 Φ152 180 150 160 220 130 Φ200 Φ35 50
TGFY-7L 420 310 435 260 180 Φ250 Φ162 182 160 160 230 140 Φ220 Φ35 50
TFGY-9L 470 310 435 260 230 Φ270 Φ192 182 210 160 230 190 Φ240 Φ40 50
TGFY-12L 520 370 530 320 238 Φ288 Φ208 240 218 190 290 200 Φ260 Φ40 50
TGFY-16L 570 370 530 320 280 Φ330 Φ250 240 260 190 290 240 Φ300 Φ40

Application Pneumantic Rotary Valve​

DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h

Overseas Exhibitions

DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h

Processing Procedure

1. CHEEGERS Machinery Manufacture Co., Ltd. is a professional supplier of airlock, rotary valve

2. CHEEGERS is rebuilt in 2003 from the revolution of china government factory CHIQI which built in 1958

3. We have been in airlock for 63 years and are specialized in producing all kinds of Rotary Airlock Valve.

4. At present, our products have been exported to Thailand, Canada, Indian, Morocco, Switzerland, Australia, Africa and others. We have established long-term, stable and good business relationships with many manufacturers (Buhler) and wholesalers around the world.

DN150 Material Handling Valve 8 Blades Direct Drive 6 Tons/h

To choose a suitable rotary valve, please provide us with the below information?
What's your handling material?

What's the bulk density of the handling material?

What equipment is to be used above the rotary valve?

What equipment is to be used under the rotary valve?

How many tons per hour need to be handled?
Any questions, please do contact me!
