132KW 200 Ton Industrial Rotary Dryer For Construction Works
132KW 200 Ton Industrial Rotary Dryer For Construction Works
Specifications
Brand Name :
Zhongke
Certification :
φ600-φ2800
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Price :
USD 9000/ set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
900 set per month
Delivery Time :
15 days
Packaging Details :
Nude, ordinary package
Type :
Rotary Drying Equipment
Power :
5.5-132 KW
Control :
Electric Control Cabinet
Weight (KG) :
8.5-200 Ton
Applicable Industries :
Manufacturing Plant, Construction works , Energy & Mining
Voltage :
220/380/440V/50Hz
Warranty :
One year
Description


8.5-200 Ton Industrial Rotary Dryer

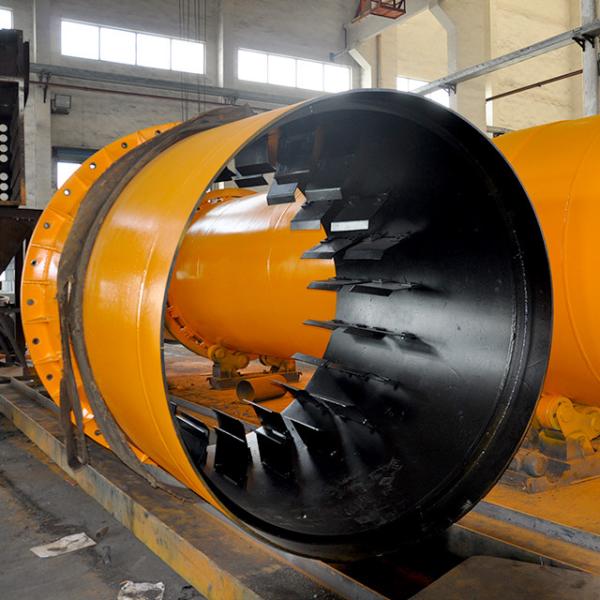

Rotary dryer is also called rotary drying machine. The main body is revolving cylinder with a small slope. It is composed of the revolving body, lifting board, driving device, supporting device, and seal rings etc, with the characteristics of reasonable structure, perfect in workmanship, high output, low energy consumption, and convenient operation. Our company can guarantees the quality of products, credibility first, make the free installation and debugging, do the agency for consignment, and complete by quality, service, and price with other factories. At present, it is still widely used in metallurgical, building materials, and chemical industry.

Industrial Rotary Dryerfeatures:

  1. Large production capability, continuous operation
  2. Simple structure, convenient operation
  3. Low malfunction, low maintenance cost
  4. Wide scope of application, can be used to dry the granular materials, favorable for those materials with the big adhesion
  5. Great operating flexibility, the output of the products allows a larger fluctuation range, not influencing the quality of the products



Modal

 Technical parameter Power(kw)

Capacity
(t/h)

Weight
(kg)

Inside
dia.(m)

Length
(m)

Gradient
(%)

 Rotate speed(r/min)
ZT-1.2*6/8 1.2 6/8 5 5.8 5.5 8-12 9380/10200
ZT-1.5*12/15 1.5 12/15 5 4.8 15 12-16 16450/18240
ZT-1.8*12/14 1.8 12/14 5 4.5 18.5 18-20 20000/21000
ZT-2.2*12/14 2.2 12/14 5 4.3 22 22-28 37100/38830
ZT-2.4*14 2.4 14 4 3.78 30 30-35 50700
ZT-2.4*18 2.4 18 4 3.0 37 35-40 54000
ZT-2.4*22 2.4 22 3 3.0 45 38-42 57000
ZT-.2.8*20 2.8 20 4 3.7 40 45-55 71000/75000
ZT-3.0*22/25 3.0 22/25 4 3.2 75 58-70 88000/95000
ZT-3.2*25 3.2 25 4 3.0 110 75-90 166000
ZT-3.6*25

3.6

 25 4 2.7 132 95-110 188000


Technical parameters:

model cylinder diameter cylinder length inclination Rotate speed/RMP weight power Volume/CBM
φ0.6×8 φ600 8m 3-5 8 5.1 6-pole 4 2.26
φ0.8×10 φ800 10m 3-5 7.2 6.9 6-pole 4 5.02
φ1.0×10 φ1000 10m 3-5 6.73 7.5 6-pole 5.5 7.85
φ1.2×12 φ1200 12m 3-5 5.8 13.1 6-pole 11 13.31
φ1.5×12 φ1500 12m 3-5 4.8 22.3 6-pole 15 21.2
φ2.2×14 φ2200 14m 3-5 3.2 52.8 30 53.22
φ2.4×18 φ2400 18m 3-5 3 73.3 37 81.43
φ2.8×24 φ2800 24m 3-5 2.59 97 75 147.8

Applicable of Industrial Rotary Dryer

Widely used in chemical, mining, metallurgy, agriculture, feed, fertilizer and other industrial fields. Such as ore, slag, coal, metal powder, diatomaceous earth, kaolin, starch residue, distiller's grains, dregs, soy sauce residue, fertilizer, potassium chloride, potassium sulfate, etc., sludge, aquatic product waste, food factory waste, phosphorus fertilizer sulfur Ammonium, light calcium carbonate, clay, lime slurry, ore mud, phosphate rock slag, aluminum plant red mud..



132KW 200 Ton Industrial Rotary Dryer For Construction Works

FAQ

Q1: How long is the warranty of the rotary Dryer?

A1: Our warranty period is one year generally.

Q2: Can l visit your factory?

A2: Yes. We warmly welcome you to visit our factory. We will take you to our customer site to have a real look. We will arrange a car to pick you up at the Xinzheng International Airport.

Q3: Do you provide equipment operation training?

A3: Yes.We can send professional engineers to the working site for installation, adjustment,and operation training. All of our engineers have passports.

Q4: Do you provide whole rotary Dryer flow chart?

A4: Yes. Our experienced engineers are specialized in designing process flow for various project.

Q5: Can you test our samples?

A5: Yes.You can send your samples to us for test and analysis.

Q6. How about price?

A6: Yes, we are factory and are able to give you the lowest price than market one and we have a policy that “for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.contact us.
