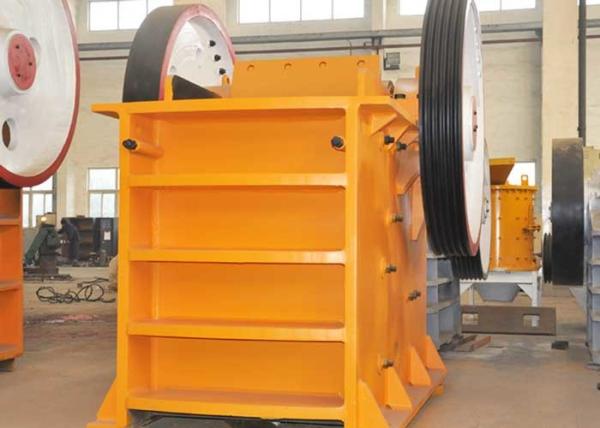

Deep Crushing Cavity 20t/H Small Jaw Portable Stone Crusher
Deep Crushing Cavity 20t/H Small Jaw Portable Stone Crusher
Deep Crushing Cavity 20t/H Small Jaw Portable Stone Crusher
Deep Crushing Cavity 20t/H Small Jaw Portable Stone Crusher
Specifications
Brand Name :
Zhongke
Model Number :
PE250X400
Certification :
CE,ISO9001,ISO14001
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Price :
USD8000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
900 set per month
Delivery Time :
15 days
Packaging Details :
Nude, steel or wooden case
Color :
Grey, black, blue, red
Material Of Toggle Plate: :
ZGMN18+Cr2
Material Of Eccentric Shaft :
35
After-Sale Service :
Life long
Factory Visit :
Warmly welcome
Material Of Main Frame :
Q235
Description

PE series jaw crusher

1) Brief introduction of jaw crusher machine

Jaw crusher is widely used in construction, mining, chemical industries and other industries which need a powerful machine to crush rocks and stones. Generally, jaw crusher can be used for both primary and secondary crushing. It can be used to crush the hardest rock and the materials with particle size around 125~1020mm and compressive strength less than 320MPa.

2) Features of jaw crusher machine

1. Deep crushing cavity without dead zone, improve the feeding capacity and output.

2. The gaskets adjusting device of discharging opening, reliable and. convenient, with large adjusting range, increases the flexibility of the equipment.

3. Safe and reliable lubrication system, easy to change the parts, small maintenance workload.

4. Simple structure, reliable operation, low operating cost.

5. Large adjustable scope of discharge opening can meet the different requirements of customers.

3)Working principle of jaw crusher machine

Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done. When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring, and then the crushed material will be discharged from the lower opening of the crushing room.

Deep Crushing Cavity 20t/H Small Jaw Portable Stone Crusher

Deep Crushing Cavity 20t/H Small Jaw Portable Stone Crusher

Deep Crushing Cavity 20t/H Small Jaw Portable Stone Crusher
