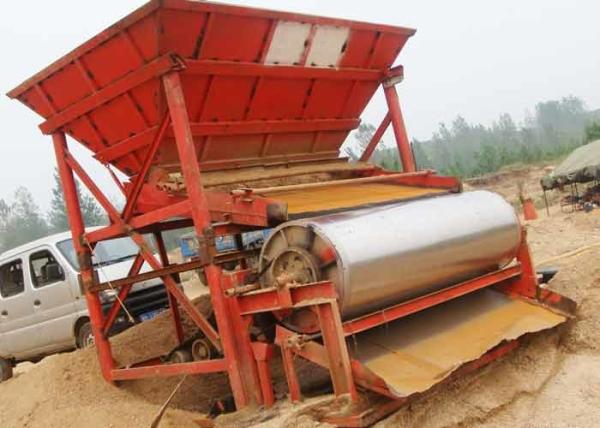

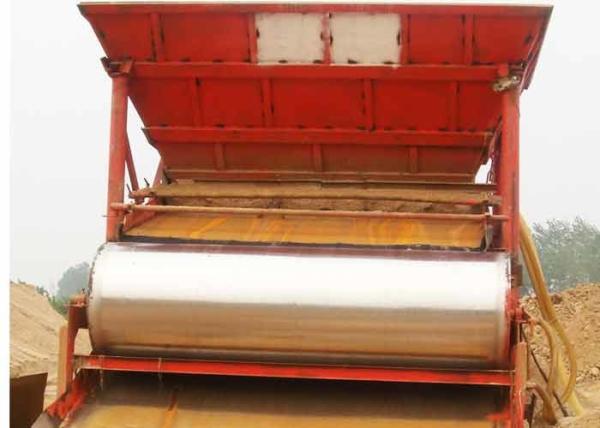

Wet Type Raw Hematite Ore Magnetic Separator Machine
Wet Type Raw Hematite Ore Magnetic Separator Machine
Wet Type Raw Hematite Ore Magnetic Separator Machine
Wet Type Raw Hematite Ore Magnetic Separator Machine
Specifications
Brand Name :
Zhongke
Model Number :
CTB6012
Certification :
CE,ISO9001,ISO14001
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
900 sets per month
Delivery Time :
10 days
Packaging Details :
Nude, steel or wooden case
Name :
Magnetic Separator Machine
Control System :
Simens Motor
Cylinder diameter :
600mm, 750mm, 900mm, 1050mm, 1200mm
Tube length :
1200mm, 1800mm, 2100mm, 2400mm, 3000mm
Cylinder speed(r/min) :
<35
Feed size(mm) :
1mm, 2mm, 3mm
Magnetic field strength(GS) :
1400, 1500, 1600, 1700
Capacity(t/h) :
3t/h, 6t/h, 10t/h, 20t/h, 30t/h, 40t/h, 60t/h, 80t/h, etc.
Color :
As customer required
Description
Wet Type Magnetic Separator Machine For Raw Hematite Ore Iron Sand Separating Process

Specifications

1. Feeding particle size less than 3mm
2. Used in Magnetite, pyrrhotite, roasted ore, ilmenite and other materials
3. In wet way

1. Magnetic separator for particle size less than 3mm magnetite, pyrrhotite, roasted ore, ilmenite and other materials, wet magnetic separation, but also for coal, non-metallic minerals, building materials and other materials in addition to iron work.

2. Magnetic separator magnetic system, using high-quality ferrite materials, or composites made with rare earth magnet, magnetic drum table the average intensity of 100 ~ 600mT. According to user needs, providing downstream, semi-reflux, reflux-type and so many different form strong magnetic separation. The magnetic separator is simple in structure to deal with large, easy to operate, easy maintenance and so on.

Technical parameters of Hematite Ore Magnetic Separator

Model Cylinder diameter(mm) Tube length(mm) Cylinder speed(r/min) Feed size(mm) Magnetic field strength(GS) Capacity(t/h) Power(KW)
CTB6012 600 1200 <35 1-0 1400 3 1.5
CTB6018 600 1800 <35 1-0 1500 6 2.2
CTB7518 750 1800 <35 2-0 1500 10 2.2
CTB9018 900 1800 <35 2-0 1600 20 3
CTB9021 900 2100 <35 2-0 1600 30 3
CTB9024 900 2400 <28 2-0 1600 35 4
CTB1018 1050 1800 <20 2-0 1700 40 5.5
CTB1021 1050 2100 <20 2-0 1700 45 5.5
CTB1024 1050 2400 <20 2-0 1700 50 5.5
CTB1218 1200 1800 <18 3-0 1700 60-120 5.5
CTB1224 1200 2400 <18 3-0 1700 70-150 7.5
CTB1230 1200 3000 <18 3-0 1700 80-180 7.5

Type capacity(t/h)

Magnetic intensity

(OE)

 power(kw) weight(T)
CTB600×900 8-15 1450 1.1 0.91
CTB600×1800 15-25 1500 2.2 1.34
CTB750×1200 25-30 1550 2.8 1.49
CTB750×1800 30-45 1550 3 2.05
CTB900×1800 35-60 1550 4 3
CTB1050×2400 55-90 1550 5.5 5
CTB1200×3000 80-150 1550 7.5 7.8
CTB1500×3000 120-200 1550 11 9.6

Application of Magnetic Separator
Magnetic Separator are widely used for the wet magnetic separation of materials which particle size less than 3mm such as magnetite, pyrrhotite, calcined ore, ilmenite, etc, but also used for deironing operations of coal, non-metallic minerals, building materials and other materials.
Structure of Hematite Ore Magnetic Separator
A basic magnetic separator consists of a magnet of some kind.
Permanent magnet drum magnetic separator can be divided into 3 kinds according to its structure at the bottom of different:
downstream type, counter-current type and half counter-current (semi counterflow) type.
Advantages of Hematite Ore Magnetic Separator
1. Simple structure makes it easy to operate and maintain.
2. Max. Magnetic intensity: 8,000 OE.
3. The number of axial magnetic can be adjusted in accordance with material characteristics.
4. This magnetic separator is suitable for processing various bulk materials and will not blocked for its compact structure.
5. Energy saving & high-efficiency.
6. Also has disaggregating function for sticky and poor-fluidity powders.
7. Stainless steel machine and full-closed operation enable an easy clean.
8. This high gradient magnetic separator has optimized magnetic circuit, which offers high intensity magnetic field for better separating effect.
9. Magnetic separator can be working under high temperature.
Magnetic Separator for Hematite Ore Magnetic Separating Process
Wet Type Raw Hematite Ore Magnetic Separator Machine
Wet Type Raw Hematite Ore Magnetic Separator Machine
