100tpd 3000tpd Rotary Kiln Plant Cement Making Machinery
100tpd 3000tpd Rotary Kiln Plant Cement Making Machinery
100tpd 3000tpd Rotary Kiln Plant Cement Making Machinery
100tpd 3000tpd Rotary Kiln Plant Cement Making Machinery
100tpd 3000tpd Rotary Kiln Plant Cement Making Machinery
100tpd 3000tpd Rotary Kiln Plant Cement Making Machinery
Specifications
Certification :
ISO CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
$66,000.00 - $780,000.00 / Set
Supply Ability :
100 Set/Sets per Month
Product name :
Rotary Kiln
Applicable Industries :
Manufacturing Plant, Construction works , Energy & Mining
Core Components :
Tyre
Voltage :
220/380/440v
Power(W) :
800-20000KW
Weight :
10t-2000t, 237 tons, 30-300t
Application :
Rotary kiln, mining equipment, etc
Warranty :
1 YEAR
OEM Service: :
yes
Description
100tpd To 3000tpd Rotary Kiln Cement Plant Kiln Cement Making Machinery

Description of Rotary Kiln

The rotary kiln refers to the rotation calcining kiln (known as rotary kiln), belonging to the building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials. The Cement kiln is mainly used for calcining cement clinker, including dry and wet-producing cement kiln. The metallurgy chemical kiln is mainly used for lean iron ore magnetized roasting in steel plants of metallurgical industry; chromium and nickel iron ore oxidizing roasting; bauxite roasting in refractory plants and chamotte and aluminum hydroxide roasting in aluminium factory; chrome ore roasting in chemical plant. The lime kiln (i.e. active lime kiln) is used for roasting active lime and light burned dolomite for steel plants and ferroalloy works.

Working Principle Of Rotary Kiln

The rotary kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to the different materials processed. The cement kiln is mainly used to calcine cement clinker; In the process of non-ferrous and ferrous metallurgy, such as iron, aluminium, copper, zinc, stannum, nickel, wolfram, chromium, etc., the rotary kiln can be used to sinter and roast ore, concentrate, intermedium, etc.; The lime kiln is mainly used to calcine limestones.

Rotary Kiln application:
The rotary kiln is mainly used for heating and calcining metallurgical, building materials, and ores etc mineral materials such as ceramsite sand, bauxite, limestone, cement, metal magnesium, alumina, hydroxide alumina, flyash , high aluminum refractory materials etc .

Characteristics Of Rotary Kiln:

1. Good calcination, high product quality;
2. High capacity;
3. Simple structure, reliable performance;
4. Easy operati

category model Cylinder diameter
(mm)		 cylinder length
(mm)		 inclination
(%)		 capacity
(t/h)		 rotate speed
(rpm)		 power
(kw)		 weight
(t)
Straight
rotary
kiln		 YZ1225 1200 2500 3 22 34
YZ1632 1600 3200 3.5 15 46.82
YZ1828 1800 2800 4 30 59.39
YZ1845 1800 4500 4.5 30 80
YZ1636 1600 36000 4 1.2～1.9 0.26～2.61 22 51.023
YZ1939 1900 39000 4 1.6～3.4 0.31～2.82 37 70.704
YZ2044 2000 44000 3.5 2.4～4 0.22～2.26 37 97.135
YZ2245 2200 4500 3.5 3.2～5.3 0.23～2.25 45 125.462
YZ2550 2500 50000 3.5 6.2～7.4 0.68～1.45 55 179.606
YZ2555 2500 55000 3 7.3～9.8 0.79～2.38 55 191.203
YZ2820 2800 20000 4 15～18 0.8～1.45 75 186.373
YZ3028 3000 28000 4 18～23 0.8～1.45 75 180.737
YZ3060 3000 60000 3.5 16～20 0.49～2.41 90 272.510
YZ3226 3200 26000 4 22～27 0.8～1.45 90 185.107
YZ3255 3200 55000 3.5 17～23 0.1～1.52 75 271.673
YZ3529 3500 29000 4 28～40 0.16～1.38 110 238.031
YZ3560 3500 60000 3.5 28～40 0.65～2.25 125 347.872
YZ4030 4000 30000 4 52～70 0.38～3.52 160 415.103
YZ4060 4000 60000 3.5 55`78 0.38～3.52 315 514.223
YZ4262 4200 62000 3.5 80～105 0.38～3.52 315 541.615
YZ4565 4500 65000 3.5 110～140 0.38～3.52 420 609.526
YZ4772 4700 72000 3.5 150～190 0.38～3.52 550 795.325
Diameter
changes
rotary
kiln		 YB1626 1600/1400 26000 4 0.7～1.1 0.41～3.85 18.5 38.621
YB1939 1900/1600 39000 4 2.2～2.7 0.27～2.58 22 60.841
YB2245 2200/2000 45000 3.5 2.5～3.5 0.25～2.28 30 88632
YB2545 2500/2200 45000 3.5 4.5～6.2 0.25～2.18 45 102.367
YB2845 2800/2500 45000 3.5 7.5～10 0.68～1.45 55 192.622
YB3560 3500/3000 60000 3.5 23`32 0.65～2.28 125 310.263

100tpd 3000tpd Rotary Kiln Plant Cement Making Machinery

100tpd 3000tpd Rotary Kiln Plant Cement Making Machinery100tpd 3000tpd Rotary Kiln Plant Cement Making Machinery

Product Details

Our products have the following six major features,so that we can lead other manufacturers at home and abroad

other product:

Magnesium oxide rotary kiln

Lime rotary kiln

Cement rotary kiln

Chemical rotary kiln

100tpd 3000tpd Rotary Kiln Plant Cement Making Machinery

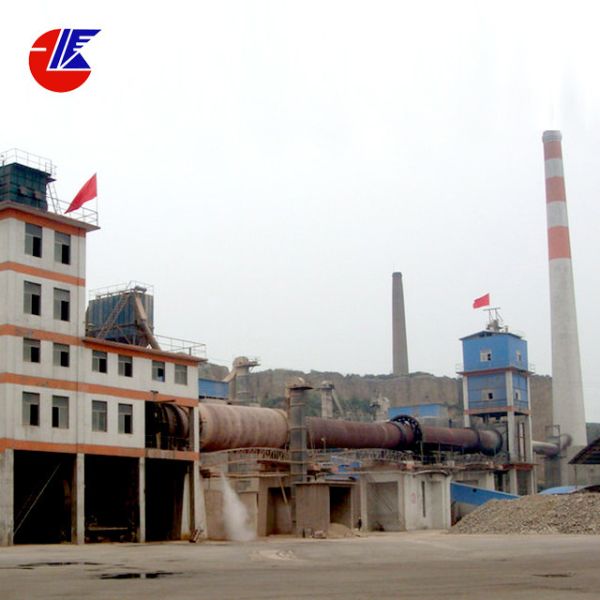

Installation Site

FAQ

Q1: How long is the warranty of the rotary kiln?
A1: Our warranty period is one year generally.
Q2: How long shall we replace the refractory brick?
A2:Usually 6-12 months(Depends on the time and temperature.)
Q3: Can l visit your factory?
A3:Yes. We warmly welcome you to visit our factory.We will take you to our customer site to have a real look.We will arrange a car to pick you up at the Xinzheng International Airport.
Q4: Do you provide equipment operation training?
A4:Yes.We can send professional engineers to the working site for installation, adjustment, and operation training. All of our engineers have passports.
Q5: Do you provide whole rotary kiln flow chart?
A5:Yes. Our experienced engineers are specialized in designing process flow for various project, such as cement production line, quick lime production line,magnesium production line etc.
Q6: Can you test our samples?
A6:Yes.You can send your samples to us for test and analysis.
Q7:How about price?
A7.Yes, we are factory and are able to give you the lowest price than market one and we have a policy that “for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.contact us.
