Hybrid Slip Ring Transferring HF, USB and Ethernet Signal with Solid Shaft for Video Surveillance

Quick detail

Type Through bore slip ring
Number of circuits 10
Current rating 2A per wire
Feature USB2.0；Gigabit Ethernet；High Frequency

Description

The LPT series provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 12.7mm through-bore for routing hydraulic or pneumatic lines and a compact 55mm outside diameter for minimal space applications. The 5 amps /circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing length.

This series of product is a slip ring with 2A per circuit. And it can transmit 240V current. It has the feature of compact appearance, smooth running, and low friction. It can integrate with USB2.0 signal,Gigabit Ethernet and high frequency.

Specification

Circuits 10 ckt*2A, 4 ckt*USB2.0, 1ckt* Ethernet, 2ckt* HF
Voltage 220VAC
Dielectric Strength Between circuits ≥500V@50Hz(current); ≥300V@50Hz(signal)
Insulation Resistance 500MΩ@500VDC(current);100MΩ@300VDC(signal)
Dynamic Resistance Fluctuation Value ≤10mΩ (in 10rpm)
Working Speed 0~300 rpm
Contact Precious metal
Housing Aluminum alloy
Wire Size AWG22 # USB2.0 wire, Gigabit Ethernet wire
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP54

HF Part
Channels Channel 1 Channel 2
Connection Method SMA Female (50 ohms) SMA Female (50 ohms)
Frequency Range DC to 8GHz DC to 8 GHz
Peak Power 1500W 1500W
Average Power 50W@4.5GHz 50W@4.5GHz
VSWR 1.2@0-4GHz ; 1.3@4-8GHz 1.8@0-4GHz ; 2.2@4-8GHz
VSWR Variation 0.1 0.4
Insertion Loss 0.2dB@0-4GHz; 0.4dB@4-8GHz 0.5dB@0-4GHz; 0.8dB@4-8GHz
Insertion Loss Variation 0.05dB 0.35dB
Isolation 50dB m(Typical Value: 60dB) 50dB m(Typical Value: 60dB)

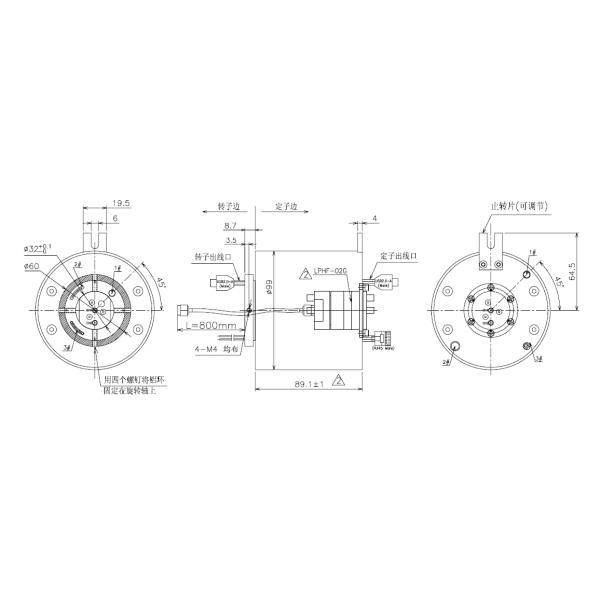

Dimension

Hybrid Slip Ring Transferring HF, USB and Ethernet Signal with Solid Shaft

Product application(medical engineering)
