Super Mini Slip Ring USB2.0 Signal 10 circuits
Super Mini Slip Ring USB2.0 Signal 10 circuits
Super Mini Slip Ring USB2.0 Signal 10 circuits
Super Mini Slip Ring USB2.0 Signal 10 circuits
Specifications
Brand Name :
JINPAT
Model Number :
LPMS-10A-U2
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
500 pieces / week
Packaging Details :
Standard/On Request
Delivery Time :
1 weeks ARO
Number of Circuits :
10
Voltage :
240 VAC/DC
Contact Material :
Gold to Gold
Other Application :
display equipment.
One Application :
robotics Palletizing machines
Two Application :
Closed-circuit control
lead length :
Standard 250 mm (9.843inch)
Description

Super Mini Slip Ring Transmitting USB2.0 Signal with 240 V Voltage for Steering Wheel

Description

It is also called a rotary electrical interface, slip ring assemblies, rotary connector, slip ring units. It can improve electromechanical capability, simplify system design and eliminate possible damage while in the rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, and manufacturing and processing control instrument.

LPMS-10A is suitable for all kinds of design of lightweight, compact space. High-quality stainless steel shell material can adapt to all kinds of the bad working environment while the high-quality gold-plated ring is able to ensure the reliability of power supply and signal transmission; Pressure compensation, good sealed performance, for example, can improve the rotation of the photoelectric integration connector.

This Series has been designed for keeping flexibility, cost-effectiveness, and reliability, which provides an economical, readily available solution when a compact through-bore configuration is required.

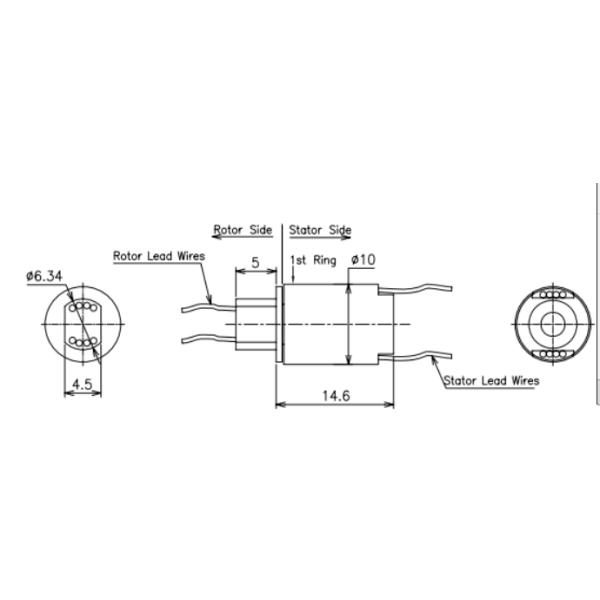

Outside Drawing

Super Mini Slip Ring USB2.0 Signal 10 circuits
Specifications
Operating Speed 0-300 rpm
Circuits 10
Voltage 240 VAC/DC
Rated Current 1 amp per circuit
Temperature Range -20℃ to +60℃
Contact Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩ Min
Housing Stainless steel

Capsule Length =L
# of Circuits L (mm) Part No
10 14.6 LPMS-10A

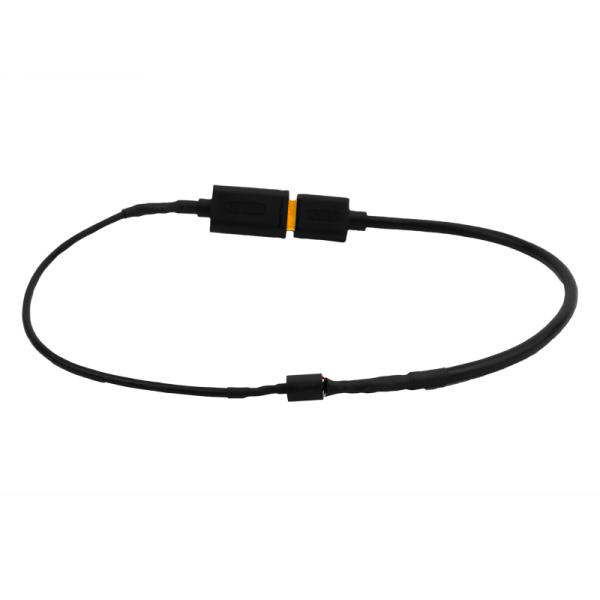

Product Display

Super Mini Slip Ring USB2.0 Signal 10 circuits

Application picture

Super Mini Slip Ring USB2.0 Signal 10 circuits
