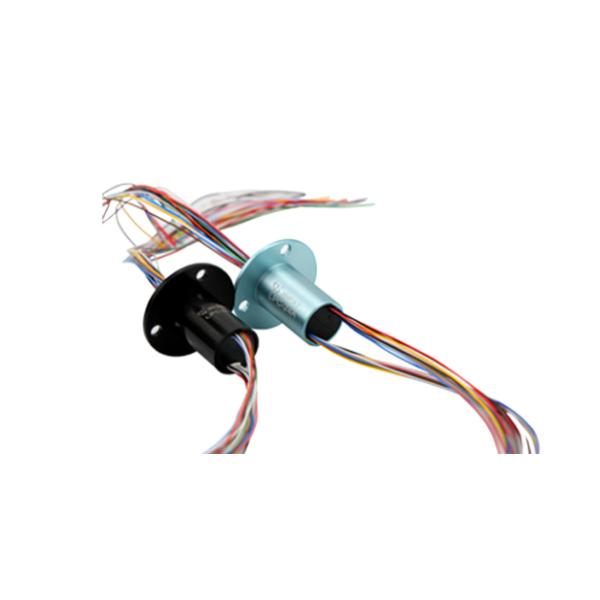

Industrial Slip Ring of 24 Circuits 2A per Wire Professional solution​

Description

This capsule slip ring is also called commutator, collector, swivel, a rotary electrical interface or an electrical rotary joint, with lower torque and lower electrical noise than competitive slip rings. It can be used in any electromechanical system that needs transferring power or data from a stationary part to a rotating part with an unrestrained and continuous rotation.

It has an independent design patent for the invention, the series of slip ring of cost-effective, high transmission rate and stable performance.

LPC-24A slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections, allowing high data rate signal transmission and providing smoother running, lower torque and lower electrical noise than competitive slip rings.

Contact part adopts rare metal and solid gold plating process, making the slip ring of long wear-resisting and antioxidant properties, and ensuring a long service life.

Features

• 24 circuits, 2 amps per circuit
• voltage 240VAC/DC
• Speed up to 300 rpm continuous
• Gold-Gold contacts
• Using a 90° V-groove ring design for each ring
• Sealed units are available
• Compatible with data bus protocols
• Ideal for applications where space is limited.
• Flexible, color-coded, silver-plated lead wires
• Transferring analog and digital signals
• Also available with 5 and 10 amps power rings combined with 2 amps rings.
• Precision ball bearings meet or exceed life requirements for most commercial applications

Specifications

Advantages

• Low electrical resistance and a stable structure.
• Tight packaging to fit into the most demanding space.
• Smooth running 360°continuous rotation
• Efficient operation with low electrical noise
• Quick shipment per your urgent requirement
• Addition of special components
• High bandwidth transfer capability
• The contact pairing material and shape makes signal transmission reliable and continuative
• Quick shipment per your urgent requirement

Main Application

• Total Station, Indexing Tables
• Electrical Test Equipment
• Bike Exhibit/Display Equipment
• Manufacturing and Processing Control Equipment
• Analog Tester, LED Lights
• CCTV Pan / Tilt Camera Mounts
• Robotics, Rotary Sensors, Urgent Illumination Equipment
• Rotating Stage, Revolving Door
• Exhibit/Display Equipment.
• Aviation, Military Instrument, Medical Equipment.
• Mini-type Coiling Machine
• Fire engine, Armored Car
• Closed-circuit Control

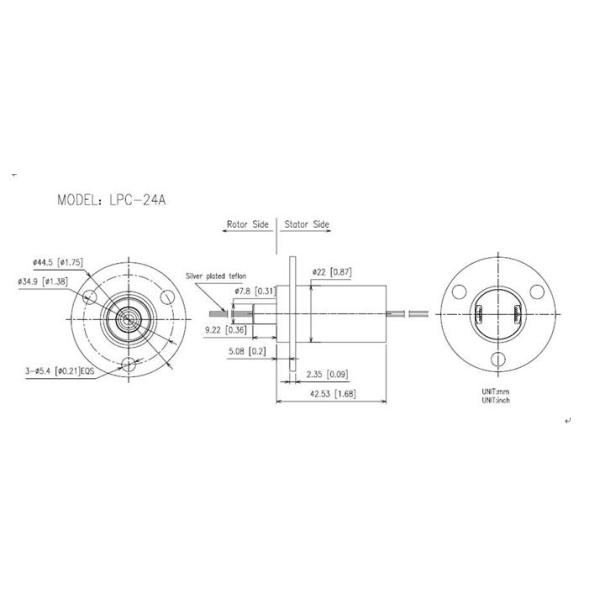

Outside Drawing
