Miniature Slip Ring 18 Circuits
Miniature Slip Ring 18 Circuits
Miniature Slip Ring 18 Circuits
Miniature Slip Ring 18 Circuits
Specifications
Brand Name :
JINPAT
Model Number :
LPM-18C
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Supply Ability :
50K units/week
Operating Speed :
0-250 rpm
Total Circuits :
18
Contact Material :
Gold to Gold
Lead Length :
Standard 250 mm (9.843 inch)
Electrical Noise :
1 mΩMin
Application :
Mechanical Arms
Insulation Resistance :
100 MΩ @ 500 VDC
Description

Miniature Slip Ring of 18 Circuits Compact Size and Gigabit Ethernet Integrated

LPM-18C Miniature Slip Ring Description

It is a high-precision slip ring manufactured by JINPAT, supporting the integrated transmission of Gigabit Ethernet, TRIG signal, BUS signal and ACAP signal etc. The LPM-18C miniature capsule slip ring has been designed with positive inversion structure, in terms of rotation, it allows varied forms whether for rotating degree or direction. Characterised by compact size and stable performance, the slip ring can be used in automatic equipments such as mechanical arms.

Specifications
Operating Speed 0-250 rpm
Circuits 18
Voltage 240 VAC/DC
Singals 1*Gigabit Ethernet, 1*TRIG signal, 1*BUS signal, 1 *ACAP and 1 *ABUS
Temperature Range -20℃ to +60℃
Contact Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩMin

Capsule Length =L
# of Circuits L (mm) Part No
18 23.5 LPM-18C

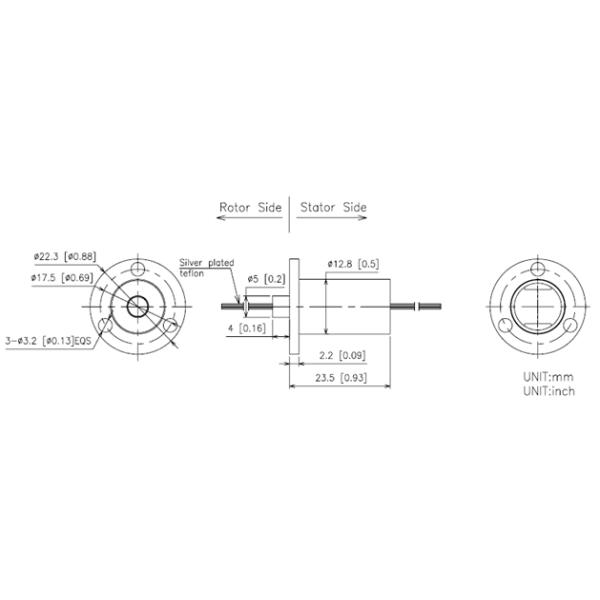

Dimension

Miniature Slip Ring 18 Circuits

Product Display

Miniature Slip Ring 18 Circuits


Company introduction

JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.

It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.

Patent & Certification

Miniature Slip Ring 18 Circuits

PS: Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.
