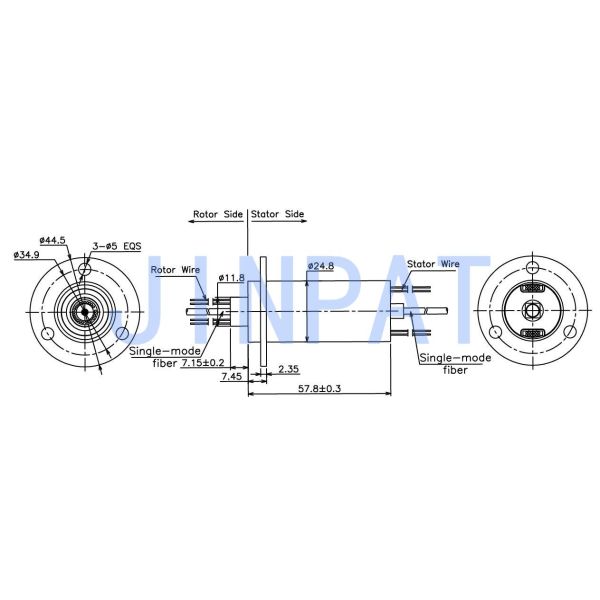

Fiber Optic Rotary Joint Hybrid Slip Ring
Fiber Optic Rotary Joint Hybrid Slip Ring
Fiber Optic Rotary Joint Hybrid Slip Ring
Fiber Optic Rotary Joint Hybrid Slip Ring
Specifications
Brand Name :
JINPAT
Model Number :
LPFO-1F2402
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Wavelength range :
650-1650nm （ customized）
Insertion loss :
＜0.5dB
Insertion loss ripple :
＜2dB
Return Loss :
＞40
Optional :
Single can be customized,housing material and driving connector are optional
Description

LPC-1F2402 fiber slip ring has 1 optical channel and 24 power channels. It is a slip ring model that can function smoothly in harsh environments with no contact, no friction and therefore attain a super long product life. Hybrid transmission of various signals(video, serial data and network data,etc.) Adopting fiber optics as medium allows no leakage and interference-free reliable transmission up to a hundred miles. The slip ring is light and compact, and is able to integrate with electrical slip rings. System upgrade is very convenient and flexible.

Fiber Optic Rotary Joint Hybrid Slip Ring

Electronic & Electric

Mechanical

Circuits

Total

24CKT

Working Speed

0~300rpm

Detail

24x2A

Dynamic Resistance Fluctuation Value

≤35MΩ

Rating Voltage

0~240V AC/DC

Contact Material

Gold to Gold

Dielectric Strength

500VAC@50Hz(P) ≥100VAC@50Hz(S)

Housing Material

Aluminum Alloy

Insulation Resistance

≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Lead Wire Length

 Rotor:250+50/-0mm
Stator:250+50/-0mm

Environment

Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/
IP IP40 Note: "P" stands for power, "S" stands for signal.
Coaxial Parameter
Optical fiber type Single mode(9/125um) The bending radius 50mm
Working wavelength 1310/1550nm Jacket types ⌀3(TPU)
Insertion Loss ＜2dB Connect Model /
Insertion Loss-WOW ＜0.5dB Optical fiber Length

Rotor:250±500mm

Stator:250±500mm

Return loss

 ＞40dB
Light power 23dBm
