Miniature USB Signal Slip Rings Camera Stabilizer 1 Circuit 500rpm
Miniature USB Signal Slip Rings Camera Stabilizer 1 Circuit 500rpm
Specifications
Brand Name :
JINPAT
Model Number :
LPMS-06B-U2
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
500 pieces / week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Voltage :
48 VAC/DC
Contact Material :
Gold to Gold
Working Speed :
0~500rpm
Working Temperature :
-20~+60℃
Humidity :
≤60%RH
IP :
IP54
Life :
4 million revolutions
Description

Super Miniature USB Slip Ring of 1 Circuit with 5 Million Revolutions Professional slipring producer​

Description

The LPMS-06B-U2 is called a rotary electrical interface, slip ring assemblies, rotary connector, slip ring units. It can improve electromechanical capability, simplify system design and eliminate possible damage while in the rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, and manufacturing and processing control instrument.

It suitable for all kinds of design of lightweight, compact space. High-quality material can adapt to all kinds of the harsh working environment while the high-quality gold-plated ring is able to ensure the reliability of power supply and signal transmission.

Specification

Circuits 1 circuit* USB2.0
Working Voltage 48 V AC/DC
Electrical Noise ≤15mΩ
Working Speed 0~10 rpm
Contact Gold to Gold
Housing Engineering Plastic
Wire Size USB2.0(FEP)AWG28#(FEP) silver plated copper UL,
Lead Wire Length

Rotor:100±5 mm

Stator:100±5 mm
Temperature -20°C~+60°C
Humidity ≤60%RH
IP IP54
Life 4 million revolutions

  • Cost-effective

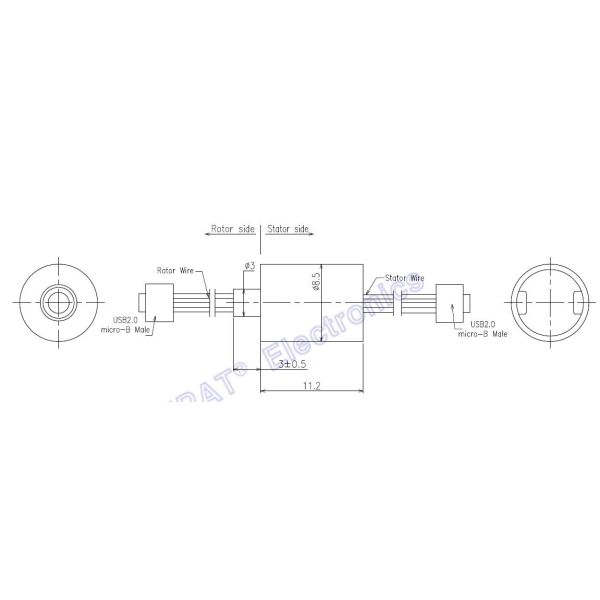

Outline Drawing

Miniature USB Signal Slip Rings Camera Stabilizer 1 Circuit 500rpm

Application picture

Miniature USB Signal Slip Rings Camera Stabilizer 1 Circuit 500rpm
