15 Circuits Large Current Slip Ring Routing 100A Current in 230 VAC Volatge
15 Circuits Large Current Slip Ring Routing 100A Current in 230 VAC Volatge
Specifications
Brand Name :
JINPAT
Model Number :
LPA000-07100-0310-05S
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
100 units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Circuits :
15 circuits
Working Voltage :
230VAC
Inner Diameter :
390mm
Housing :
Aluminum alloy
Working Speed :
0-20RPM
Humidity :
91%RH
IP :
IP44
Description

15 Circuits Large Current Slip Ring Routing 100A Current in 230 VAC Volatge for Marine Equipment

Description

High-current slip ring series are characterized by the higher current capacity, adopt specific design and advanced technology to meet different application requirements. At present, this series we produce can transmit current up to 800 amperes. Please let me know your requirements, we will provide the best solution for you.

Specifications

Circuits 15 Circuits
Working Voltage 230VAC
Dielectric Strength ≥2500V@50Hz/60Hz(100A)
≥100V@50Hz/60Hz(10A)
≥30V@50Hz/60Hz(RS485 S)
Insulation ≥500MΩ@1000VDC(100A)
≥500MΩ@500VDC(10A)
≥100MΩ@300VDC(RS485 S)
Working Speed 0-20RPM
​Inner Diameter 398mm
Housing Aluminum Alloy
Tempreture -20℃‐+60℃
Humidity 91%RH
IP IP44

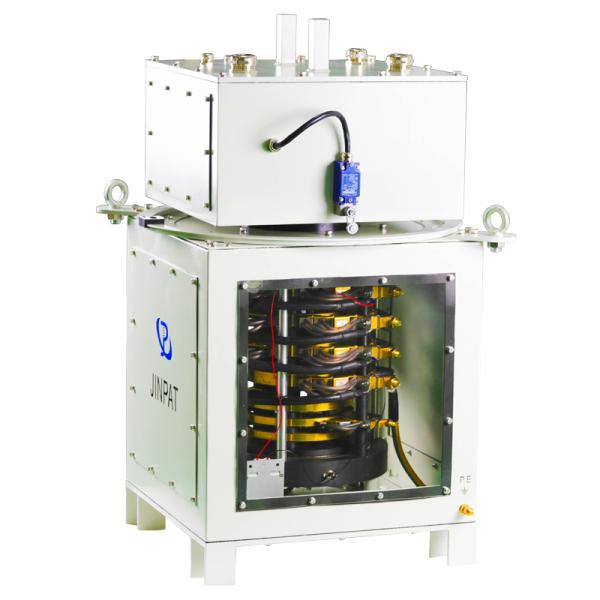

Product Display

15 Circuits Large Current Slip Ring Routing 100A Current in 230 VAC Volatge
