10 Circuits Ethernet Slip Ring Transmitting Current and 1000M Ethernet
10 Circuits Ethernet Slip Ring Transmitting Current and 1000M Ethernet
Specifications
Brand Name :
JINPAT
Model Number :
LPC-56A-0810-0201-E3
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
500 units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Type :
Ethernet
Configuration :
Capsule
characteristics :
compact
Number of circuits :
10
Feature :
1000M Ethernet
Working Temperature :
-20~+60℃
Description

10 Circuits Ethernet Slip Ring Transmitting Current and 1000M Ethernet with 36 Million turns Long Service Life

Description

The LPC-56A-0810-0201-E3 Ethernet Slip Ring transmits 10 A current in 8 circuits and Gigabit Ethernet. It features a long service life of 36 million revolutions. And as a capsule electrical part, it is designed with a compact size. It has been applied to the automatic equipment. Also, if fits the equipment where Ethernet signal and current transmission is required in a challenging space.

Features & Advantages

  • Tranmsit current, and Gigabit Ethernet
  • Compact size
  • Rapid delivery
  • Cost-effective

Specification

  • Circuits: 8 circuits *10A, 1 circuit*PE, 2*1A, 1 circuit *Gigabit Ethernet
  • Working Voltage: 220VAC
  • Dielectric Strength: Between circuits≥500V@50Hz
  • Insulation: Between circuits≥100MΩ@500VDC
  • Electrical Noise: ≤35mΩ
  • Working Speed: 0~24 rpm
  • Contact: Precious Metal
  • Housing: Aluminum Alloy
  • Wire Size: AWG17# AWG28#, CAT5E
  • Wire Length: Rotor: 500±5mm, Stator:750±5mm
  • Temperature: -20°C~+60°C
  • Humidity:≤60%RH
  • Protection Level: IP54
  • Life:36 million turns

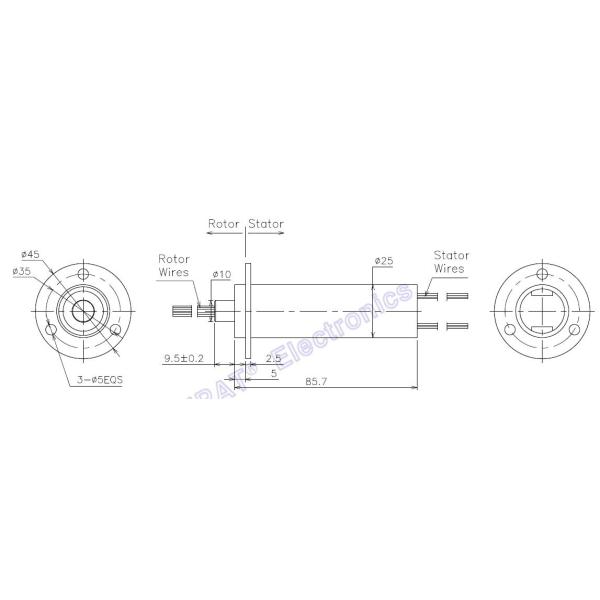

Outline Dimension

10 Circuits Ethernet Slip Ring Transmitting Current and 1000M Ethernet
