6 Circuits Through Hole Slip Ring Transmitting 5A Current In 360 Degree Continuous Rotation
6 Circuits Through Hole Slip Ring Transmitting 5A Current In 360 Degree Continuous Rotation
Specifications
Brand Name :
JINPAT
Model Number :
LPT038-0605
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
500 pieces /Week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
color :
green
Circuits :
6 circuits
Operating Speed :
0-300rpm
Working Temperature :
≤60%RH
Voltage Rating :
380VAC
Current Rating :
5A per circuit
Dielectric Strength :
≥1000V@50Hz between circuits
Electric Noise :
≤70mΩ
Description

6 Circuits Through Bore Slip Ring Transmitting 5A Current in 360-degree Continuous Rotation

LPT038-0605

LPT038-0605 through hole slip ring​ can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.It​ provides an economical, readily available solution when a compact through-bore configuration is required.

Specifications

Circuits 6 circuits * 5A
Working Voltage 380VAC
Dielectric Strength Between circuits≥1000V@50Hz
Insulation 500MΩ@500VDC
Electrical Noise ≤70mΩ (50rpm)
Working Speed 0~300 rpm
Contact Precious Metal
Housing Aluminum Alloy
Wire Size AWG22# Tin Plated
Wire Length

Rotor:300mm

Stator:300mm
Temperature -20°C~+60°C
Humidity ≤60%RH
IP IP54

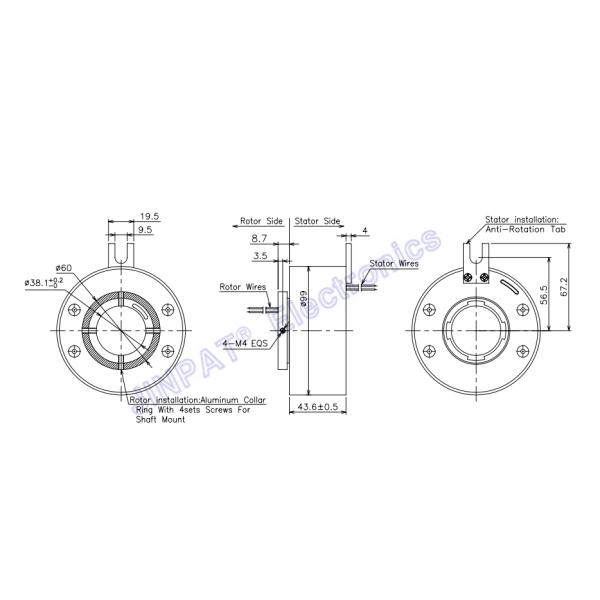

6 Circuits Through Hole Slip Ring Transmitting 5A Current In 360 Degree Continuous Rotation

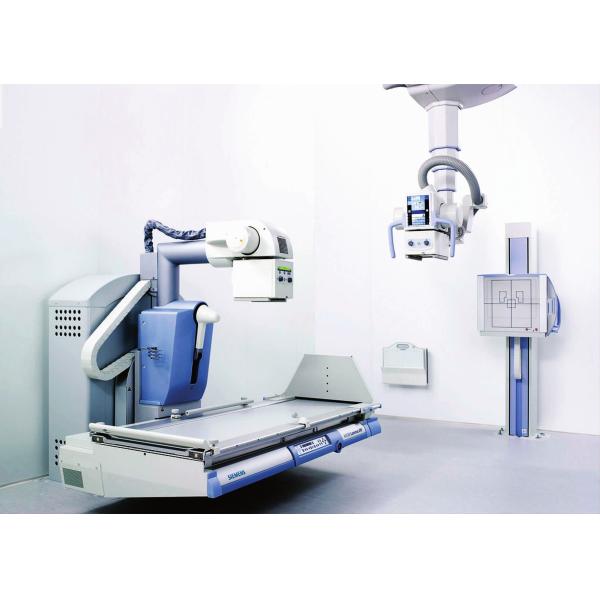

Product application

6 Circuits Through Hole Slip Ring Transmitting 5A Current In 360 Degree Continuous Rotation
