8 Circuits USB Slip Ring Free slip ring design
8 Circuits USB Slip Ring Free slip ring design
8 Circuits USB Slip Ring Free slip ring design
8 Circuits USB Slip Ring Free slip ring design
Specifications
Brand Name :
JINPAT
Model Number :
LPC-56A-08U2
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
50K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
model :
LPC-56A-08U2
Number of Circuits :
8*USB2.0
Operating Speed :
0~300rpm
Voltage Ratin380VAC/DCg :
48VAC
Body Material :
Aluminum alloy
Total :
40 CKT
Contact Material :
Gold to Gold
Description

8 Circuits USB2.0 Slip Rings With Extremely Low Electrical Noise and Customizable Wires

USB Slip Rings-2.0

USB was designed to standardize the connection of peripherals to personal computers. It has largely replaced interfaces such as serial ports and parallel ports, and has become commonplace on a wide range of communication devices like PC and portable devices. USB also gradually finds its way to machine vision, data collection, photographic equipment, digital television and recreational machine, etc.

JINPAT USB slip rings are specially designed for USB signal transmission. JINPAT USB slip ring features sufficient signal channels and stable signal transmission. This series includes slip rings with USB 2.0 connector and with USB 3.0 connector. JINPAT USB slip ring is an optimal solution for transmitting large volume of data at high speed between electrical components.

JINPAT USB Slip Rings Advantages:
High transmission, USB 3.0 theoretical transmission rate up 5.0Gbps, measured transmission rate＞2.0Gbps.
Electrical transmission and electro-optical transmission optional
Able to integrate many signal channels. Max channel capacity: 2 USB3.0 channels and 12 USB2.0 channels.
Exquisite contact materials ensure low electrical noise and super long service life.
Various kinds of connector to choose from.

Electronic & Electruc Mechanical
Circuits Total 40 CKT Working Speed 0~300rpm
Detail 8xUSB2.0 Contact Material Gold to Gold
Rating Voltage 0~48VAC/DC Housing Material Aluminum Alloy
Dielectric Strength ≥1000VAC@50Hz Lead Wire Length

Stator: 1000mm

Rotor: 1000mm
Insulation Resistance ≥100MΩ@100VDC

Dynamic Resistance

Fluctuation Balue

 ≤35mΩ
35mEnvironment Remarks
Working Temperature -20°C~+60° Application /
Working Humidity ≤60%RH Other /
IP IP40 Note:"P" stands dor power, "S" stands for signal

Product Display

8 Circuits USB Slip Ring Free slip ring design

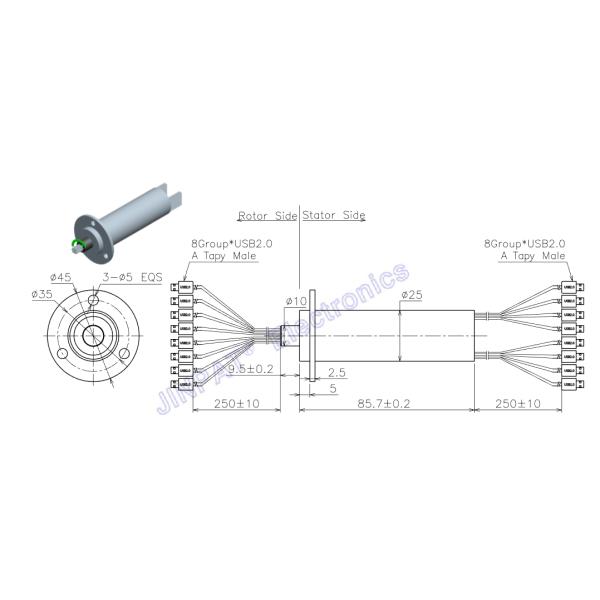

USB Slip Rings-2.0 -Outline Drawing

8 Circuits USB Slip Ring Free slip ring design
