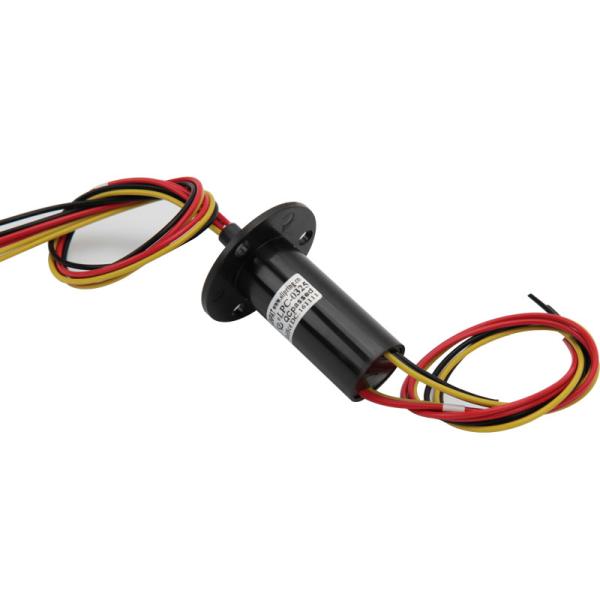

300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold
300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold
300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold
300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold
Specifications
Brand Name :
JINPAT
Model Number :
LPC-0325-03S(JP23-141-02)
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, C/C, Paypal
Supply Ability :
500 units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Rotating Speed :
0-300rpm
Contact Material :
Gold-to-gold
Housing Material :
Engineering Plastics
IP :
40
Working Humidity :
Working Humidity
Number of Circuits :
3Circuits*25A / 3Circuits*LM35
Description

300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold

JINPAT LPC-0325-03S is a special capsule slip ring model with built-in thermostat. This is a slip ring model with three 25A channels, which is relatively high compared with other slip ring of the capsule slip ring series. A larger power capacity usually means it might generate more heat during operation. To ensure a stable and smooth rotation and power transmission, LPC-0325-03S is integrated with a build-in thermostat, so there are 3 LM35 circuits. With the thermostat, this capsule slip ring is able to endure low and high temperature that ranges from -20 to 80 degree centigrade. With built-in thermostat, the slip ring can adjust itself to the fittest temperature and therefore guarantee the stable electrical performances. LPC-0325-03S slip ring is a perfect model for small application with rotary power transmission demands. With IP40 protection grading, this slip ring is a competitive model in demanding environment.

Product outline drawing

300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold

Product parameter table

Electrical & Electronics

Mechanical
Number of
Circuits		 7CKT Rotating
Speed		 0-300rpm
3Circuits*25A /
3Circuits*LM35
Rating Voitage 240V AC/DC Contact
Material		 Gold-to-gold
Insulation
Resistance		 ≥500MΩ@50Hz(P)
≥100VAC@50Hz(S)		 Housing
Material		 Engineering Plastics
Dielectric Strength ≥100VAC@200VDC(P)
≥10MΩ@100VDC(S)		 Lead Wire Length Stator:250±5mm
Rotor:250±5mm
Environment

Remarks
Working TEmperature -20℃~+60℃

Application

 /
Working Humidity ≤60％RH

Other

 /
IP 40 Note:"P"stands for power,"S"stands for signal.

The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.
