High Frequency 80 Rpm Slip Ring Solutions 380VAC IP54 Rotor 300mm
High Frequency 80 Rpm Slip Ring Solutions 380VAC IP54 Rotor 300mm
High Frequency 80 Rpm Slip Ring Solutions 380VAC IP54 Rotor 300mm
High Frequency 80 Rpm Slip Ring Solutions 380VAC IP54 Rotor 300mm
Specifications
Brand Name :
JINPAT
Model Number :
LPT000-0410-0602-HF01
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, C/C, Paypal
Supply Ability :
500 pieces / week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Circuits :
4*10A+6*2A
IP :
IP54
working speed :
0~80rpm
Housing Material :
Aluminum Alloy
Description

High frequency electric slip ring,0~80rpm Aluminum Alloy 380VAC IP54 Rotor300mm,Radar slip ring

JINPAT radar moving mid-pass antenna slip ring supports mixed transmission of multiple signal currents, and supports multi-channel high-frequency rotary joint integration. The outlet end can be welded with aviation plug.

Electronic & Electruc Mechanical
Circuits Total 11CKT Working Speed 0~80rpm
Detail 4X10A+6X2A Inner Diameter /
Rating Voltage 380VAC Contact Material Precious Metal
Dielectric Strength 1000VAC@50Hz Housing Material Aluminum Alloy
Insulation Resistance ≥500MΩ@500VDC Lead Wire Length

Stator:Aviation plug

Rotor:500mm
Environment Remarks
Working Temperature -40°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP IP54 Note:"P" stands dor power, "S" stands for signal

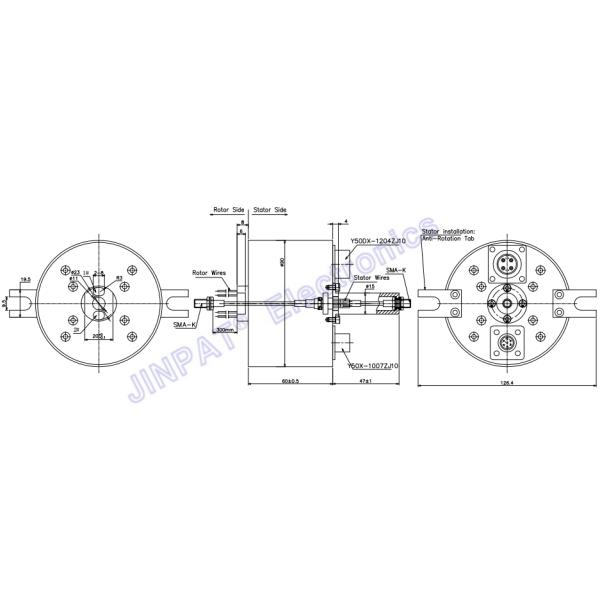

High frequency electric slip ring outline drawing

High Frequency 80 Rpm Slip Ring Solutions 380VAC IP54 Rotor 300mm

High frequency electric slip ring picture

High Frequency 80 Rpm Slip Ring Solutions 380VAC IP54 Rotor 300mm
