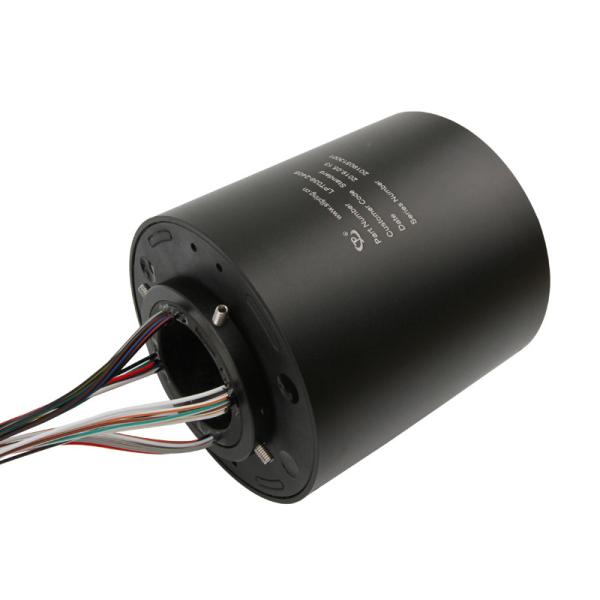

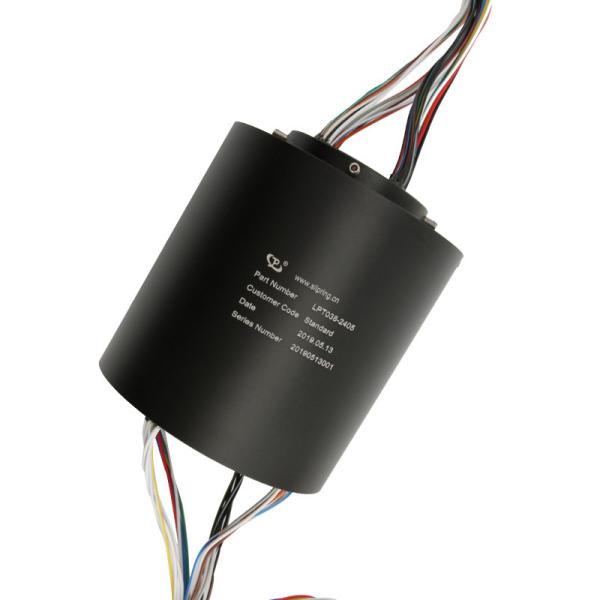

Ethernet Through Hole Slip Ring Diameter 38.1mm 240 VAC/DC
Ethernet Through Hole Slip Ring Diameter 38.1mm 240 VAC/DC
Ethernet Through Hole Slip Ring Diameter 38.1mm 240 VAC/DC
Ethernet Through Hole Slip Ring Diameter 38.1mm 240 VAC/DC
Specifications
Brand Name :
JINPAT
Model Number :
LPT038-2405
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
100K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Circuits :
24
Current Rating :
5A
Hole Diameter :
38.1mm
Working Speed :
Max 300 RPM
Contact :
Precious metal
Insulation :
500MΩ@500VDC
Dielectric Strength :
≥1000V@50Hz between circuits
Description

The LPT series hollow shaft slip ring is specially designed with a central hole for convenient hydraulic passage, pneumatic passage or drive shaft installation. It adopts advanced tuft brush type multi-point contact to ensure reliable contact under extremely low friction. The through hole is from 3mm to 500mm. Optional, currents from 2 amps to 1000 amps are available to meet your different drive options.

The part is LPT038 series slip ring that has a hole of φ38.1mm. It cn transmit 5A current in 18 circuits. Adopting advanced fiber brush technology, the part has a reliable performance with stable conatct and good conductivity.

Specification

Circuits 24
Current Rating 5A
Voltage 240 VAC/DC
Dielectric Strength ≥1000V@50Hz between circuits
Insulation 500MΩ@500VDC
Hole Diameter 38.1 mm
Working Speed 0~300 RPM
Contact Precious metal
Working Temperature -20~+60℃
Humidity ≤60%RH

Product Outline Drawing

Ethernet Through Hole Slip Ring Diameter 38.1mm 240 VAC/DC
