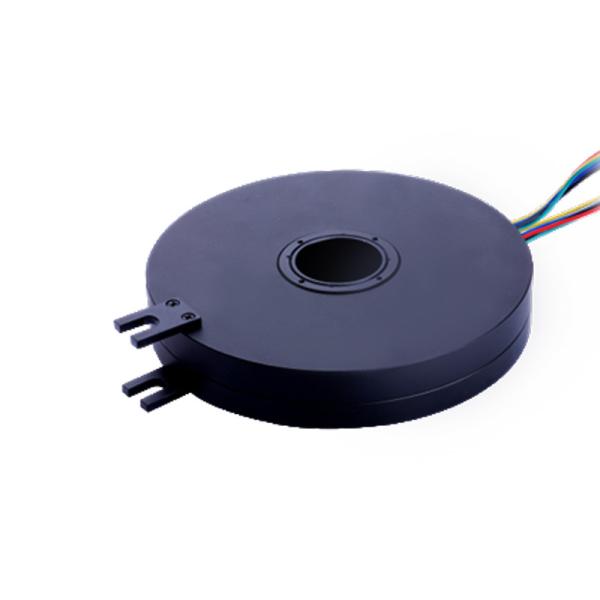

Integral Pancake Capsule Slip Ring Maintenance Free Low Torque Smooth Reliable Operation
Integral Pancake Capsule Slip Ring Maintenance Free Low Torque Smooth Reliable Operation
Specifications
Brand Name :
JINPAT
Model Number :
LPK025-0204
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
50K units/week
Delivery Time :
2 weeks ARO5
Packaging Details :
Standard/On Request
Product name :
Capsule Slip Ring
Number of circuits :
2CKT
Current :
4A/signal(optional)
Voltage :
240VAC/24VDC
Contact material :
Gold-to-gold
Protection Grade :
IP54
Insulation resistance :
≥500MΩ@500VDC
Torque :
0.5N.m(for reference)
Description

Bargain Price Only in Alibaba

Integral Pancake Slip Rings
Model Application area
LPK025-0204 Military airborne

Advantages
  • Super thin, only 22mm, especially designed for applications with limited axial installation space,maintenance-free
  • High protection grade up to IP54, especially designed for humid,dusty and heavily polluted environments.
  • Gold-to-gold contact guarantees low friction and long service life
  • For the excellent performances, the slip rings are applied in vehicle onboard equipment system,and win favorable reputation in the market
Features
  • Sing-row rolling bearing, high protection grade
  • Simultaneous transmission of power and signal
  • Compact structure to fit in small application with limited installation space
  • Maintenance-free, low torque
  • Demonstrates high precision, excellent transmit performance, smooth and reliable operation

Electrical & Electroni Mechanical Enviromental
Number of
circuits
 2CKT Rotating speed 0~100rpm or higher Temperature -55°C~+80°C
Current 4A/signal(optional)
Contact
material
 Gold-to-gold Humidity ≤60%RH
Voltage 240VAC/24VDC
Housing
material
 Aluminum alloy
Protection
Grade
 IP54
Dielectric
strength
 ≥500VAC@50Hz Torque 0.5N.m(for reference)
Others
Insulation
resistance
 ≥500MΩ@500VDC Wire Type
AWG20#
Tin plated
Life Span
Can be customized
Dynamic Contact
Resistance
 ≤30mΩ(at 50rpm)
Wire Length
Stator:300mm
Rotor:300mm

Outline drawings
