120mm Pneumatic Through Bore Slip Ring 300rpm
120mm Pneumatic Through Bore Slip Ring 300rpm
Specifications
Brand Name :
JINPAT
Model Number :
LPT120
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
1000 units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Inner Diameter :
Φ120mm
Working Speed :
0~300rp
Contact Material :
Precious Metal
Working Temperature :
-20°C~+60°C
Housing Material :
Aluminum Alloy
Rating Voltage :
240VAC/ DC
Lead Wire Length :
Stator:300mm Rotor:300mm
Description

120mm Pneumatic Through Bore Slip Ring 300rpm Aluminum Alloy Housing

LPT120-Through-bore Slip Rings

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector,

Electronic & Electruc Mechanical
Circuits Total 6CKT Working Speed 0~300rp
Detail 6X5A Inner Diameter Φ120mm
Rating Voltage 240VAC/ DC Contact Material Precious Metal
Dielectric Strength 1000VAC@50Hz Housing Material Aluminum Alloy
Insulation Resistance ≥500MΩ@500VDC Lead Wire Length

Stator:300mm

Rotor:300mm
Environment Remarks
Working Temperature -20°C~+60° Other /
Working Humidity ≤60%RH

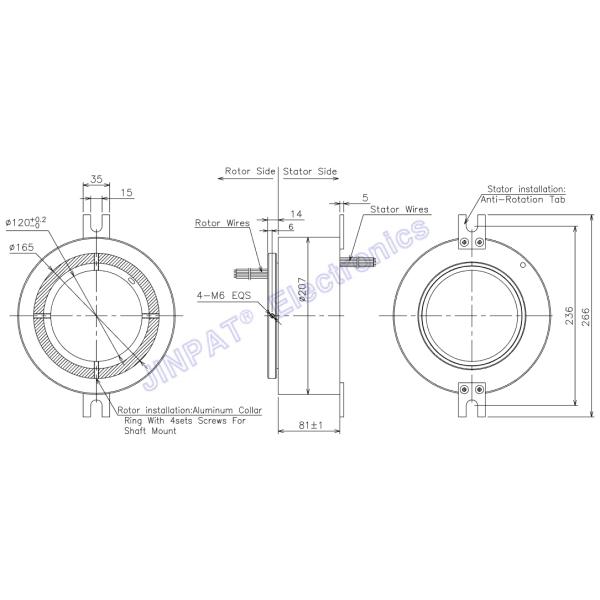

LPT120-0605-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

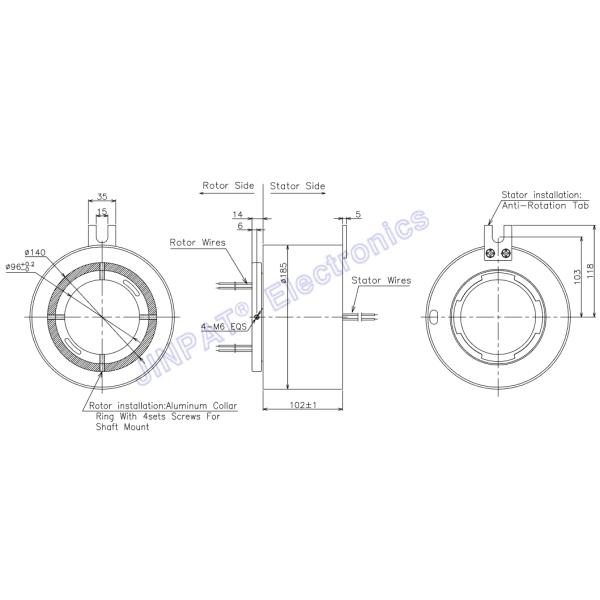

LPT120-0610-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

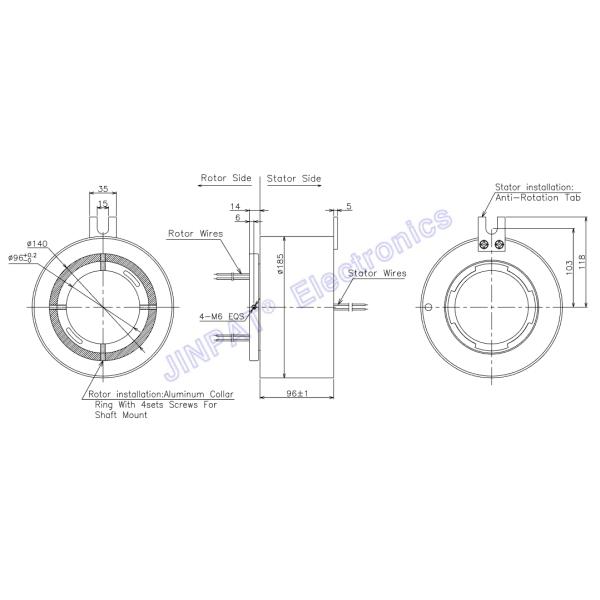

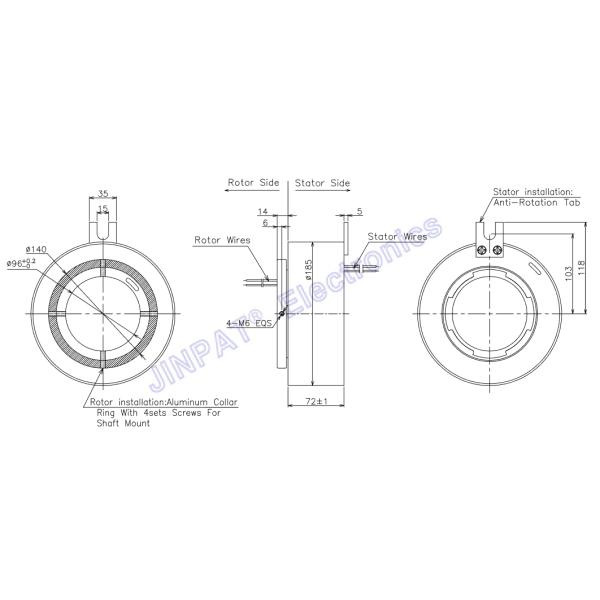

LPT120-0615-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

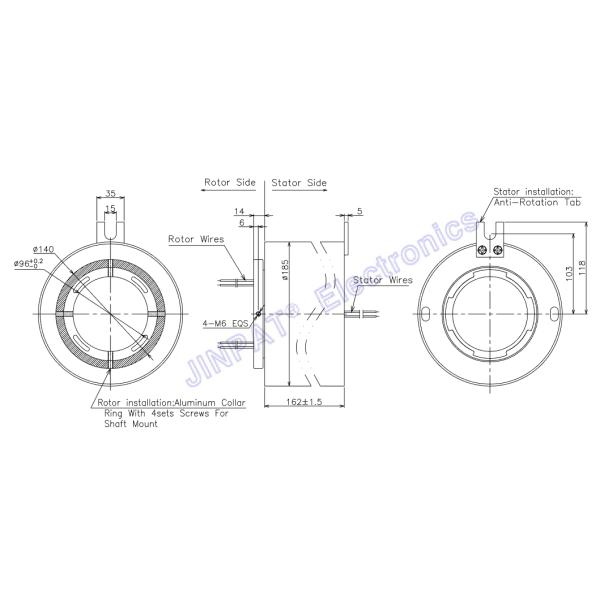

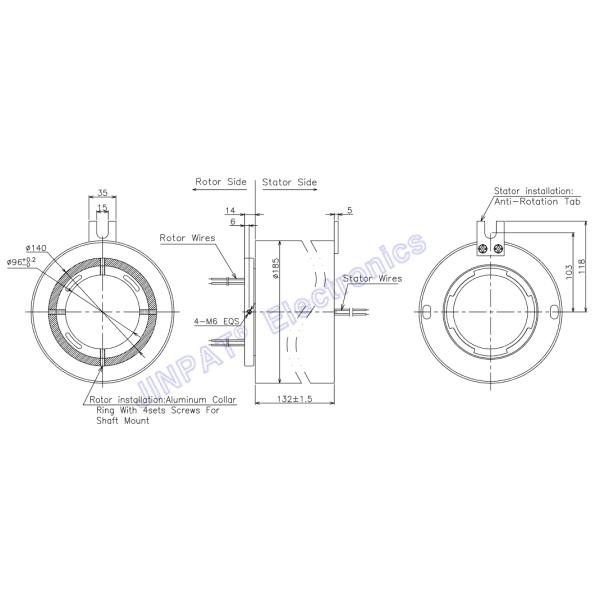

LPT120-1205-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

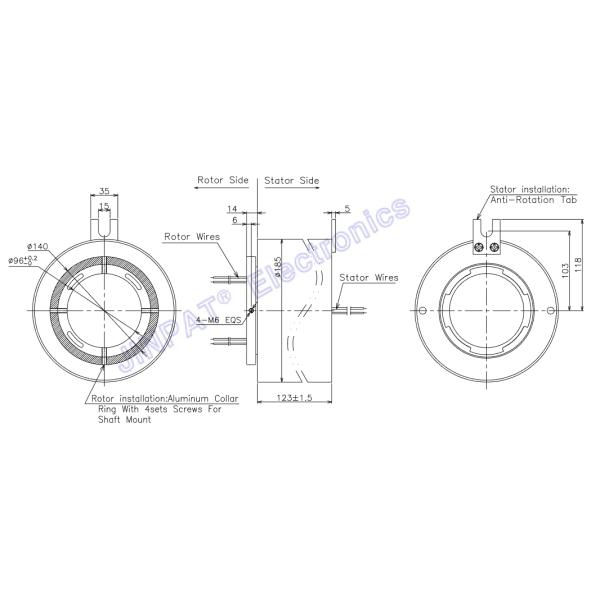

LPT120-1210-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

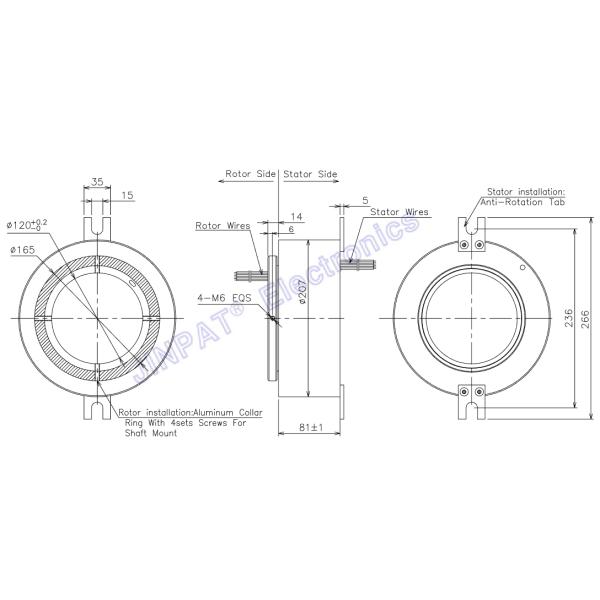

LPT120-1215-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

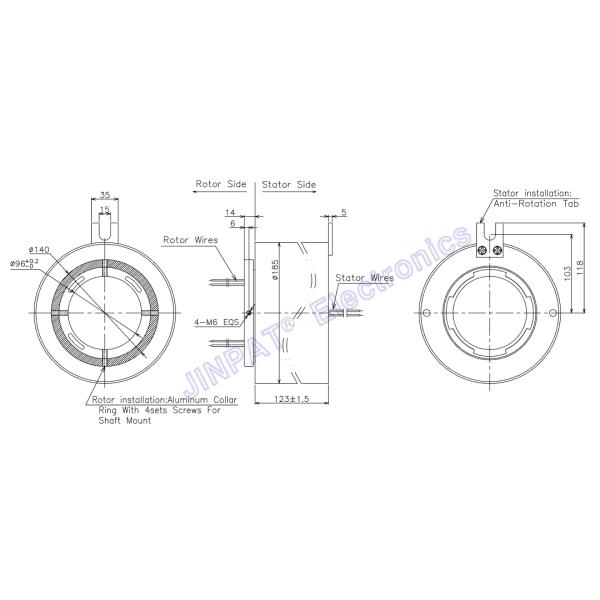

LPT120-1805-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

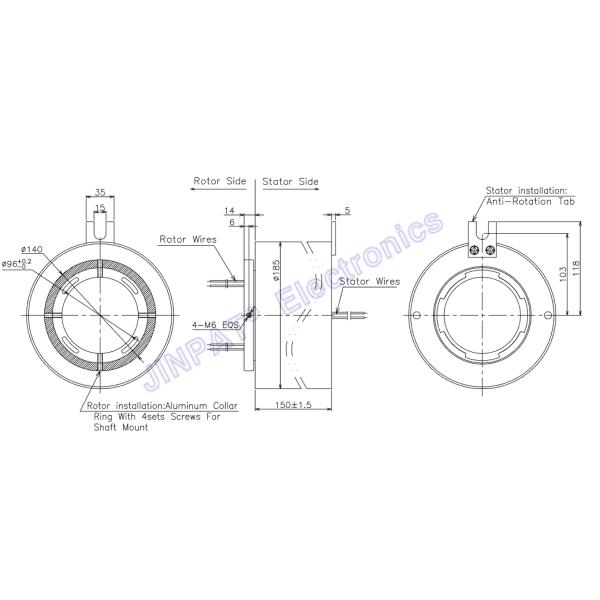

LPT120-1810-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

LPT120-1815-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

LPT120-2405-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

LPT120-2410-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm

LPT120-2415-Outline Drawing

120mm Pneumatic Through Bore Slip Ring 300rpm
