Micro Slip Ring 300rpm 8 Circuits 2A With Flange
Micro Slip Ring 300rpm 8 Circuits 2A With Flange
Micro Slip Ring 300rpm 8 Circuits 2A With Flange
Micro Slip Ring 300rpm 8 Circuits 2A With Flange
Specifications
Brand Name :
JINPAT
Model Number :
LPC-08A
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
50K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Number of Circuits :
8
Voltage :
240 VAC/DC
Current Rating :
2 amps per circuit
Application case :
Medical CT machine \ Radar Antenna
Contact Material :
Gold to Gold
Length :
21.40 mm
Name :
Micro Slip Ring Capsule
Advantage :
Low electrical noise
Description

Radar Antenna Micro Slip Ring Capsule 300rpm 8 Circuits 2A With Flange Professional solution​

Description

The LPC-08A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connection. It provides smoother running, lower torque and lower electrical noise than competitive slip rings.

The slip ring is made of brushes, conductive rings, insulation materials, binding materials, a supporting frame, precision bearings and housing etc. The brushes which are made of precious metal are in two-point contact to the ring.The LPC-08A used in any electromechanical system that requires unrestrained, continuous rotation while transmitting power and /or data from a stationary to a rotating structure.

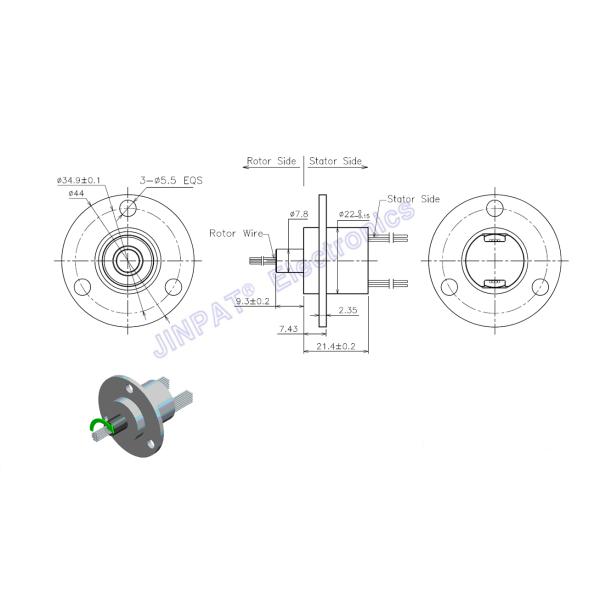

Outline Drawing

Micro Slip Ring 300rpm 8 Circuits 2A With Flange

Electronic & Electric Mechanical
Circuits Total 8 CKT

Working Speed

 0~300rpm
Detail 8x2A Contact Material Gold to Gold
Rating Voltage 0~240V AC/DC Housing Material Engineering plastics
Dielectric Strength ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) Lead Wire Length Stator:250±5mm Rotor:250±5mm
Insulation Resistance ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Value

 ≤35mΩ
Environment Remarks
Working Temperature -20°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP

IP40

 Note: "P" stands for power, "S" stands for signal.


Application picture
Micro Slip Ring 300rpm 8 Circuits 2A With Flange
