Rotary Capsule Slip Ring IP54 Electrical Connector LPC-06B
Rotary Capsule Slip Ring IP54 Electrical Connector LPC-06B
Rotary Capsule Slip Ring IP54 Electrical Connector LPC-06B
Rotary Capsule Slip Ring IP54 Electrical Connector LPC-06B
Specifications
Brand Name :
JINPAT
Model Number :
LPC-06B
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
100K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Optional :
Rotating speed
Contact Material :
Gold -Gold
typical application :
Rotary table
Housing Material :
Engineering plastics
Rating Voltage :
0~240V AC/DC
Working Humidity :
≤60%RH
Features :
Very low contact resistance
Description

The LPC-06B capsule slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPC-06B unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

LPC-06B Slip Ring parameter

Electronic & Electric Mechanical
Circuits Total 6 CKT

Working Speed

 0~300rpm
Detail 6x2A Contact Material Gold to Gold
Rating Voltage 0~240V AC/DC Housing Material Engineering plastics
Dielectric Strength ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) Lead Wire Length Stator:250±5mm Rotor:250±5mm
Insulation Resistance ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Value

 ≤35mΩ
Environment Remarks
Working Temperature -20°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP

IP40

 Note: "P" stands for power, "S" stands for signal.

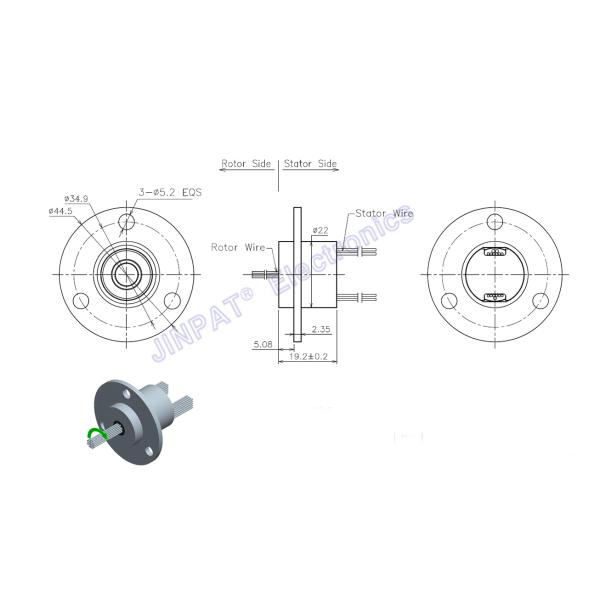

LPC-06B Slip Ring Outline Drawing

Rotary Capsule Slip Ring IP54 Electrical Connector LPC-06B

Product Image

Rotary Capsule Slip Ring IP54 Electrical Connector LPC-06B
