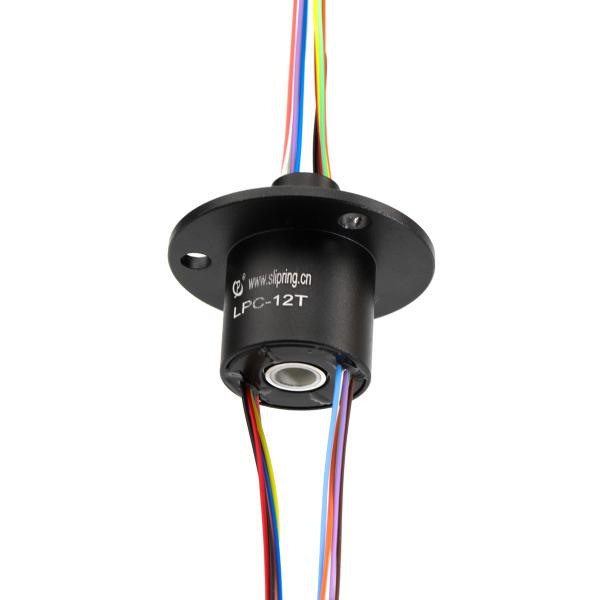

300rpm Electrical Rotary Joint IP40 12 Circuits 2A, Independent design patent
300rpm Electrical Rotary Joint IP40 12 Circuits 2A, Independent design patent
300rpm Electrical Rotary Joint IP40 12 Circuits 2A, Independent design patent
300rpm Electrical Rotary Joint IP40 12 Circuits 2A, Independent design patent
Specifications
Brand Name :
JINPAT
Model Number :
LPC-12T-A
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
50K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Rating Voltage :
240V AC/DC
Number of circuits :
12
IP Class :
IP40
Dynamic Resistance Fluctuation Value :
≤35mΩ
Housing Material :
Aluminum alloy
Contact Material :
Gold to Gold
Working Speed :
0~300rpm
Name :
Electrical Rotary Joint
Description

2A 300rpm Electrical Rotary Joint IP40 12 Circuits For Illumination Equipment

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s a key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

Benefits:

  • Low torque minimizes system torque budget
  • Compact design to fit in the most demanding space.
  • Smooth running
  • Low electrical noise
  • Quick shipment per your urgent requirement
  • 360°continuous rotation
  • High bandwidth transfer capability

300rpm Electrical Rotary Joint IP40 12 Circuits 2A, Independent design patent

Electronic & Electric Mechanical
Circuits Total 12 CKT

Working Speed

 0~300rpm
Detail 12x2A Contact Material Gold to Gold
Rating Voltage 240V AC/DC Housing Material Aluminum Alloy
Dielectric Strength ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) Lead Wire Length Stator:250±5mm Rotor:250±5mm
Insulation Resistance ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Value

 ≤35mΩ
Environment Remarks
Working Temperature -20°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP

IP40

Note: "P" stands for power, "S" stands for signal.

Product application

300rpm Electrical Rotary Joint IP40 12 Circuits 2A, Independent design patent
