Capsule Slip Ring IP40 12 Circuits 2A With Flange
Capsule Slip Ring IP40 12 Circuits 2A With Flange
Specifications
Brand Name :
JINPAT
Model Number :
LPC-12T
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
50K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Number of circuits :
12
IP Class :
IP40
Inner Diameter :
∅1.5~∅7
Housing Material :
Aluminum alloy
Contact Material :
Gold to Gold
Working Speed :
0~300rpm
Detail :
12x2A
Description

Illumination Equipment Capsule Slip Ring IP40 12 Circuits 2A With Flange

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s a key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

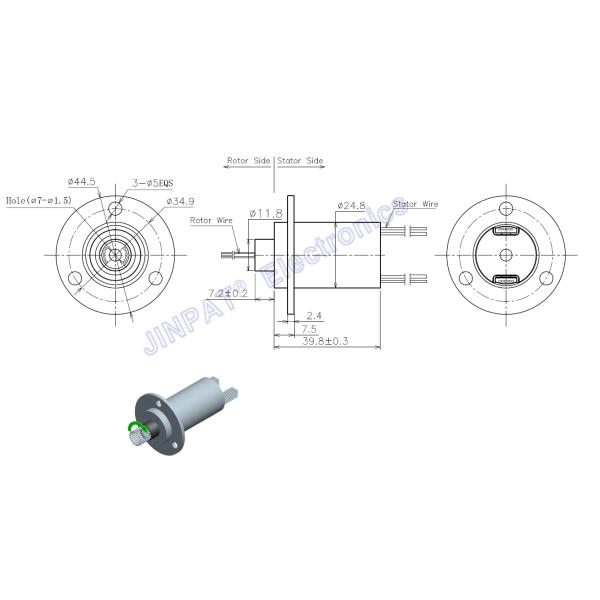

Capsule Slip Ring IP40 12 Circuits 2A With Flange

Electronic & Electric Mechanical
Circuits Total 12 CKT

Working Speed

 0~300rpm
Detail 12x2A Inner Diameter ∅1.5~∅7
Rating Voltage

0~240V AC/DC

 Contact Material Gold to Gold
Dielectric Strength ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) Housing Material Aluminum Alloy
Insulation Resistance ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S) Lead Wire Length Stator:250±5mm Rotor:250±5mm
Environment Remarks
Working Temperature -20°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP

IP40

 Note: "P" stands for power, "S" stands for signal.

Product application

Capsule Slip Ring IP40 12 Circuits 2A With Flange

Cooperative Customer Case


Capsule Slip Ring IP40 12 Circuits 2A With Flange
