Capsule Slip Ring 56 Circuits 2A LPC063-56A
Capsule Slip Ring 56 Circuits 2A LPC063-56A
Specifications
Brand Name :
JINPAT
Model Number :
LPC063-56A
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
5K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Circuits :
56 CKT
Rotating Speed :
0-300rpm
Industrial :
-20℃~+60℃
Humidity :
60%RH or higher
Life Span :
Customizable
Voltage :
240V VC/DC
Housing Material :
Engineering plastics
Description

56 Circuits 2A 240VDC Capsule Slip Ring Engineering Plastic Electrical Rotary Joint

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s a key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

Product parameter table

Electronic & Electric Mechanical
Circuits Total 56 CKT

Working Speed

 0~300rpm
Detail 56x2A Contact Material Gold to Gold
Rating Voltage 240V AC/DC Housing Material Engineering plastics
Dielectric Strength ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) Lead Wire Length Stator:250±5mm Rotor:250±5mm
Insulation Resistance ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Value

 ≤35mΩ
Environment Remarks
Working Temperature -20°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP

IP40

 Note: "P" stands for power, "S" stands for signal.

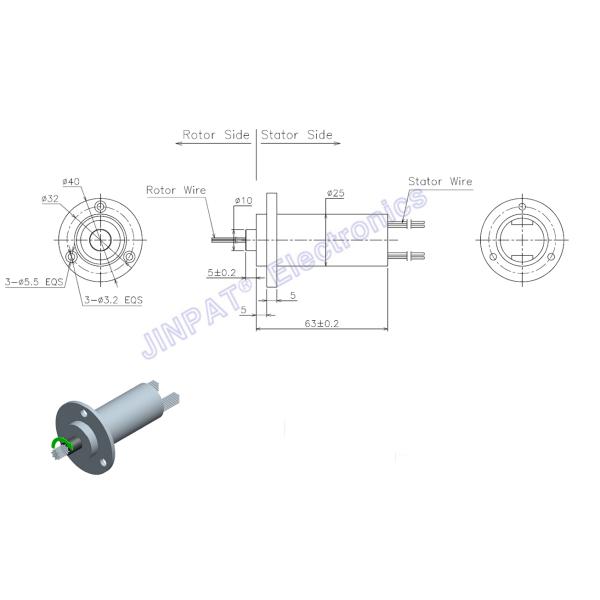

Capsule Slip Ring 56 Circuits 2A LPC063-56A

JINPAT LPC063-56A compact size slip ring shares the same number of channels with LPC-56A. The differences between the two model are basically their sizes and some properties. LPC063-56A capsule slip ring is shorter than LPC-56A, the former is only 63mm. Since it has a relatively smaller size at large, the rated voltage of LPC063-56A is 110V while the LPC-56, 220V. Meanwhile the rated current is lowered with a smaller insulation strength, which is 1.5A for each channel. If you are looking for capsule slip ring with powerful transmission capacity, JINPAT is the right company you should turn to. Contact us for more slip ring models catalogue.
