Electrically Integrated Through Hole Slip Ring Ethernet USB HDMI
Electrically Integrated Through Hole Slip Ring Ethernet USB HDMI
Specifications
Brand Name :
JINPAT
Model Number :
LPT000-0508-E2-01A
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
500 pieces /Week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Total :
10CKT
Detail :
5x8A+1x100M Ethernet
Rating Voltage :
24VDC
Dielectric Strength :
300VAC@50Hz
Insulation Resistance :
≥100MΩ@250VDC
Working Speed :
0~10RPM
Contact Material :
noble metal
Housing Material :
aluminium alloy
Description

LPT000-0508-E2-01A-Through-bore Slip Rings

Electrically integrated slip ring for Ethernet, USB, HDMI and other signals

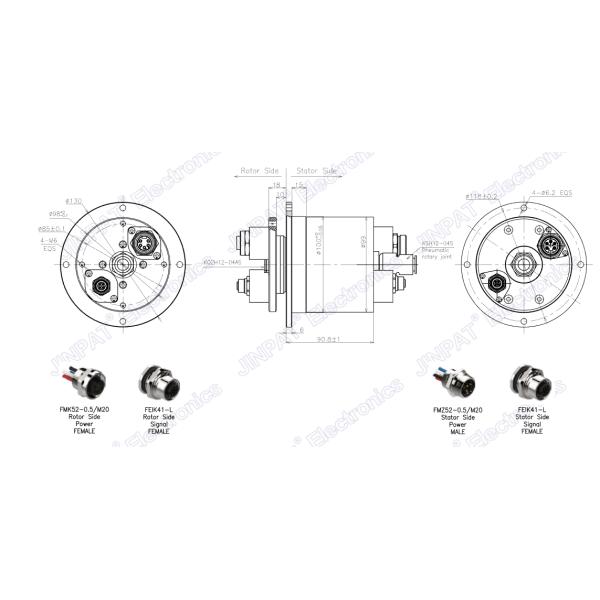

This LPT000-0508-E2-01A is a through-hole integrated slip ring. This model is a high precision conductive slip ring integrating electrical and Ethernet signals. It adopts a special structural design and advanced manufacturing technology that allow integrated transmission of current and Ethernet signals in the slip ring, while making them independent of each other with no interference. This slip ring is a weak electricity slip ring with working voltage of 24V. There are 5 8A power channel and 1 100M Ethernet channel and 1 pneumatic/hydraulic channel. This through bore slip ring adopts gold to gold contacts, with IP65 protection grading. Both the stator and rotor end uses special interface instead of wire leads. With unique structure, this slip ring has excellent electrical performance.

Electronic & Electruc Mechanical
Circuits Total 10CKT Working Speed 0~10RPM
Detail 5x8A+1x100M Ethernet Vehicle Turntable /
Rating Voltage 24VDC Contact Material

noble metal
Dielectric Strength 300VAC@50Hz Housing Material

aluminium alloy
Insulation Resistance ≥100MΩ@250VDC Lead Wire Length /
Environment
Working Temperature -20°C~+60°C
Working Humidity ≤60%RH
IP IP65

Electrically Integrated Through Hole Slip Ring Ethernet USB HDMI
