Specifications
Brand Name :
yingchuang
Model Number :
PC800
Certification :
CE,ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Acre/Acres
Price :
consultation service / Acres
Supply Ability :
Can produce 2-3 machines per month
Delivery Time :
Less than 40-60 work days
Packaging Details :
Wooden box, packaging cotton
Condition :
New
Voltage :
220V,380V ,440V
Power(W) :
30KW
Warranty :
1 Year
After-sales Service Provided :
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points :
Multifunctional
Port :
ShangHai
Description

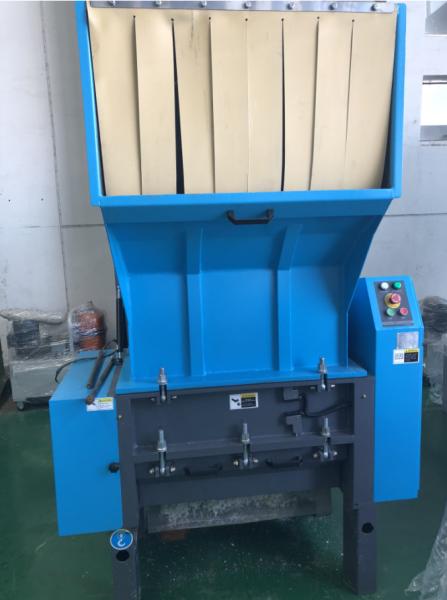

LLDPE Plastic Grinder Machine For Rotomolding Products, Etc.

  1. PC800 Plastic crusher
NO Description Parameter
1 Power supply Motor power 30Kw
Voltage 380V,50HZ
2

Machine

Chamber

Size of crushing room 805*450mm
Material of knife rest 45# steel
Main shaft(diameter) 110±0.01mm
Material of main shaft 45# Steel
3 Knife Quantity of rotary knife 30pcs
Quantity of fixed knife 4set
Material of blade SKD-11
4 Capacity Output Around 300kg/h, based on material
Thickness of screen mesh 6mm
Material of screen sieve A3 steel
Screen mesh 10mm
5

Electrical

parts

Electrical cabinet 1set
Phase sequence protection Schneider
Contactor Schneider
Electrical Relays Siemens
Sudden stop switch Made in Taiwan
Ampere meter Made in Taiwan
Outer cover 1set

6

Machine Dimension(L*W*H) 2000*1480*2300mm
Weight 2100kg
Surface treatment spraying plastics
Bearing With a device for lubrication with a syringe
Open the cover By manual

Part I, Specifications of Crusher machine

  1. Overview

◇ This machine is suitable for crush many kind of plastic products like plastic lumps, plastic sheet, plastic injection waste material and lumps and plastic film

◇ Low energy consumption, easy to install, operate and maintain

◇ Change the different diameter sieve, can get different size of final scrap.

◇ Machine automatic stop when the cutting blades are exposed.

◇ Dust curtain fitted at the feed hopper and the discharge

  1. Technical parameter of each machine
