Specifications
Brand Name :
Treering
Model Number :
Nl-CPT1500
Certification :
ISO 9001
Place of Origin :
Changzhou Jiangsu China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30 pcs per weeks
Delivery Time :
3-20 days
Packaging Details :
Plastic warp / Carton /Pallet
Accessories :
Flange ,fittings，valve， pipes
Volum :
1500L
Material :
LLDPE, UV resistant , food grade
Function :
Mixing ,storing and saving water, rain water, and recycling household water.
Advantage :
Unique rib design with various sizes, dimensions and colours
Technique :
Polyethylene
Description

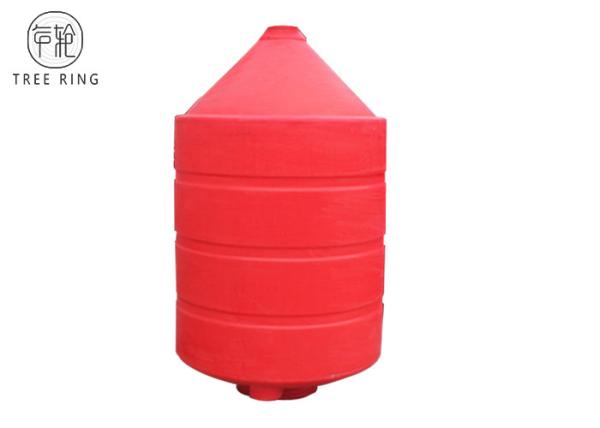

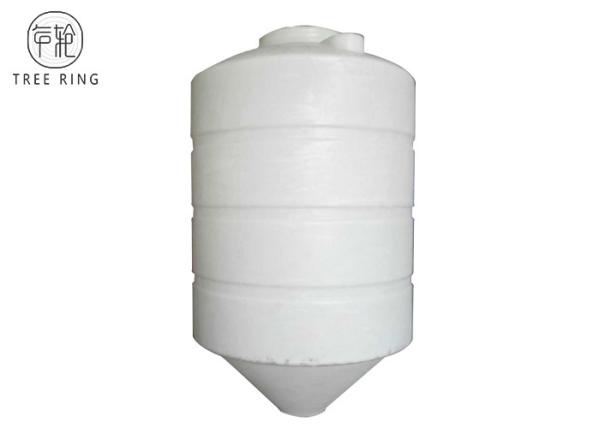

CPT1500L Total Drain Rotomolding Products Plastic Cone Bottom Specialty Rinse Tanks

Desciption

1500liter Cone Bottom tank made from the highest quality rotational molded polyethylene with
built in UV stablization . Rotomolded products are seamless, uniform in wall thickness and of
single construction, which eliminates costly fabrication processes and the need for replacement parts.

The design of our cone bottom tanks allows you to quickly and completely empty the contents of the tank.

These tanks come with a steel stand which will support the tank above the ground. The stand allows for an

easy and convenient access to the cone bottom. The tank is Semi- translucent which allows you to monitor

the Liquids level inside the tank.

cone bottom tanks can dilled any size inlet at the top which allows for convenient loading and mixing.

Besides , The conical bottom tanks can be used for a variety of purposes. Some examples would be
biodiesel processing, water treatment, oil settling and many other applications which require a chemical
resistant material and a cone shaped bottom for easy and full draining. Conical bottoms are ideal for even
draining. These tanks are essential when settling materials suspended in a fluid, as they will sink to the very
bottom and become fully drainable unlike in flat bottom tanks.
Please Notice , Poly roto tank are no Pressure tank , so if have any pressure into the tank , should be drill
air vent at the top
Suitable for growing fish, Chemical, Fertigation

UV stablized for Australian conditions

Food grade

Recyclable
Conical bottoms facilitate liquid drain out
Threaded in outlets for complete drainage
Tanks require stands to support conical bottoms
Tank walls are translucent for level viewing and equipped with gallon indicators

Sepcification

Model

CPT1500

SIze

Diameter 1200 *height 1700

THickness

6mm

Lid Size

440 mm inner diameter

Outlet

full drain outlet DN25 ,DN32 DN 50 ,DN 80

Specific Gravity

1.0 - 1.5

Level Markers

no ,if you need , we can revised mold

UV Inhibitors

Yes

Colors

Natural White For food grade , Black, Others By Request

Metal Stand

Yes , but Stand Sold Separately

Uses:

conical brewer beer/wine/tea, biodiesel tank, fermentation, chemical applications

Additional Fittings:

Available By Request ( Pipe , Threads

Application

  • Water Treatment
  • Wine Making
  • Biodiesel & Biofuels
  • Fertilizer (Ammonium Nitrate)
  • Paper Mills
  • Agricultural Grains
  • Slurry / Sludge (Settling Tanks)
  • DEF Tanks (Diesel Exhaust Fluid)

Polypropylene Cone bottom tanks are available by request

Model

Capacity

(L)

Diameter

(mm)

Height (mm)

Caliber (mm)

CPT-500L

500L

800

1250

440

CPT-1000L

1000L

1050

1500

440

CPT-1500L

1500L

1200

1700

440

CPT-2000L

2000L

1300

1850

440

CPT-3000L

 3000L 1500 2150 630

CPT-5000L

 5000L 1840 2450 630

CPT-10000L

 10000L 2200 3400 630

CPT-15000L

 15000L 2730 3500 630

CPT-20000L

 20000L 2730

4

250

 630
