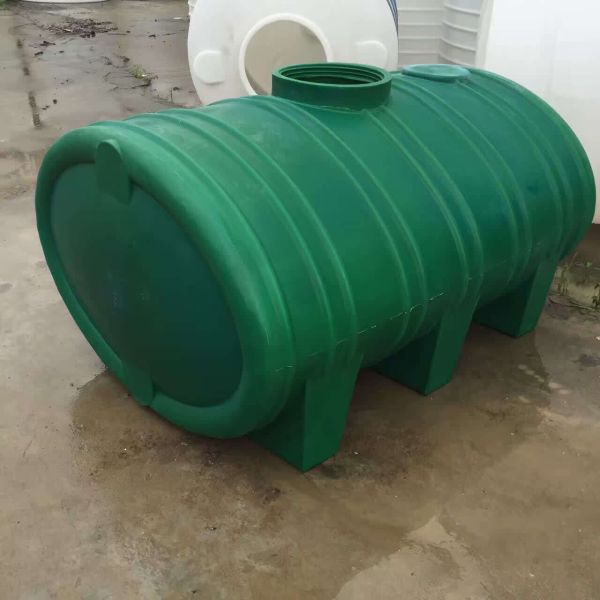

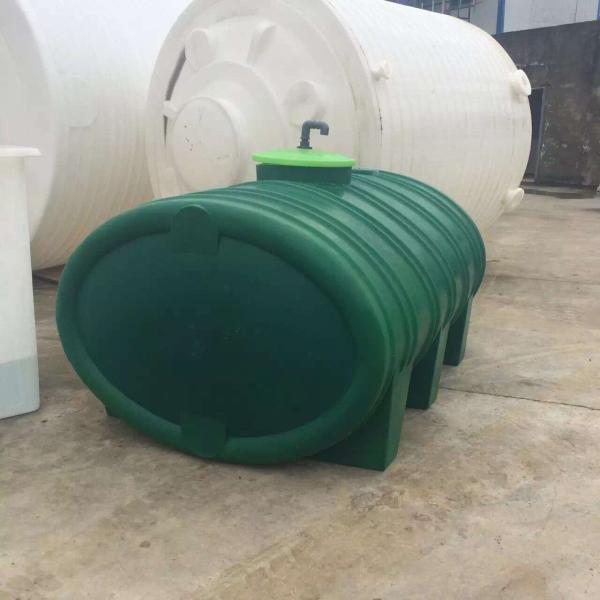

Rotomolded 2000L Underground Horizontal Poly Water Cartage Tanks For Agricultural
Rotomolded 2000L Underground Horizontal Poly Water Cartage Tanks For Agricultural
Rotomolded 2000L Underground Horizontal Poly Water Cartage Tanks For Agricultural
Rotomolded 2000L Underground Horizontal Poly Water Cartage Tanks For Agricultural
Rotomolded 2000L Underground Horizontal Poly Water Cartage Tanks For Agricultural
Rotomolded 2000L Underground Horizontal Poly Water Cartage Tanks For Agricultural
Rotomolded 2000L Underground Horizontal Poly Water Cartage Tanks For Agricultural
Rotomolded 2000L Underground Horizontal Poly Water Cartage Tanks For Agricultural
Specifications
Brand Name :
Treering
Model Number :
NL-HPT2000L
Certification :
ISO 9001
Place of Origin :
Changzhou Jiangsu China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
20pcs per weeks
Delivery Time :
3-20 days
Packaging Details :
Plastic warp / Carton /Pallet
Accessories :
Bulkhead，valve，tap
Volum :
2000L
Material :
LLDPE, UV stablized resin
Size :
L 1180* W800* H 900 mm
Guarantee :
1 year manufacturer warranty
Usage :
industrial and agricultural use
Description
2000L Polyethylene Rotomolded Horizontal Water Cartage Tanks

Desciption of the water tank

Treering Company Horizontal Bulk Storage Leg Tanks Made by 100% vergin LLDPE material , using
Rotomolding technique .

The rotational molding is a thermoplastic fabrication technique that manufactures hollow products by using
heat and a revolving metal mold. Rotomolded products are seamless, uniform in wall thickness and of
single construction, which eliminates costly fabrication processes and the need for replacement parts.
Huge water tank as Water conservation,which is the most cost-effective and environmentally sound way to
Horizontal Water storage tanks can be used on Truck , and the tank bottom we normally will drilled a outlet
(drawing 1" -2") ,install a tap or brass ball valve

Plastic Horizontal water tanks usage

Chemical storage


Transport liquids


Molasses, liquid fertiliser and liquid feed transportation tank


Mixer tank


Sprayer tank for agricultural purposes


Potable water tank (black tank only)


Civil engineering applications where mains water is not available


Tank Features

2000 Litre capacity


Manufactured from UV stabilised Polyethylene (LLDPE) specially formulated for transport tanks


Tank will not rust or corrode and is impact resistant


Rotationally moulded one piece design


Thick walls : 5 -10 mm


Full drainage sump


Large 510mm lid


Spill containment lip surrounds the lid


Moulded pin holes allow the tank to be mounted to flat surfaces


2” BSP outlet (other sizes are available upon request)


Choice of tank colour available

Advantages :


100% food grade plastic ----helps the water to retain its original characteristic over a period of time.


Half automic roto molded technology ----used to prepare the tanks in one piece so that there are no joints.

This prevents leakage and longevity of the tanks.


380 mm top access inspection hatch


Ribbed sides for extra strength


Outlets: 1″ standard size. Other outlets sizes available upto request

Sepcification

Model
HPT 2000 L Horizontal tank
Capacity
2000 liter ( 528 U.S. Gallon)
Dimensions
L 2000* W1420* H 1080 mm
Liquid Access
1 Outlet , 1 Manway / Lid
Weight
100kg- 130kg
Lids diameter
380mm
Fitting size
1″ -4"
Specific Gravity
 1.0 -1.65

Advantage

  • Corrosion proof
  • Light weight, easy to handle and clean
  • Temperature Resistance
  • Food grades of Polyethylene
  • Maintenance-free

All the size sheet for the water tank

Model Capacity
(Litres)		 Capacity (Gallons) Manhole (inner)Access Length (mm) Width (mm) Height(mm)
HPT 0.5T 500 L 110 380 1180 800 900
HPT 1T 1000 L 220 380 1500 1000 980
HPT2T 2000 L 440 510 2000 1420 1080
HPT 3T 3000 L 750 510 2250 1430 1050
HPT 5T 5000 L 1320 510 3700 1700 1370
HPT 10T 10,000 L 2600 650 5000 2000 1450


Rotomolded 2000L Underground Horizontal Poly Water Cartage Tanks For Agricultural

Rotomolded 2000L Underground Horizontal Poly Water Cartage Tanks For Agricultural

The Outlet , we normally using flange (DN 20 to DN 100) as Drain
