Specifications
Brand Name :
Treering
Model Number :
NL-VC200L
Certification :
ISO 9001
Place of Origin :
Changzhou Jiangsu China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 pcs per weeks
Delivery Time :
3-20 days
Packaging Details :
Plastic warp / Carton /Pallet
Technique :
Rotomolding
Color :
white , black , blue , red , yellow ,any others ...
Feture :
Durable ,UV stabilised
Application :
Aquaculture ,water, liquid, or solids storage, planting pots, bathing, fish & reptile breeding, and containment vessels for other tanks
UV Stabilised :
Yes
Description

Open Top Flat Bottom Polyethylene (Poly / Plastic) Cylindrical Chemical Storage Tanks For Handling Acids And Caustics


Description

Treering Company Plastic storage tank are made of Polyethylene(LLDPE) with U.V. inhibitors by rotomolding technique

Tanks can nest for shipping and storage.

The tank applications include aquaculture/ fish farming, seafood use, dry goods

storage, and various other applications. Tank sizes are available from 15Gallon to 1000 gallons. Tank tops,

sides and bottom are ribbed for strength. The Tank have Cover . They are extremely portable.

These Water Troughs do not rust or corrode and are impact resistant and long lasting


One piece tank construction ensures long term structural strength

Features of the Plastic Water Tanks

Customized Size and shape

Customized Any color

Customized the thickness of the tank

Customized the Cover

Food grade LLDPE material

Made from superior grade Polyethylene resins

Capacity range from 25L to 5000L

Edge lips provide wall strength & minimized deformation

Excellent containment vessels to meet spillage regulatins

Outer Drain avaiable

Specifications

  Model
  Water tank


Size


D615*H1060mm


  Thickness of the wall
  3mm - 10mm

Lid Size

Customized Lid/Cover ,welded lids

  Color
  Black , white ,red ,green , customized any color
  Volume of Tank(litre)

 200L


Feature


Rust-proof, lightweight, and extremely durable


  Tank Accessories

  Drain fitting ,Steel Support leg , Pipe   ( Selection)

  Fitting Size

DN15 ,DN20 ,DN25 ,DN32.....DN 65 DN80,DN100

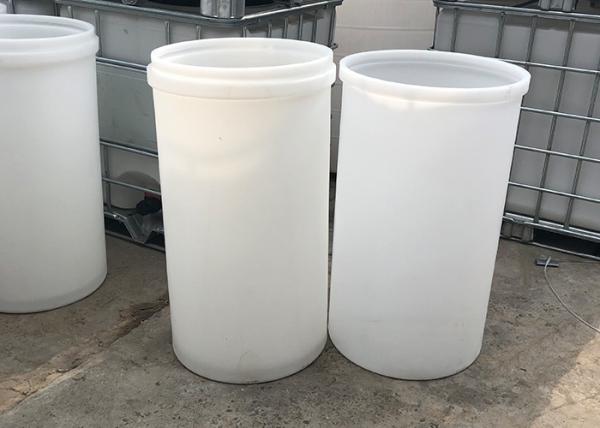

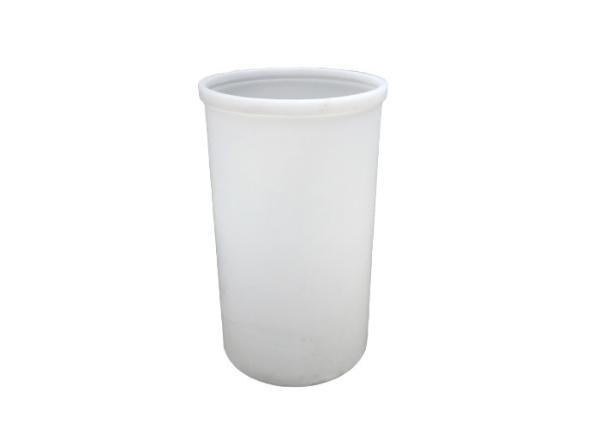

Picture Show

Open Top Flat Bottom Cylindrical Chemical Dosing Tank For Handling Acids And CausticsOpen Top Flat Bottom Cylindrical Chemical Dosing Tank For Handling Acids And Caustics

Complete Size of the open top Plastic Water Tanks

Mould Capacity Top Diameter (mm) Bottom Diameter (mm) Height (mm)
M25 25L 360 265 410
M45L 45L 430 325 475
M50L 50L 480 350 430
M70L 70L 534 406 460
M100L 100L H 590 435 615
M150L 150L 650 500 720
M200L 200L 720 575 740
M260L 260 830 670 720
M300L 300L 830 670 850
M400L 400L 950 800 750
M500L 500L 1015 850 840
M500L -2 500L 1130 920 825
M600L 600L 1090 915 870
M650L 650 1070 1000 830
M700L 700 1205 900 830
M800L 800L 1290 1115 700
M900L 900L 1350 1220 800
M900 L -2 900L 1350 1220 830
M1000L 1000L 1425 1270 755
M1500L 1500L 1600 1400 930
M2000L 2000L 1800 1600 1000
M3500L 3500L 2300 2100 1060
M5000L 5000L 2300 2100 1200
