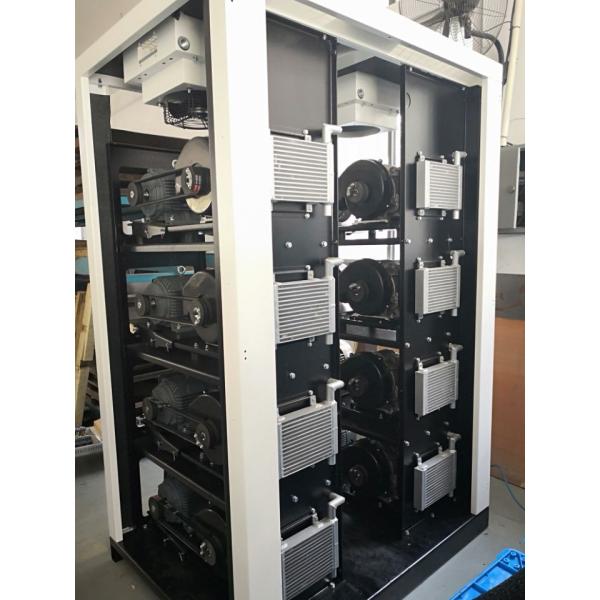

Lightweight Central Pneumatic Oilless Air Compressor For Medical Equipment Manufacturing
Lightweight Central Pneumatic Oilless Air Compressor For Medical Equipment Manufacturing
Lightweight Central Pneumatic Oilless Air Compressor For Medical Equipment Manufacturing
Lightweight Central Pneumatic Oilless Air Compressor For Medical Equipment Manufacturing
Specifications
Brand Name :
Shanghai Rotorcomp
Model Number :
Silent Oil Free Scroll Compressor
Certification :
ISO.TUV,CE,GS
Place of Origin :
China
MOQ :
Min.:1set
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, D/P, D/A
Supply Ability :
3,000 sets/per month
Delivery Time :
15-20 working days
Packaging Details :
Exported Wooden Package
Type :
Oil Free Scroll
Model :
RC-D18/08-S1
Power :
16.5KW/22HP
Working Pressure :
8-9.9Bar
Cooling System :
more than 30% air cooling performance
Controller :
Intelligent colorful touchable controller
Design :
Design in Germany
Air end :
Design in Germany
Dimension :
1250*760*1560
Weight :
630Kg
Certificates :
Class-0,ISO,CE,TUV
Description

Lightweight Central Pneumatic Oilless Air Compressor For Medical Equipment Manufacturing

Applications of silent oil free scroll compressor:

In an oil-free compressor, the air is compressed entirely through the action of the screws, without the assistance of an oil seal.They usually have lower maximal discharge pressure capability as a result Oil-free compressors are used in applications where oil carry-over is not acceptable.

such as:

4S AUTOSHOPS
Precision equipment manufacturing(air track,grating gas seal etc)

Medical equipment manufacturing (dentist, medical gas source)

semiconductor manufacturing

Pharmaceutical industry

Food&Beverage&textile industry

Gas separation equipment( oxygen&nitrogen)

The principle of Oil Free Scroll Compressor

The oil-free scroll air compressor and the orbiting scroll maintain a small radius of plane motion in a certain phase, and the dynamic and fixed scrolls mesh to form a plurality of crescent-shaped closed compression chambers, and the gas sucked into the working chamber is subsequently formed into a crescent.

The compression chamber of the shape is gradually compressed, and then the exhaust port at the center of the stationary plate is discharged.

Advanced design for air cooling system better performance than other compressor 15-20%

Model

Capacity(m3/min)

Power(kw)

In/outlet

Noise

Dimension

Weight

8bar

Motor

dB(A)

L×W×H in mm

kg

RC-D18/08-S1

1.8

16.5

3/4

60

1250×760×1560

630

Note:

1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;

2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency converters (optional).

4. 1 year warranty, 2 years warranty for air end

About Us

Shanghai Rotorcomp Screw Compressor Co., Ltd founded in 1999, our company was a manufacturer of piston air compressors from 1985-1999. After 2000 our company headquarters moved to the international metropolis Shanghai and focused on screw air compressors, pressure vessel, refrigeration dryer, adsorption dryer and air filters with the support of Rotorcomp Verdichter Gmbh in German.

Shanghai Rotorcomp Screw Compressor Co. Ltd., Shanghai Ziqi Container Co.Ltd. have been cooperated with 2010 Beijing Nankou Railway Transit Machinery Co. Ltd., which belongs to China CNR Corporation Limited, as the strategic cooperation partner.

The Beijing Nankou company has processing equipment more than 100 sets, including large-scale precision equipment 90 sets and imported equipment 70 sets. Such as Hardinge double-ended grinder, Toshiba horizontal machining center, BW CNC vertical and horizontal machining center, Holroyd rotor profile grinder and Zeiss 3D measuring machine.
