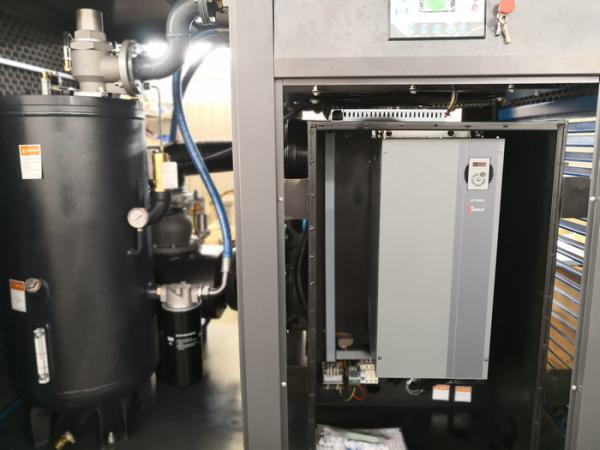

Eco Friendly Rotorcomp Screw Compressor , Two Stage Air Compressor

Rotorcomp Screw Compressor Description

Ultimate Flexibility

• With a simplified, easy to maintain structure and with long life components, a trouble-free operation is provided
Compact machine design provides minimum working space

A Revolutionary Advancement

Going far beyond combining the compressor, dryer and filters in one package, smart integration also:

• Eliminates vulnerable interconnecting piping
• Minimizes pressure losses and drops
• Integrates the compressor, dryer and filter into an energy-reducing, optimized system
• Incorporates the entire supply-side system into one whisper-quiet package, enabling installation virtually anywhere
• Provides generous space to promote cooling and to allow unobstructed service

Dry and Clean Compressed Air

The Right Air Quality to Do the Job

• All Total Air System packages come fully equipped with an integral, energy-saving air treatment center including a high-performance air dryer and filtration pack to remove water, oil and particles from the air stream.
• All components are perfectly matched to deliver the right air quality to increase air-powered tool and system equipment life.

State-of-the-art Screw Element

• Original Germany Rotorcomp screw rotors
• Advanced SAP profile design
• The material of the rotors is American specialty steel
• Two-stage dust removal and filtering system with efficiency of up to 99.9% even in heavy-duty environments
• Extends the service life of the compressor parts and components, ensures air quality.

Efficient Separation System

• Reduction of pressure drops and energy costs
• Low oil consumption ensures minimal maintenance costs and long compressor
• lifetime

Quality air with low oil content:

• three step air-oil separation (centrifuge, gravity, filter)
• oil content: less than 3 ppm by weight

-hinged cover for easy separator element change

Advanced Computer Controller and Monitoring System

• Overall system performance status with pro-active service indications, alarms for malfunctions and safety shutdowns
• All monitoring and control functions via one interface, English display
• Wide communication possibilities

Integration possible in many process control systems.

Sample calculation of energy saving:

For example a standard 55kW screw compressor delivers air at 70% loading and operates 5800 hours per years. Taking electricity cost of USD 0.15/kWH, the additional energy consumed as comparing with VSD compressor will be:

A. Energy consumed during unload operation assuming unload shaft power absorbed is 45% of full load amount: 30% unload times x loss during unload time = (45% x 55kW) x 5800 hour/year x USD 0.15 = USD 6,460/year.

B. Energy consumed due to cut-in/cut-out pressure band of 2 bar.g assuming this counts for 14% of full load amount: 70% loading time x additional 2 bar.g of differential pressure loss = (14% x 55kW) x 5800 hour/year x USD 0.15 = USD 4,689/year.

Total energy saved by using VSD compressor will be = USD 6,460/year + USD 4,689/year = USD 11,149/year.

In a conclusion, a VSD compressor can save annually the electricity cost of USD 11,149, 3 years can then save USD 11,149 x 3 = USD 33,447 which could be more than capital investment for purchasing another VSD compressor.

15KW VSD air cooling compressor parameters

Our Advantage:

Every permanent magnet variable-frequency air compressor produced by Wan Beardsley through sophisticated air compressor vector frequency control technology reaches national grade-2 energy-saving effect, some products have grade-one energy efficiency.

Shanghai rotorcomp screw air compressor is featured by high efficiency, low noise, small vibration, small volume, low expense, convenient maintenance, beautiful appearance and so on,

tThe product uses intelligent module control system and favorable human-machine interface to realize fault self diagnosis, servo-type gas flow automatic adjustment and 24-hour unattended operation, and it belongs to one of the most advanced machine type both home and abroad.

At present, Our PM VSD screw air compressors include: integrated permanent magnet variable-frequency series, non-inductive permanent magnet variable-frequency series, s

ervo permanent magnet variable-frequency series

, low-pressure permanent magnet variable-frequency series,

two-stage compression permanent magnet variable-frequency series,

oil cooling permanent magnet variable-frequency series of screw air compressors,

refrigerated dryer series, adsorption dryer series, combined dryer series, high-efficiency precision dryer, gasholder, etc.

Products are extensively applied to industries like machinery, furniture, textile, chemical fiber, medicine, food, metallurgy, electronics, war industry, environmental protection, etc

Shanghai rotorcomp points of each installation with a variety of sensors can be. the measurement of the running state and the all Chinese display on the screen, simple operation, high reliability. It has the function of self checking root, according to the user demand volume, automatic adjustment of running state. the interests of customers: monitoring and advanced

communication systems make the operation of the compressor is more reliable, higher efficiency and lower maintenance costs, the computer control system to make the machine unload loss minimum, prolong the service life of the compressor.

Shanghai rotorcomp Air System can be installed where you need compressed air. Its low noise operation and integrated air treatment equipment eliminates the need for a separate compressor room. All our compressors are tested and delivered ready for use. The integrated options will reduce installation costs and pressure drops significantly, thus saving additional energy cost.

Shanghai rotorcomp compressors have integrated dryer, filters and oil-water separator available to protect your compressed air network. This quality air expands the life of equipment, increasing efficiency and ensuring quality in your final product.
