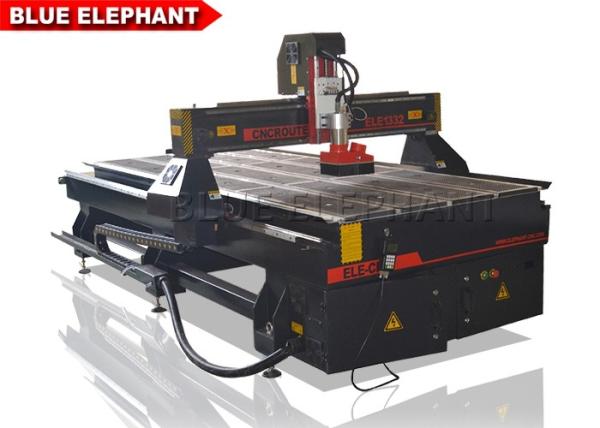

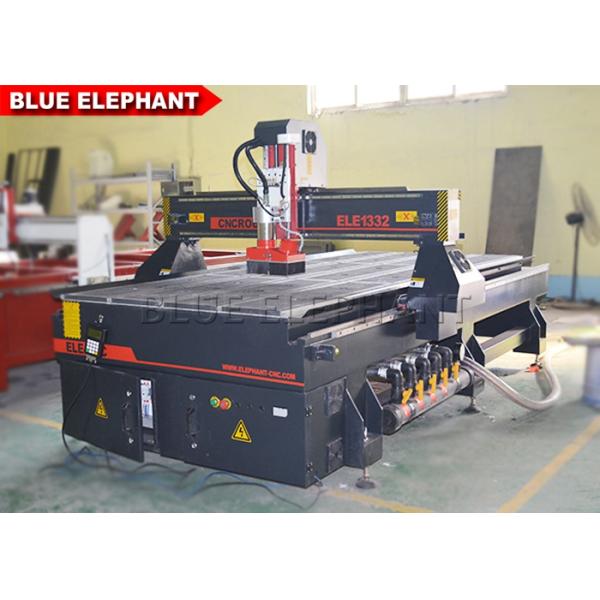

Small Marble Engraving Machine , Granite Stone Engraving Equipment Japan YASKAWA Servo
Small Marble Engraving Machine , Granite Stone Engraving Equipment Japan YASKAWA Servo
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1332
Certification :
CE, ISO9001，SGS，CIQ
Place of Origin :
Jinan City, Shandong Province,China
MOQ :
1set
Price :
15999-25999$
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets per Month
Delivery Time :
15-20working days
Packaging Details :
Standard marine export plywood case
Table Surface :
T-slot Table (Option: Vacuum and T-slot working table)
Frame :
Welded Structure
X, Y Structure :
Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure :
Hiwin Rail Linear Bearings and Ball Screw
Drive Motors :
Japan YASKAWA servo
Spindle Power :
3kw Italy HSD air cooling spindle
Description

3kw HSD air cooling spindle from Italy , ELE - 1332 cnc carving marble granite stone machine with high speed

Features of ELE- 1332 cnc router:

1 . 3kw HSD air cooling spindle from Italy

2 . 3.7kw DELTA inverter from Taiwan

3 . Original DSP controller

4 . Japan YASKAWA servo

5 . Dust collector

6 . Big control box with double doors

7 . 220v, 1 phase, 50/60HZ

Applications of ELE- 1332 cnc router:

1 . Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2 . Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3 . Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.

4 . relief sculpture and 3D engraving
5 . Cylindrical object

Parameters of ELE- 1332 cnc router:

Number Description Parameter
1 X,Y,Z Working Area 1300x3200x200mm
2 Table Size 1480×3750mm
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z Repositioning Accuracy ±0.03mm
5 Table Surface T-slot Table (Option: Vacuum and T-slot working table)
6 Frame Welded Structure
7 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings
8 Z Structure Hiwin Rail Linear Bearings and Ball Screw
9 Max. Power Consumption (Without Spindle) 3.2Kw
10 Max. Rapid Travel Rate 33000mm/min
11 Max. Working Speed 25000mm/min
12 Spindle Power 3kw Italy HSD air cooling spindle
13 Spindle Speed 0-18000RPM
14 Drive Motors Japan YASKAWA servo
15 Working Voltage

220v, 1 phase, 50/60HZ

(Option: AC380/220V/50/60Hz,3PH)
16 Command Language G Code
17 Operating System DSP System
18 Computer Interface USB
19 Flash Memory 128M(U Disk)
20 Collet ER25
21 X,Y Resolution <0.01mm
22 Software Compatibility Type3/UcancameV9 Software, (Option: Artcam Software)
23 Running Environment Temperature 0 - 45 Centigrade
24 Relative Humidity 30% - 75%

1.Guarantee & After-Sales Service
1.1 One year warranty under normal use and we supply maintenance for life for free.
1.2 24 hours technical support by phone, e-mail, SKYPE, MSN or Remote.
1.3 Free trainings to make sure you master the operation of cnc router.
1.4 English operation manual, popular and easy to understand.
2.OEM Service Available
2.1 Usually, we will manufacture the machine as our regular design.
2.2 X Y Z Working Area could be customized designing.
2.3 Special configuration could be customized designing.
3.Delivery Time (Production procedure)
3.1 For ELE 3 axis machine with standard specification, usually 20 days.
3.2 For ELE 4 axis machine with standard specification, usually 60 days.
3.3 For ELE 5 axis machine, OEM or non-standard models, usually 120 days.
4.Payment Terms
4.1 T/T in advance.
4.2 Western union: we can accept small payment (below $3000), but the banking charges shall be paid by the buyer.

Our Service

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems,

we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts

have any problems, we can change the old machine parts to new ones free, but you should pay all

the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts

with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or MSN) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8. Machine will be adjusted before it is delivered , operation disk/CD was included.

Company Information

Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .

We have always been developing to the research and manufacturer of CNC router machine and laser

cutting engraving machine .

We have our R & D department , Quality control department , and after sale &service department .

Our products are widely used in Woodworking ,Advertising , Model ,Electric , CAD/CAM Industry model ,

Clothing , Package Printing , Marking , Laser sealing and so on .

We had got CE and FDA certification always offer best quality machine .

Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler Platform !

Just looking forward to service every customer, like you .
