Wood Cutting Desktop Cnc Engraving Machine , 5.5KW Aluminum / Acrylic Engraving Machine
Wood Cutting Desktop Cnc Engraving Machine , 5.5KW Aluminum / Acrylic Engraving Machine
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO9001，SGS，CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $5,999 - 16,999 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per
Delivery Time :
15-20 working days
Packaging Details :
Standard marine export plywood case
Voltage: :
AC380V/50/60Hz,3PH (Option: 220V)
Dimension(L*W*H): :
3200*1840*1900mm
Inverter: :
5.5KW DELTA inverter
Spindle power: :
3kw HSD air cooling spindle*2
spinlde speed: :
0-18000RPM
Transmission: :
Taiwan TBI Ball Screw
Guide rail: :
Hiwin 25# Square Guide Rail
Drive motor: :
Stepper
Description

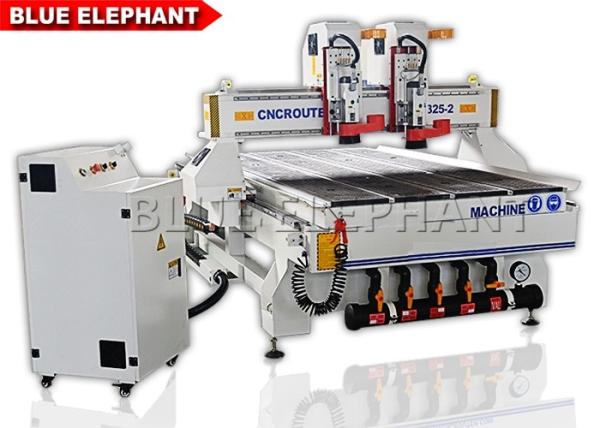

3D double heads 4*8ft wood cnc router , cnc 1325 wood cutting machine for aluminum , pvc , acrylic

Features

• 1300*2500mm*200mm effective working area

• Double separate heads with 2 pieces 3kw Italy HSD spindle

• Vacuum & T-slot working table

• 5.5kw Taiwan DELTA inverter

• Z axis with Taiwan TBI Ball screw transmission

• X,Y axis with high precision helical rack gear transmission

• X,Y,Z axis with Taiwan #25 HIWIN Linear Guide

• DSP control system ,Original type

• Stepper motor and driver

• Double motors for Y axis

• Tool calibration sensor

• Auto Oil lubrication system

• Switch: Japanese OMRON Switch

• Cable: Highly flexible towline; fire-resistant double-sheathed cable.

• Artcam /Type 3 software

• Voltage: 380V, 3 phase, 50/60HZ (220v,1phase or 3phase for your option)

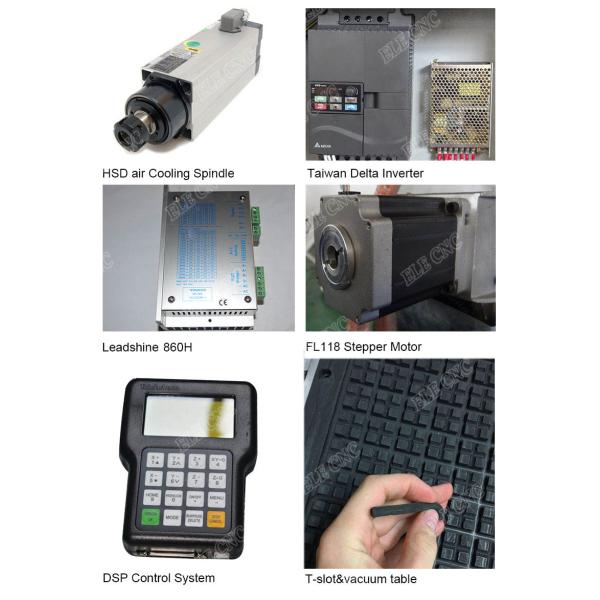

Machine details

Wood Cutting Desktop Cnc Engraving Machine , 5.5KW Aluminum / Acrylic Engraving Machine

Technical Parameters:

Number Description Parameter
1 X,Y,Z Working Area 1300x2500x200mm
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z Repositioning Accuracy ±0.03mm
5 Table Surface T-slot&Vacuum working Table
6 Frame structure Cast iron
7 X, Y Structure 25#Taiwan HIWIN Linear guide and helical rack
8 Z Structure Ball screw and#25 Taiwan HIWIN Linear guide
9 Stepper Motor and driver Stepper
10 Max. Rapid Travel Rate 45000mm/min
11 Max. Working Speed 30000mm/min
12 Optional parts Dust collector ,vacuum pump
13 Spindle Speed 0-18000RPM
14 Spindle power 3kw HSD air cooling spindle*2pcs
15 Inverter 5.5kw Delta
16 Command Language G Code
17 Control System DSP
18 Computer Interface USB
19 Flash Memory 512M(U Disk)
20 Collet ER20
21 X,Y Resolution <0.01mm
22 Software Compatibility Type3 Software, (Option: Artcam Software)
23 Running Environment Temperature 0 - 45 Centigrade
24 Relative Humidity 30% - 75%

Application

Furniture:ideally suitable for mass processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.

Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.
