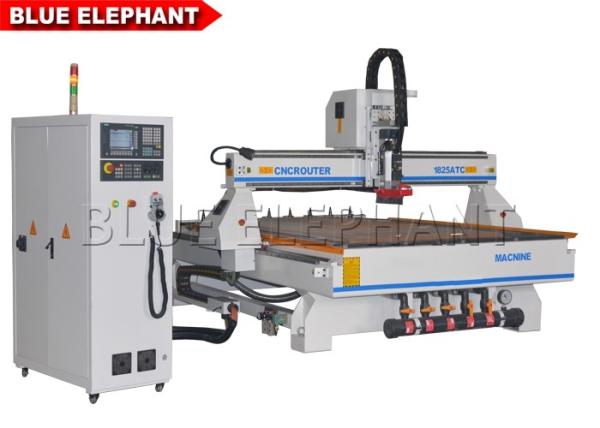

Germany Siemens Servo ATC CNC Router For Sign Making 9KW HSD ATC Spindle
Germany Siemens Servo ATC CNC Router For Sign Making 9KW HSD ATC Spindle
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1825
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province,China
MOQ :
1set
Price :
15999-25999$
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets per Month
Delivery Time :
15-20days
Packaging Details :
polywood box package for desktop cnc milling machine
Delivery Detail :
15 days after confirmation of payment
Spindle Power :
9KW HSD ATC spindle from Italy
Spindle Speed :
0-24000RPM
Drive Motors :
Germany SIEMENS Servo Motor Driver(optional:Japan YASKAWA Servo Motor Driver)
Operating System :
Germany SIEMENS control system (Optional:SYNTEC control system from Taiwan)
X, Y Structure :
Gear and rack transmission, Taiwan HIWIN Linear Rail
Z Structure :
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Description

Germany Siemens Servo drivers and motors ELE 1825 atc 3d engraving wood cnc router / wooded cnc router machine price

Product Features

1 . Our Linear ATC is with world top quality and global service components

2 . Excellent performance:The working speed: 30m/min, the changing tool bits just need 8 second, the precision is ±0.01/300mm.

3 . T-slot vacuum table which is double use with vacuum table and Aluminum T slot table.

4 . Germany SIEMENS control system.

5 . Germany Siemens Servo drivers and motors.

6 . Lubricating system and Tool sensor calibration.

Technical Parameter and Machine Parts

1 Model DX-1325ATC/DX-1530ATC/DX-1825ATC/DX-1836ATC/DX-2030ATC
2 X,Y,Z Working Area

1300*2500mm/1500*3000mm/1800*2500mm/1800*3600mm/2000*3000mm

Z axis:200mm
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z Repositioning Accuracy ±0.03mm
5 Table Surface Vacuum and T-slot Combined (Option: T-slot Table)
6 Frame Thicken steel Square Tube Heavy structure , 8mm thicken steel gantry with T type
7 X, Y Structure Gear and rack transmission, Taiwan HIWIN Linear Rail
8 Z Structure Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
9 Max. Power Consumption (Without Spindle) 4.5Kw
10 Max. Rapid Travel Rate 60000mm/min
11 Max. Working Speed 25000mm/min
12 Spindle Power 9KW HSD ATC spindle from Italy
13 Spindle Speed 0-24000RPM
14 Drive Motors Germany SIEMENS Servo Motor Driver(optional:Japan YASKAWA Servo Motor Driver)
15 Working Voltage AC380V/50/60Hz,3PH (Option: 220V)
16 Command Language G Code
17 Operating System Germany SIEMENS control system (Optional:SYNTEC control system from Taiwan)
18 Computer Interface USB interface
20 Collet ISO30
21 Inverter Taiwan DELTA 11kw
22 Software Compatibility

Type 3 /Artcam /Ucancam

Applied Industries

1 . Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2 . Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3 . Die industry: A sculpture of copper, aluminum, iron and other metal mold s, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4 . Relief sculpture and 3D engraving
5 . Cylindrical object

After-Sales Service

1 , Within 7 days since your local customs clearance: if the cnc machine’s any parts has any problems, we will change it free.

2 , Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have anyproblems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3 , Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4 , We offer 24 hours technical support by call, email

5 , Our technician can give you remote guide online(Skype or MSN) if you have any question

6 , We can record videos of operating the laser machine

7 , Free training course in our factory

8 . Machine will be adjusted before it is delivered , operation disk/CD was included.
