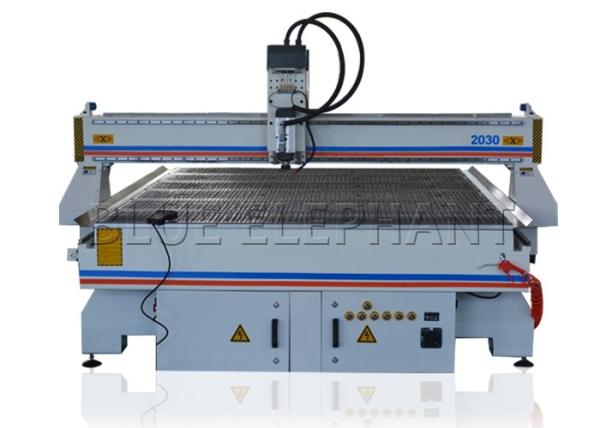

Cabinets Making Cnc Shape Cutting Machine , 4.5kw Metal Plate Engraving Machine
Cabinets Making Cnc Shape Cutting Machine , 4.5kw Metal Plate Engraving Machine
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE2030
Certification :
CE, ISO9001，SGS，CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1table
Price :
3999-12999
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets per Month
Delivery Time :
15-30days
Packaging Details :
Standard marine export plywood case
Packaging Details: :
Free fumigation wooden box for cnc woodworking machine
Delivery Detail: :
15 days after payment
Spindle :
4.5kw Air cooling Italy HSD spindle
Inverter :
5.5kw Delta inverter
Spindle rotation: :
18000rpm
Control System :
Original NCstudio control,with NK105 hand controller
Description

3D relief / doors / wood cnc router cabinets making cnc woodworking machine cnc router machine

Advantages:

1. Big and thick welded steel structure,square tube thickness upto 10mm.

2. 4.5KW Italy HSD air cooling spindle,world top brand.
3. Japan Yaskawa servo motor,world top brand,very powerful and accurate,Z axis is with brake.

4. NCstudio control system,with NK105 hand controller,doesn't need connect with PC.

5. Taiwan HIWIN square linear guide for XYZ axis,high precision,lower noise.

6. Helical rack transmission for XY axis,stable and powerful.

7. Taiwan TBI ballscrew transmission for Z axis,world top brand,most accurate precision.

8. Vacuum and T-slot table,double use.

Options:

  • 6kw/7kw bigger power spindle

  • Taiwan DELTA servo motor

  • DSP control/ Taiwan SYNTEC control

  • ATC function

  • Multi heads

  • dust collector

  • vacuum pump

  • water cooling sprayer for metal work

  • rotary device(4th axis)

Parameter:

working area 2000X3000X200mm
Max moving speed 40000mm/min
Max Engraving Speed 25000mm/min
Reposition Accuracy <0.05/300mm
Spindle 4.5kw Air cooling Italy HSD spindle
Inverter 5.5kw Delta inverter
Spindle rotation: 18000rpm
Transmission X, Y axis: helical rack; Z axis: imported TBI Ball Screw
X, Y, Z Rail Taiwan HIWIN Square Rail
Beam Steel
Frame Tube structure
Table surface vacuum and T slot combined
Control System Original NCstudio control,with NK105 hand controller

Typeset

software

 Type3, ArtCAM
Motor/ Driver YASKAWA Motor from Japan
Voltage: AC380V/50HZ

Application:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture,

wooden door, screen,MDF, craft sash, composite gates, cupboard doors,

interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic en

-graving and cutting, crystal word making, blaster molding,and other adverti

-sing materials derivatives making.

3. die industry: A sculpture of copper, aluminum, iron and other metal molds,

as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks a

-nd other non-metallic mold.

4. relief sculpture and 3D engraving

5, cylinders engraving such as wood table legs etc.

Warranty and technical support of cnc router machine

18 months for the whole machine

24 Hours technical support by email or calling

user friendly English manual and Video CD for machine operation and maintain
