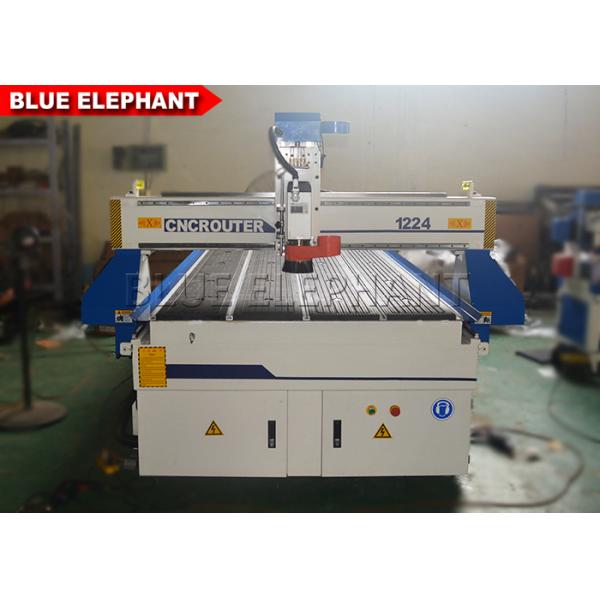

Wood Furniture Small Cnc Router Machines Manual Lubrication System
Wood Furniture Small Cnc Router Machines Manual Lubrication System
Wood Furniture Small Cnc Router Machines Manual Lubrication System
Wood Furniture Small Cnc Router Machines Manual Lubrication System
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1224
Certification :
CE, ISO9001，SGS，CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $4,999 - 9,999 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard marine export plywood case
Voltage :
AC380V/50/60Hz,3PH (Option: 220V)
Dimension(L*W*H) :
1200*2400*200mm
After-sales Service Provided :
Engineers available to service machinery overseas
X,Y,Z Working Area :
1200x2400*200mm
Control system :
DSP A11 control system
Spindle power :
4.5 kw HQD air cooling spindle
Inverter :
5.5kw Fuling Inverter
Table structure :
T-slot&vacuum table
Guide rail :
Hiwin 20# Square Guide Rail
Spindle Speed :
0-18000RPM
Drive motor :
Stepper
Transmission :
Taiwan TBI Ball Screw
Description

ELE 1224 wood furniture cnc router machines , wood carving machine for furniture design

Product Description

Features:

  • 1200x2400x200 working area
  • 4.5 kw HQD air cooling spindle,18000rpm
  • 5.5 kw Fuling inverter
  • DSP A11 control system
  • FL118 stepper motor and YAKO 2608 driver
  • Imported Taiwan HIWIN 20# Square Linear Guide
  • Z axis Original Taiwan TBI ball screw Transmission

  • T-slot&vacuum table

  • Manual Oil Lubrication system
  • Japan Ormon Limit Switch
  • France Schneider safety switch

  • Integrated control box

  • Voltage 380V 3phase 50HZ (option:220v)
  • 1.5kw new type double bag dust collector
  • Plywood case Package
  • Type3/Artcam software
Product details
Wood Furniture Small Cnc Router Machines Manual Lubrication System

Technical Parameters:

Number Description Parameter
1 X,Y,Z Working Area 1200x2400x200mm
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z Repositioning Accuracy ±0.03mm
5 Table Surface T-slot & vacuum Table
6 Spindle 4.5kw HqD air cooling spindle
7 X, Y Structure 20#Taiwan HIWIN Linear guide and helical rack
8 Z Structure Ball screw and#20 Taiwan HIWIN Linear guide
9 Stepper Motor FL118
10 Max. Rapid Travel Rate 45000mm/min
11 Max. Working Speed 30000mm/min
12 Stepper driver YAKO 2608
13 Spindle Speed 0-18000RPM
14 Lubrication system Manual
15 Inverter 5.5kw Fuling Inverter
16 Command Language G Code
17 Control System DSP A11
18 Computer Interface USB
19 Flash Memory 512M(U Disk)
20 Collet ER25
21 X,Y Resolution <0.01mm
22 Software Compatibility Type3 Software, (Option: Artcam Software)
23 Running Environment Temperature 0 - 45 Centigrade
24 Relative Humidity 30% - 75%

Application

Furniture:ideally suitable for mass processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.

Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

Sample show:Wood Furniture Small Cnc Router Machines Manual Lubrication System

Packaging and shipping:

1. Outside Package:Standard export wooden case .

2. Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.

For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
Our Services

Wood Furniture Small Cnc Router Machines Manual Lubrication System

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8. Machine will be adjusted before it is delivered , operation disk/CD was included.

Wood Furniture Small Cnc Router Machines Manual Lubrication System
