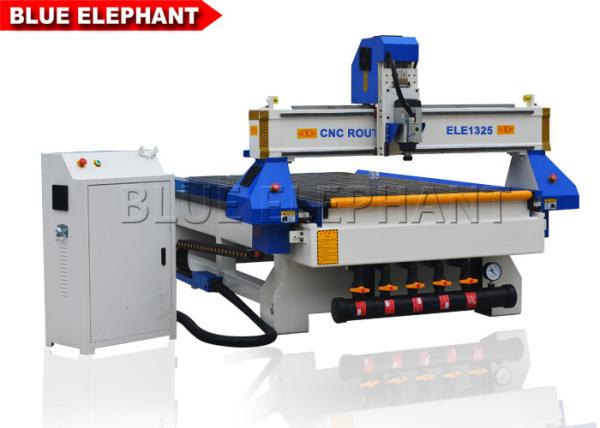

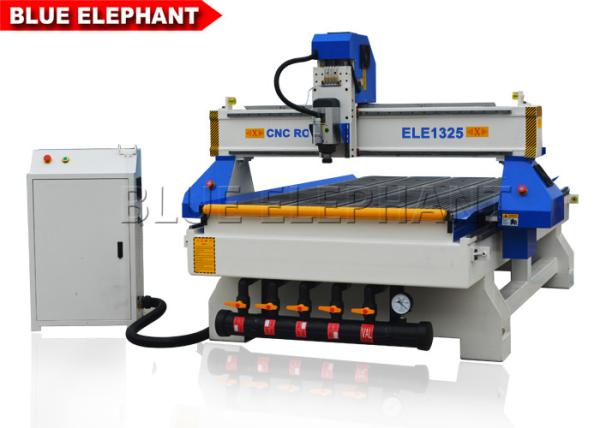

Mdf Door Making CNC Router Machine Wood Machinery For Guitar Welded Structure
Mdf Door Making CNC Router Machine Wood Machinery For Guitar Welded Structure
Mdf Door Making CNC Router Machine Wood Machinery For Guitar Welded Structure
Mdf Door Making CNC Router Machine Wood Machinery For Guitar Welded Structure
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $3,599 - 9,999 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard marine export plywood case
Voltage :
380V/220V,3phase,50/60HZ
Dimension(L*W*H) :
3200*2140*1850mm
After-sales Service Provided :
Engineers available to service machinery overseas
spindle :
Italy 4.5KW air cooling spindle
Inverter :
5.5kw Taiwan DELTA inverter
driver :
Leadshine 860H
motor :
FL118 stepper motor
controll system :
off-line DSP controll with USP port
thansmission :
helical rack and gear and Taiwan HIWIN linear guide
table :
vacuum adsorption table
structure :
Welded structure
Description

Mdf door making machine , router cnc plastic wood machinery for guitar

Product Description

Advantages:

---The roller in front, for easy uploading.

---Taiwan #20 HIWIN linear guide, import from Taiwan, top brand in the world, with long life.

---Adopt Italy HSD air cooling spindle, top brand in the world.

Features:

  • 1300x2500x200 working area
  • 4.5 kw Italy HSD air cooling spindle,18000rpm
  • 5.5 kw Taiwan Delta inverter
  • DSP A11 control system
  • FL118 stepper motor and YAKO 2811 big driver
  • Imported Taiwan HIWIN 20# Square Linear Guide
  • Z axis Original Taiwan TBI ball screw Transmission

  • T-slot and vacuum working table

  • Japan Ormon Limit Switch
  • France Schneider safety switch

  • Seperated control box

  • Voltage 380V 3phase 50HZ (option:220v)
  • Plywood case Package
  • Type3/Artcam software

Main parts:

Mdf Door Making CNC Router Machine Wood Machinery For Guitar Welded Structure

Technical Parameters:

Number Description Parameter
1 X,Y,Z Working Area 2000x3000x200mm
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z Repositioning Accuracy ±0.03mm
5 Table Surface T-slot Table
6 Spindle 4.5kw HSD air cooling spindle
7 X, Y Structure 20#Taiwan HIWIN Linear guide and helical rack
8 Z Structure Ball screw and#20 Taiwan HIWIN Linear guide
9 Stepper Motor FL118
10 Max. Rapid Travel Rate 45000mm/min
11 Max. Working Speed 30000mm/min
12 Stepper driver YAKO 2811 Driver
13 Spindle Speed 0-18000RPM
14 Lubrication system Manual or auto
15 Inverter 5.5kw Taiwan Delta Inverter
16 Command Language G Code
17 Control System DSP A11
18 Computer Interface USB
19 Flash Memory 512M(U Disk)
20 Collet ER25
21 X,Y Resolution <0.01mm
22 Software Compatibility Type3 Software, (Option: Artcam Software)
23 Running Environment Temperature 0 - 45 Centigrade
24 Relative Humidity 30% - 75%

Applications:

1. Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.

Packaging and shipping:

1. Outside Package:Standard export wooden case .

2. Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.

For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

Mdf Door Making CNC Router Machine Wood Machinery For Guitar Welded Structure
