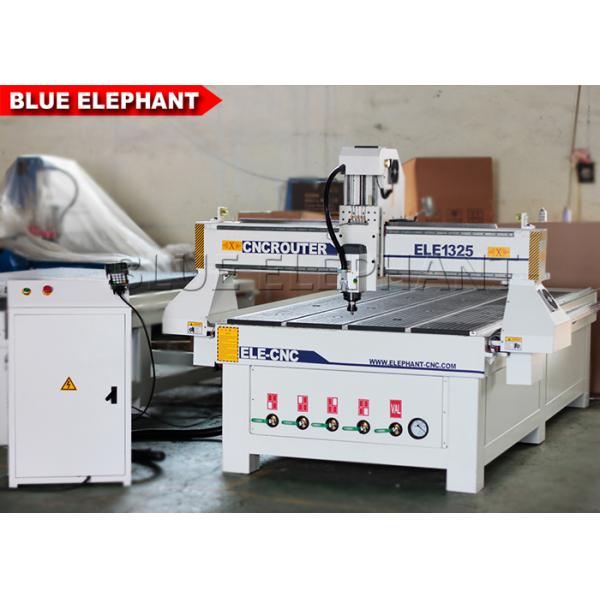

Mdf / Pvc / Arylic / Pcb CNC Router Machine Fast Working Speed Frame Structure
Mdf / Pvc / Arylic / Pcb CNC Router Machine Fast Working Speed Frame Structure
Mdf / Pvc / Arylic / Pcb CNC Router Machine Fast Working Speed Frame Structure
Mdf / Pvc / Arylic / Pcb CNC Router Machine Fast Working Speed Frame Structure
Mdf / Pvc / Arylic / Pcb CNC Router Machine Fast Working Speed Frame Structure
Mdf / Pvc / Arylic / Pcb CNC Router Machine Fast Working Speed Frame Structure
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO9001，SGS，CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $3,599 - 6,999 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per
Delivery Time :
10-15 working days
Packaging Details :
Standard marine export plywood case
Voltage: :
380V, 3PH, 50/60HZ (optional: 220V)
Dimension(L*W*H): :
3200*2140*1850mm
Inverter: :
5.5kw Taiwan Delta Inverter
Spindle power: :
4.5kw
Spindle: :
Italy HSD air cooling Spindle
Spindle speed: :
0-18000RPM
Motor: :
FL118 stepper motor
Driver: :
YAKO2608 Big Driver or Leadshine 860H driver
Control system: :
DSP Control System
Description

4x8ft Chinese cheap cnc router , cnc mould die engraving machine , cnc machine 1325 for wood pcb mdf pvc arylic

Features of cnc router 1325:

  • working area -1300*2500*200mm
  • 4.5kw Italy HSD air cooling spindle
  • Adopt FL118 stepper motor and YAKO 2608 big driver (or Leadshine 860H driver)
  • 5.5kw Taiwan DELTA inverter
  • T-slot & vacuum table, with very powerful absorbing power, can absorb materials of different sizes.
  • DSP control system
  • With fast working speed, high working efficiency, the engraving speed can be up to 14m/min. The engraving is precise enough, without any Sawtooth ripple, and the cutting edge is quite clear and smooth.

Parameters of cnc router 1325:

Descriptions Parameters
Modle 1325
Working area 1300*2500*200mm
Control system DSP control system
Spindle 4.5kw Italy HSD air cooling spindle
Motor FL118 stepper motor
Driver YAKO 2608 driver or Leadshine 860H driver
Inverter 5.5kw Taiwan DELTA inverter
X,Y transmission X,Y axis helical rack and pinion drive
Z transmission Z axis Taiwan TBI ball screw
Max Travelling speed 40000mm/min
Max Working speed 25000mm/min
Table Surface Vacuum and T-slot working table
Structure Frame structure

PS:All the working area and specifications can be customized according to your requests.

Machine details
Mdf / Pvc / Arylic / Pcb CNC Router Machine Fast Working Speed Frame Structure

Application
  • Furniture industry: folding screen, wave board, big wall hanging, advertising sheet, sign making.
  • Crafts industry: can be used for most materials like Artificial stone, wood, bamboo, marble, Organic board, Color plates, to do engraving of beautiful patterns and characters.
  • wood, acrylic, PVC, PCB, foam, aluminum, copper and so on.

Our service:

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

Mdf / Pvc / Arylic / Pcb CNC Router Machine Fast Working Speed Frame Structure
Mdf / Pvc / Arylic / Pcb CNC Router Machine Fast Working Speed Frame Structure
