ELE 2140 China atc cnc router with high quality control system SYNTEC 6MB for 3d wood engraving
ELE 2140 China atc cnc router with high quality control system SYNTEC 6MB for 3d wood engraving
ELE 2140 China atc cnc router with high quality control system SYNTEC 6MB for 3d wood engraving
ELE 2140 China atc cnc router with high quality control system SYNTEC 6MB for 3d wood engraving
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE2140
Certification :
CE, ISO9001，SGS，CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $15,999 - 25,999 / Set
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram, T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
15-20 working days
Packaging Details :
Standard marine export plywood case
Voltage: :
380V, 3ph, 50Hz
Dimension(L*W*H): :
5200*2400*1850mm
Control system: :
Taiwan SYNTEC 6MB control system
Spindle: :
9kw Italy HSD ATC air cooling spindle
Spindle speed: :
0-24000RMP
Inverter: :
11kw Taiwan DELTA inverter
Motor and Driver: :
Japan YASKAWA motor and driver
Description

ELE 2140 atc cnc cabinet processing machine with 9kw hsd air cooling automatic tool change spindle

Features of 2140 atc cnc machine:

High-performance machine with extraordinary value, but at a very economical price. With linear tool changer, constructed with world-class components, consistent high performance.

Featuring Italian high frequency air-cooling electronic spindle and world-class servo motor and driving system.

Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.

Parameters of 2140 atc cnc machine

Descriptions Parameters
Modle ELE2140ATC
Working area 2100*4000*200mm
Voltage 380V, 3ph, 50Hz
Control system Taiwan SYNTEC 6MB control system
Spindle 9kw Italy HSD ATC air cooling spindle
Spindle speed 0-24000RPM
Inverter 11kw Taiwan DELTA inverter
Motor and Driver Japan YASKAWA motor and driver
Linear rail Taiwan #25 HIWIN linear guide
Dust collector 1.5kw new type dust collector, 380V, 3ph, 50Hz
Cylinder Position cylinder * 6
Table surface T-slot and vacuum working table
Vacuum pump 7.5kw water circulation vacuum pump, 380V, 3ph, 50Hz
Table structure New type thicker and bigger heavy duty welded frame and gantry
X,Y axis transmission X,Y axis rack and pinion drive
Z axis transmission Z axis Taiwan TBI ball screw
Auto tool changer magazine Linear
Tool slots 8

PS:All the working area and specifications can be customized according to your requests.

Product Details

Product Details:

ELE 2140 China atc cnc router with high quality control system SYNTEC 6MB for 3d wood engraving

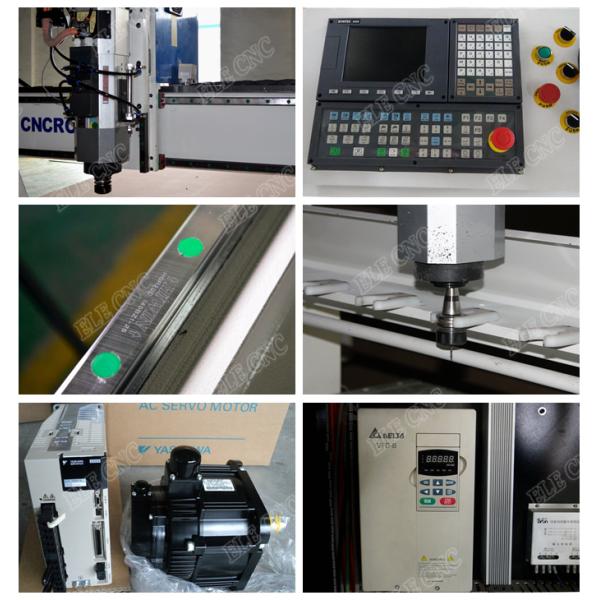

Advantages of the parts of 2140 atc cnc machine:

Machine parts Advantages
2100*4000*200mm working area Steel gantry, big and thick square tube, heavy structure for wood, acrylic, hard PVC, aluminum, stone.
Linear ATC Tool Storage 8 positions of tools
9KW Italy HSD ATC air cooling spindle Originally imported from Italy, best brand, has after-sale service all over the world.
11KW Imported Taiwan DELTA inverter Best quality in china, More stable performance.
Taiwan SYNTEC control system with the MPG model : 6MB Famous brand in the world,very easy to operate on the control panel.
850w Japan YASKAWA servo 4 sets in total, double motors for Y axis, famous brand in servo system, Z axis is with band brake, very powerful in use.

Taiwan HIWIN #25

linear guide way for X,Y,Z axis

 Famous brand, can improve high precision, smooth transmission, fast speed, low noise, and it has 10 times longer life than common rail way.
Helical rack gears for X,Y axis 1.25M, big loading capacity, very powerful for machine, long lifetime.
Taiwan/Germany ball screw for Z axis Accurate precision, smooth transmission.
Vacuum and T-slot table

Double-use type:

vacuum table can use big power to absorb big material like wood door, very convenient; T-slot table can help fix small materials by clamps
Heat treatment structure Heat-treatment can improve the hardness, strength, so that heat-treated structure to improve life
France Schneider safety switch It is on the control cabinet, once you open it, the machine electricity will be off.
MPG Hand wheel On the control cabinet, can control movement of X, Y, Z axis, very convenient.
Manual lubrication system Help lubricate the rail way, maintaining machine.
Automatic tool sensor calibration Help find working home position.
Japan OMRON limit switch for X,Y,Z axis Help each axis go back to working home position.
Soft limit switch Help protect machine axis.
Highly flexible towline,fire-resistant double-sheathed Shanghai Cardiff cable Could be bent 300000 times, very long lifetime. Also can prevent the interference of static electricity.
Type 3 or Artcam software Professional software for 3 axis work.

Application


Fruniture: Ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Well-suited for processing panel. insulating materials, plastic, epoxy resin, carbon mixed compound, etc.

Packaging & Delivery:


Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
